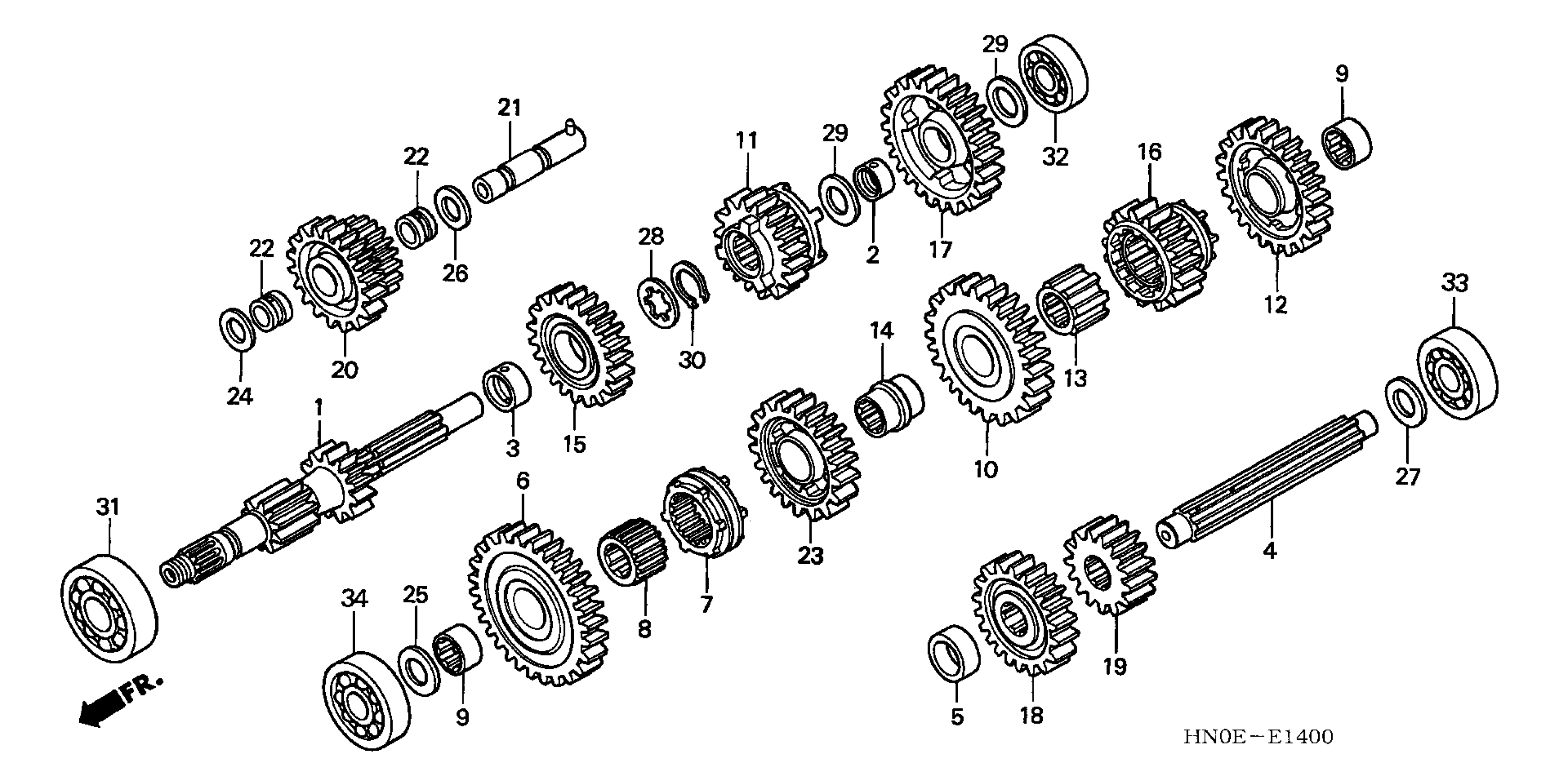

Honda TRX450FEA (03) FOURTRAX FOREMAN ES, USA, VIN# 478TE224-34400001 TO 478TE224-34499999 TRANSMISSION (TRX450FE) Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (12T/18T)

23211-HN0-670

Unavailable

2

BUSH (17MM)

23212-HA0-000

Unavailable

3

BUSH A (22MM)

23214-HA0-000

$15.51

4

COUNTERSHAFT

23220-HM7-000

Unavailable

5

COLLAR, COUNTERSHAFT

23224-HC4-000

Unavailable

6

GEAR, COUNTERSHAFT FIRST (49T)

23411-HN0-770

Unavailable

7

SHIFTER, REVERSE COUNTERSHAFT LOW GEAR

23412-HN0-770

Unavailable

8

COLLAR, SPLINE

23413-HA7-670

Unavailable

9

BUSH, SPLINE (25MM)

23414-HA0-000

$22.00

10

GEAR, COUNTERSHAFT SECOND (43T)

23431-HN0-770

Unavailable

11

GEAR, MAINSHAFT THIRD (23T)

23441-HN0-770

Unavailable

12

GEAR, COUNTERSHAFT THIRD (37T) This part replaces 23451-HN0-770.

23451-HN0-A10

Unavailable

13

COLLAR, COUNTERSHAFT FOURTH SPLINE

23453-HN0-A10

Unavailable

14

BUSH A, SPLINE (25MM)

23454-HA0-000

$30.47

15

GEAR, MAINSHAFT FOURTH (28T)

23461-HN0-770

Unavailable

16

GEAR, COUNTERSHAFT FOURTH (33T) This part replaces 23471-HN0-770.

23471-HN0-A10

Unavailable

17

GEAR, MAINSHAFT FIFTH (33T)

23481-HN0-770

Unavailable

18

GEAR, COUNTERSHAFT FIFTH (28T)

23491-HN0-670

$42.87

19

GEAR, FINAL DRIVE (20T)

23621-HN0-670

$104.23

20

GEAR, REVERSE IDLE

23720-HM7-000

$176.14

21

SHAFT, REVERSE IDLE

23730-HC4-000

Unavailable

22

BUSH, REVERSE IDLE GEAR

23732-HA0-000

Unavailable

23

GEAR, COUNTERSHAFT REVERSE (27T)

23751-HN0-770

Unavailable

24

WASHER, THRUST (14MM)

90402-HA0-000

$3.51

25

WASHER, THRUST (20MM)

90403-HA7-670

$6.30

26

WASHER, PLAIN (14MM)

90412-HA0-000

$8.51

27

WASHER, SPECIAL (20MM)

90451-HM7-000

$3.80

28

WASHER, SPLINE (22MM)

90451-KY1-000

$3.83

29

WASHER, THRUST (17MM) This part replaces 90452-HC4-000.

90452-178-000

$3.89

29

WASHER, THRUST (17MM)

90452-178-000

$3.89

30

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.43

31

BEARING, BALL (62/22) (NACHI) This part replaces 91002-PL0-008.

91002-PL0-018

$28.25

31

BEARING, BALL (62/22) (NACHI)

91002-PL0-018

$28.25

31

BEARING, BALL (62/22) (NACHI) This part replaces 91005-657-008.

91002-PL0-018

$28.25

32

BEARING, RADIAL BALL (6203U SPL.)

91006-HN2-003

$11.41

33

BEARING, RADIAL BALL (6204U SPL.) (KOYO)

91011-HN2-004

$15.55

34

BEARING, RADIAL BALL (6204)

96100-62040-00

$10.98
