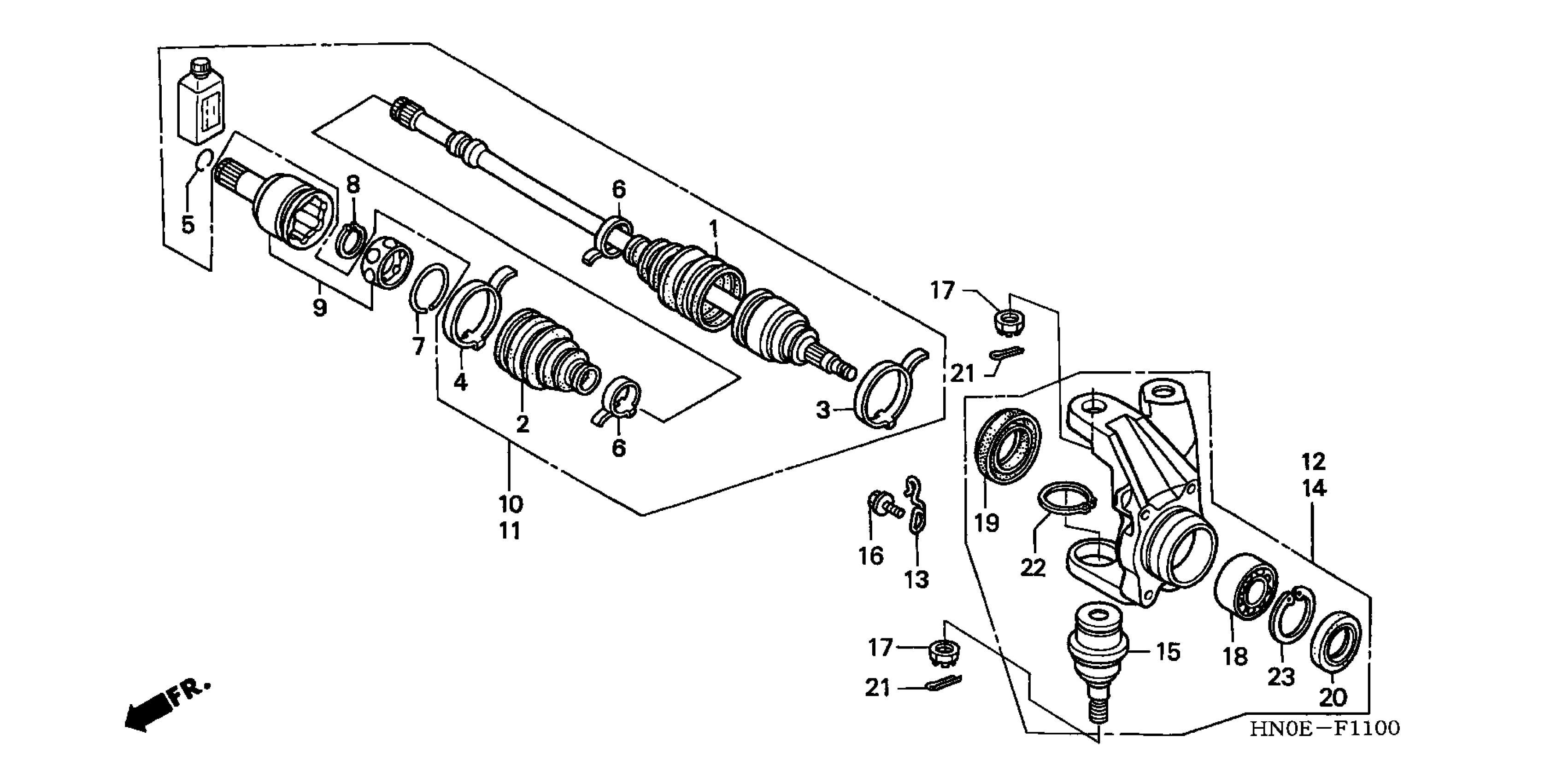

Honda TRX450FEA (03) FOURTRAX FOREMAN ES, USA, VIN# 478TE224-34400001 TO 478TE224-34499999 KNUCKLE Diagram

Description

Price

BOOT, OUTBOARD

42202-HC5-003

$30.40

BOOT, INBOARD

42203-HM7-003

$30.20

BAND A

42204-HC5-003

$11.53

BAND B

42205-HM7-003

$7.11

RING, SNAP

42206-HA7-671

$1.49

BAND C

42206-HC5-003

$7.68

RING, SNAP

42206-HM7-003

$1.49

CIRCLIP

42209-HC5-003

$1.49

JOINT, INBOARD

42220-HN0-A01

Unavailable

SHAFT, R.

42250-HN0-671

$269.67

SHAFT, L.

42350-HN0-671

$269.67

KNUCKLE ASSY., R.

51200-HN0-670

$275.05

CLAMP, FR. BRAKE BREATHER

51203-HM7-A00

$30.75

KNUCKLE ASSY., L.

51250-HN0-670

$254.34

JOINT A, ARM BALL This part replaces 51355-HN0-A01.

51375-HP5-601

$20.53

JOINT A, ARM BALL

51375-HP5-601

$20.53

BOLT, FLANGE (8X12)

90190-MG3-000

$3.58

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

BEARING, ANGULAR BALL (30X54X24)

91051-HA7-651

$53.66

DUST SEAL (40X58X7)

91209-HN2-003

$12.18

DUST SEAL (38X55X6) (ARAI)

91256-HM7-003

$11.87

PIN, SPLIT (3.0X18)

94201-30180

$1.49

CIRCLIP (OUTER) (34MM)

94514-34000

$1.85

CIRCLIP (INNER) (55MM)

94520-55000

$2.92
