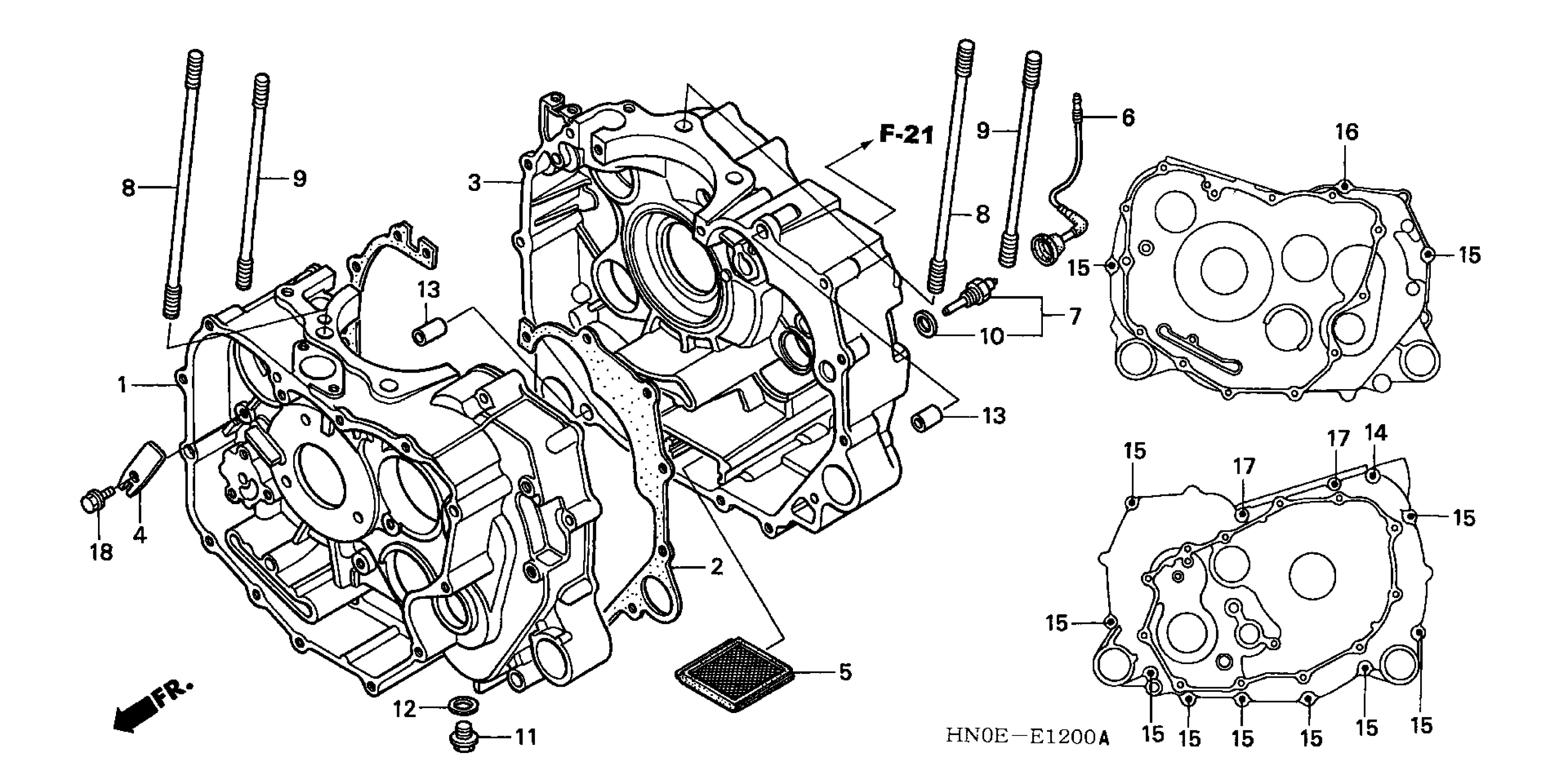

Honda TRX450FEA (03) FOURTRAX FOREMAN ES, USA, VIN# 478TE224-34400001 TO 478TE224-34499999 CRANKCASE Diagram

CRANKCASE, FR.

11100-HM7-000

$429.90

GASKET, CRANKCASE

11191-HM7-000

Unavailable

CRANKCASE, RR.

11200-HM7-000

$429.90

PLATE, CAM FIXING

14115-HM7-000

$8.04

SCREEN, OIL FILTER This part replaces 15421-HC4-005.

15421-HR3-A40

$11.99

SUB-WIRE, THERMO SENSOR

32850-HM7-000

$15.31

SENSOR ASSY., THERMOSTAT OIL (TOYO)

37750-HC4-751

$62.59

BOLT, STUD (10X206)

90031-HM7-000

Unavailable

BOLT, STUD (10X180)

90032-HM7-000

Unavailable

WASHER, SEALING

90401-HA8-000

$3.81

WASHER, SEALING This part replaces 90401-HC4-750.

90401-HA8-000

$3.81

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.80

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

BOLT, FLANGE (6X75)

95701-06075-00

$2.30

BOLT, FLANGE (8X16)

95701-08016-00

$1.80
