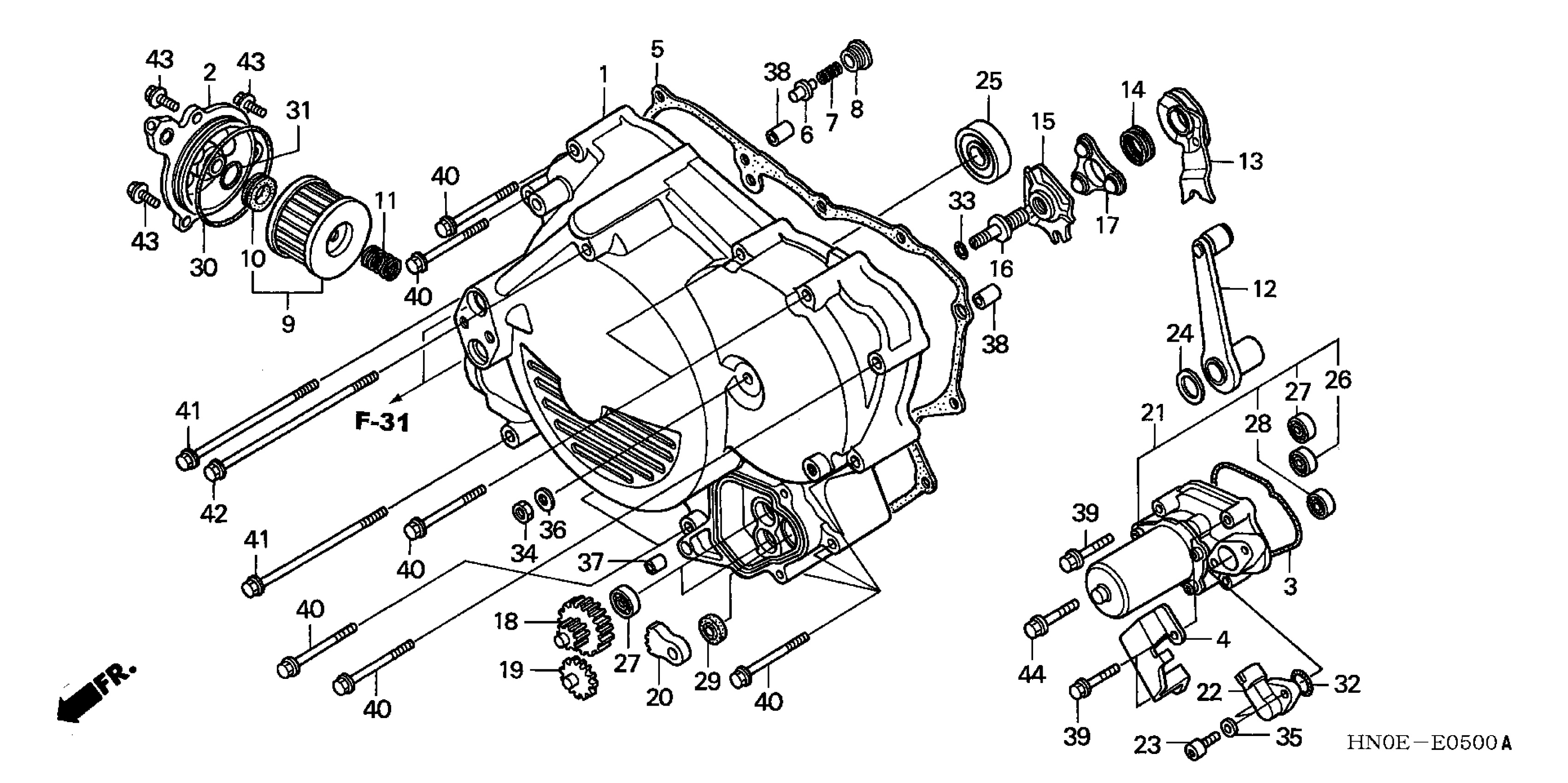

Honda TRX450FEA (02) FOURTRAX FOREMAN ES, USA, VIN# 478TE224-24300001 TO 478TE224-24399999 FRONT CRANKCASE COVER (TRX450FE) Diagram

#

Description
Price

1

COVER, FR. CRANKCASE

11330-HN0-770

Unavailable

2

COVER, OIL FILTER

11333-HC4-000

Unavailable

3

O-RING

11336-HN0-A10

$8.77

4

PROTECTOR, ANGLE SENSOR

11339-HN0-770

$9.44

5

GASKET, FR. CRANKCASE COVER

11394-HM7-003

$27.00

6

VALVE, RELIEF

15231-HM3-670

$12.43

7

SPRING, RELIEF VALVE

15232-HM3-670

$1.93

8

CAP, RELIEF VALVE

15235-HM3-670

$21.69

9

ELEMENT, OIL FILTER

15412-HM5-A10

$5.50

10

RUBBER, FILTER

15413-MC8-000

$3.35

11

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

12

LEVER, CLUTCH

22810-HM7-700

$87.24

13

PLATE, CLUTCH CAM

22820-HM7-010

Unavailable

14

SPRING, CAM PLATE SIDE

22825-HN0-671

$3.73

15

PLATE, CLUTCH LIFTER

22830-HC4-000

Unavailable

16

BOLT, CLUTCH ADJUSTING

22841-HC4-000

$7.95

17

RETAINER, BALL

22860-HB3-000

$7.81

18

GEAR, REDUCTION (40T/12T)

24616-HN0-771

$18.28

19

GEAR, REDUCTION (41T/10T)

24615-HN0-771

$16.62

20

GEAR, REDUCTION (7/43T)

24617-HN0-771

$8.13

21

MOTOR ASSY., CONTROL

31300-HN0-A12

$281.41

22

SENSOR ASSY., ANGLE

38800-HR3-A21

$27.06

23

BOLT, SOCKET (5X20)

90116-KCY-671

$5.80

24

WASHER (10X21.5)

90413-GE0-000

$3.90

25

BEARING, RADIAL BALL (6303SP)

91009-HA0-004

$39.30

26

BEARING, RADIAL BALL (696ZZ)

91050-HN0-A11

$10.62

27

BEARING, RADIAL BALL (626ZZ)

91060-HN0-A11

$10.91

28

BEARING, RADIAL BALL (698ZZ)

91070-HN0-A11

$11.15

29

OIL SEAL (10X20X5) (ARAI) This part replaces 91201-KM1-005.

91202-HC0-003

$3.54

29

OIL SEAL (10X20X5) (ARAI)

91202-HC0-003

$3.54

30

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

31

O-RING (11X1.9) (NOK) O-RING (1.9X11)

91303-HA0-004

$2.13

32

O-RING, ANGLE SENSOR

91308-HN0-A10

$2.72

33

O-RING (8.2X1.5)

91308-MC7-000

$2.31

34

NUT, HEX. (8MM)

94030-08000

$1.49

35

WASHER, PLAIN (5MM)

94101-05800

$1.49

36

WASHER, PLAIN (8MM)

94102-08800

$1.49

37

PIN A, DOWEL (8X10)

94301-08100

$2.25

38

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

39

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

40

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

41

BOLT, FLANGE (6X85) (Honda Code 2545317)

95701-06085-00

$1.64

42

BOLT, FLANGE (6X100)

95701-06100-00

$2.79

43

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

44

BOLT, FLANGE (6X45)

96001-06045-00

$1.95
