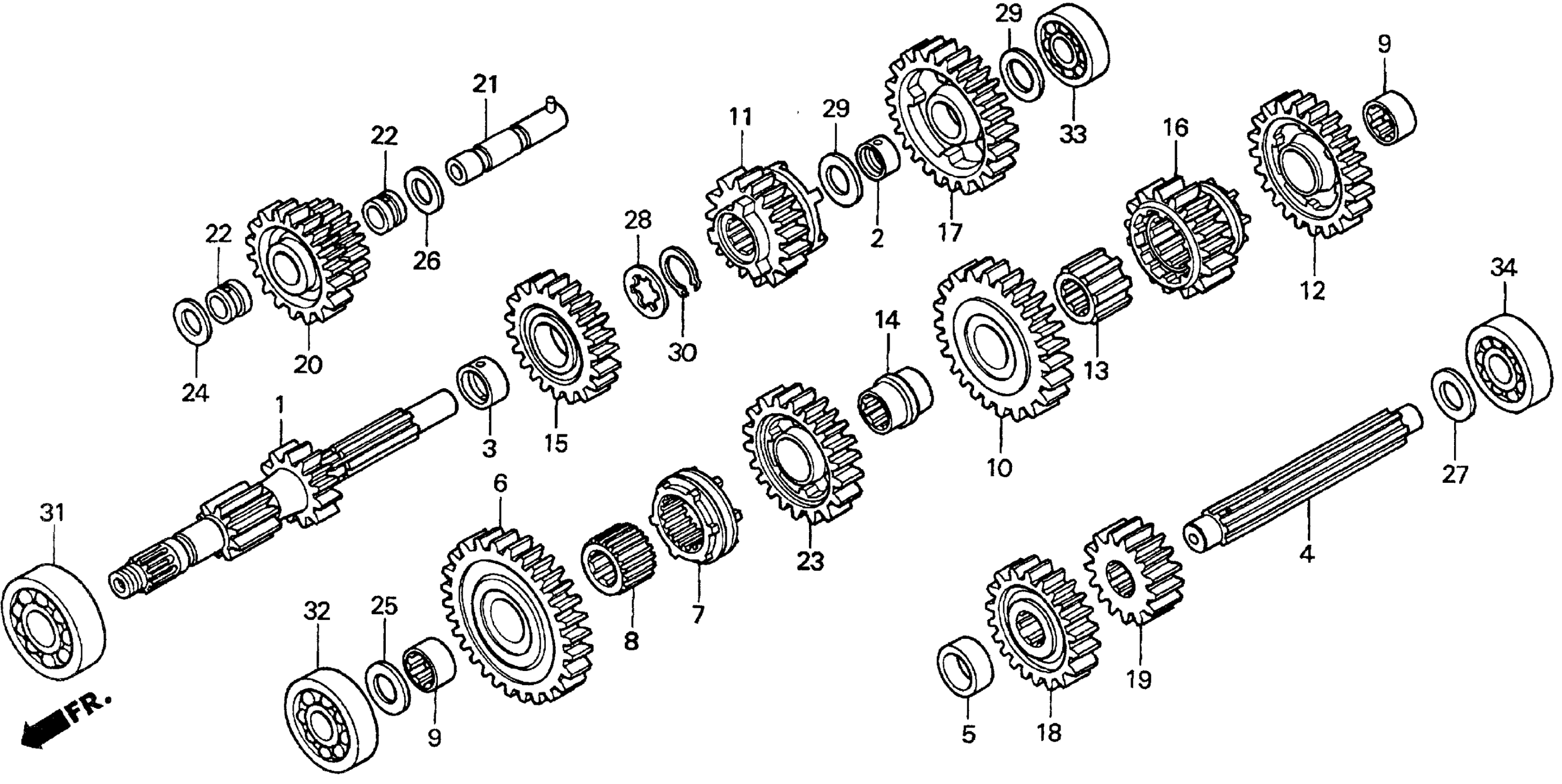

Honda TRX450ESA (98) FOURTRAX FOREMAN ES, USA, VIN# 478TE224-WA000001 450ES TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (12T/18T) This part replaces 23211-HN0-A10.

23211-HN0-A11

Unavailable

1

MAINSHAFT, TRANSMISSION (12T/18T)

23211-HN0-A11

Unavailable

2

BUSH (17MM)

23212-HA0-000

Unavailable

3

BUSH A (22MM)

23214-HA0-000

$17.03

4

COUNTERSHAFT

23220-HM7-000

Unavailable

5

COLLAR, COUNTERSHAFT

23224-HC4-000

Unavailable

6

GEAR, COUNTERSHAFT FIRST (49T)

23411-HN0-A10

Unavailable

7

SHIFTER, REVERSE COUNTERSHAFT LOW GEAR

23412-HN0-A10

Unavailable

8

COLLAR, SPLINE

23413-HA7-670

Unavailable

9

BUSH, SPLINE (25MM)

23414-HA0-000

$22.78

10

GEAR, COUNTERSHAFT SECOND (43T)

23431-HN0-A10

Unavailable

11

GEAR, MAINSHAFT THIRD (23T)

23441-HN0-A10

Unavailable

12

GEAR, COUNTERSHAFT THIRD (37T)

23451-HN0-A10

Unavailable

13

COLLAR, COUNTERSHAFT FOURTH SPLINE

23453-HN0-A10

Unavailable

14

BUSH A, SPLINE (25MM)

23454-HA0-000

$34.18

15

GEAR, MAINSHAFT FOURTH (28T)

23461-HN0-A10

Unavailable

16

GEAR, COUNTERSHAFT FOURTH (33T)

23471-HN0-A10

Unavailable

17

GEAR, MAINSHAFT FIFTH (33T)

23481-HN0-A10

Unavailable

18

GEAR, COUNTERSHAFT FIFTH (28T)

23491-HC4-000

Unavailable

19

GEAR, FINAL DRIVE (20T)

23621-HM7-000

$50.06

20

GEAR, REVERSE IDLE

23720-HM7-000

$199.25

21

SHAFT, REVERSE IDLE

23730-HC4-000

Unavailable

22

BUSH, REVERSE IDLE GEAR

23732-HA0-000

Unavailable

23

GEAR, COUNTERSHAFT REVERSE (27T)

23751-HN0-A10

Unavailable

24

WASHER, THRUST (14MM)

90402-HA0-000

$3.76

25

WASHER, THRUST (20MM)

90403-HA7-670

$6.92

26

WASHER, PLAIN (14MM)

90412-HA0-000

$9.34

27

WASHER, SPECIAL (20MM)

90451-HM7-000

$4.16

28

WASHER, SPLINE (22MM)

90451-KY1-000

$4.20

29

WASHER, THRUST (17MM) This part replaces 90452-HC4-000.

90452-178-000

$4.17

29

WASHER, THRUST (17MM)

90452-178-000

$4.17

30

CIRCLIP (22MM)

90601-329-000

$2.67

31

BEARING, BALL (62/22) (NACHI) This part replaces 91002-PL0-008.

91002-PL0-018

$31.46

31

BEARING, BALL (62/22) (NACHI)

91002-PL0-018

$31.46

31

BEARING, BALL (62/22) (NACHI) This part replaces 91005-657-008.

91002-PL0-018

$31.46

32

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

33

BEARING, RADIAL BALL (6203U)

96140-62030-00

$18.59

34

BEARING, RADIAL BALL (6204U)

96140-62040-00

$24.63
