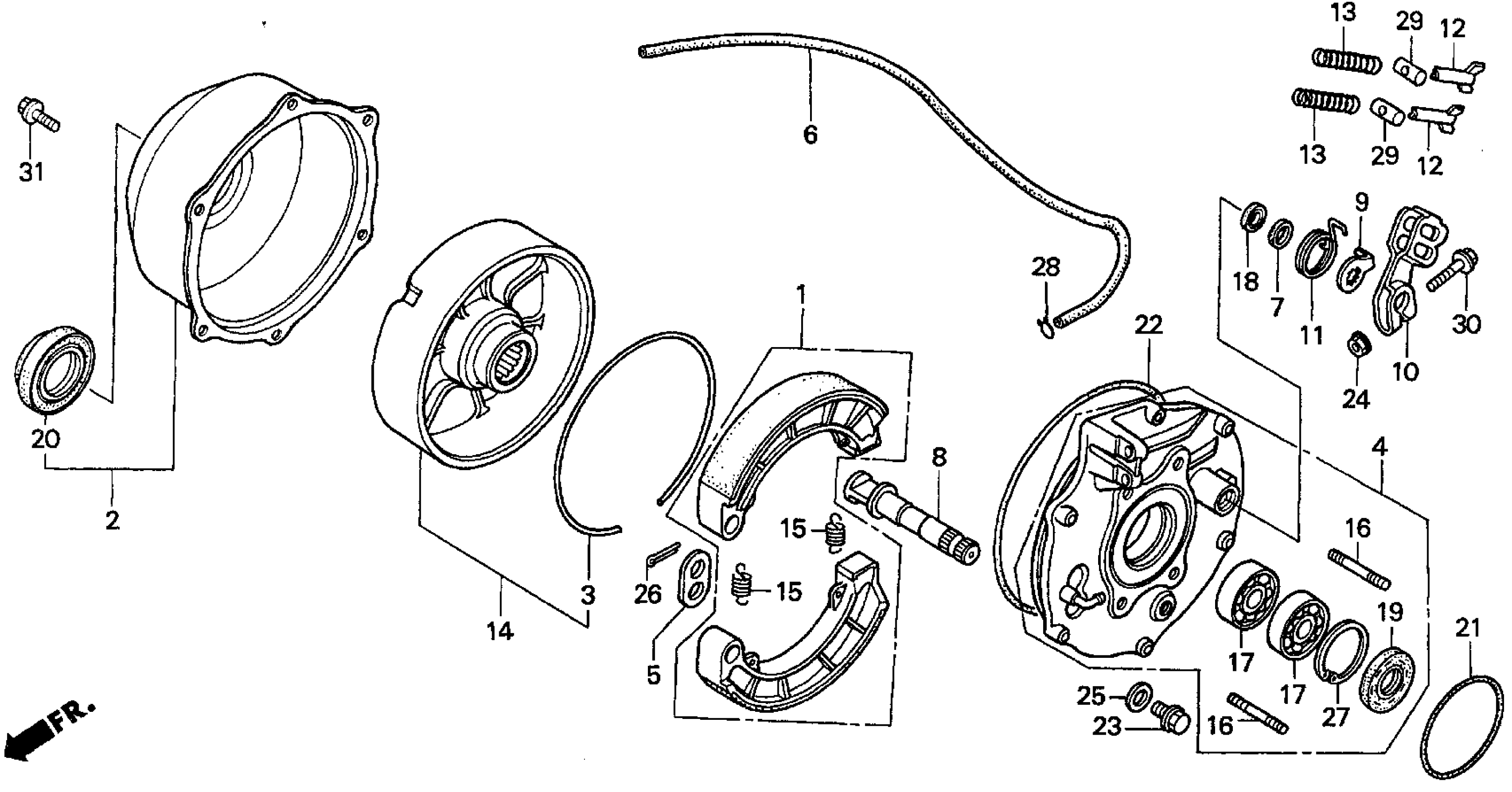

Honda TRX450ESA (01) FOURTRAX FOREMAN ES, USA, VIN# 478TE224-14200001 REAR BRAKE Diagram

SHOE SET, BRAKE (ASK)

06430-HN0-A20

$45.79

SHOE SET, BRAKE (JB)

06430-HN0-A30

$58.11

COVER ASSY., DRUM

40520-HM7-610

Unavailable

RING, DAMPER

42624-HC4-000

$26.21

PANEL SET, RR. BRAKE

43010-HM7-A00

Unavailable

WASHER, ANCHOR PIN

43102-319-000

$6.21

TUBE, BREATHER (3.5X1750)

43132-HM7-000

$7.16

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

CAM, RR. BRAKE

43141-HA7-670

$35.51

INDICATOR, BRAKE

43145-HA7-670

$5.64

ARM, RR. BRAKE

43410-HM7-000

$32.30

SPRING, RR. BRAKE ARM

43415-HM7-000

$7.19

NUT, BRAKE ADJUSTING

43459-HM5-A10

$9.78

SPRING, RR. BRAKE ROD (NA USE ALT:95014-73100)

43467-HA0-000

Unavailable

DRUM ASSY., RR. BRAKE

43620-HN0-A00

$296.66

SPRING, FR. BRAKE SHOE

45133-329-000

$2.75

BOLT, STUD (10X25)

90151-HA7-670

$6.22

BEARING, RADIAL BALL (28X58X16)

91057-HA0-681

$25.73

BEARING, RADIAL BALL (28X58X16) This part replaces 91057-HA8-004.

91057-HA0-681

$25.73

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

OIL SEAL (34X58X6) (ARAI)

91252-HM7-003

$14.84

DUST SEAL (41X76X19) (ARAI)

91253-HM7-003

$17.94

O-RING (75X3.2) (NOK)

91320-HM7-702

$2.83

O-RING (181X3.1) (ARAI)

91355-HC4-003

$15.99

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

NUT, FLANGE (8MM)

94050-08000

$1.49

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, SPLIT (2.5X30)

94201-25300

$1.49

CIRCLIP (INNER) (58MM)

94520-58000

$3.13

CLIP, TUBE (C6.5)

95002-35000

$1.49

JOINT B, BRAKE ARM

95015-32001

$1.49

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
