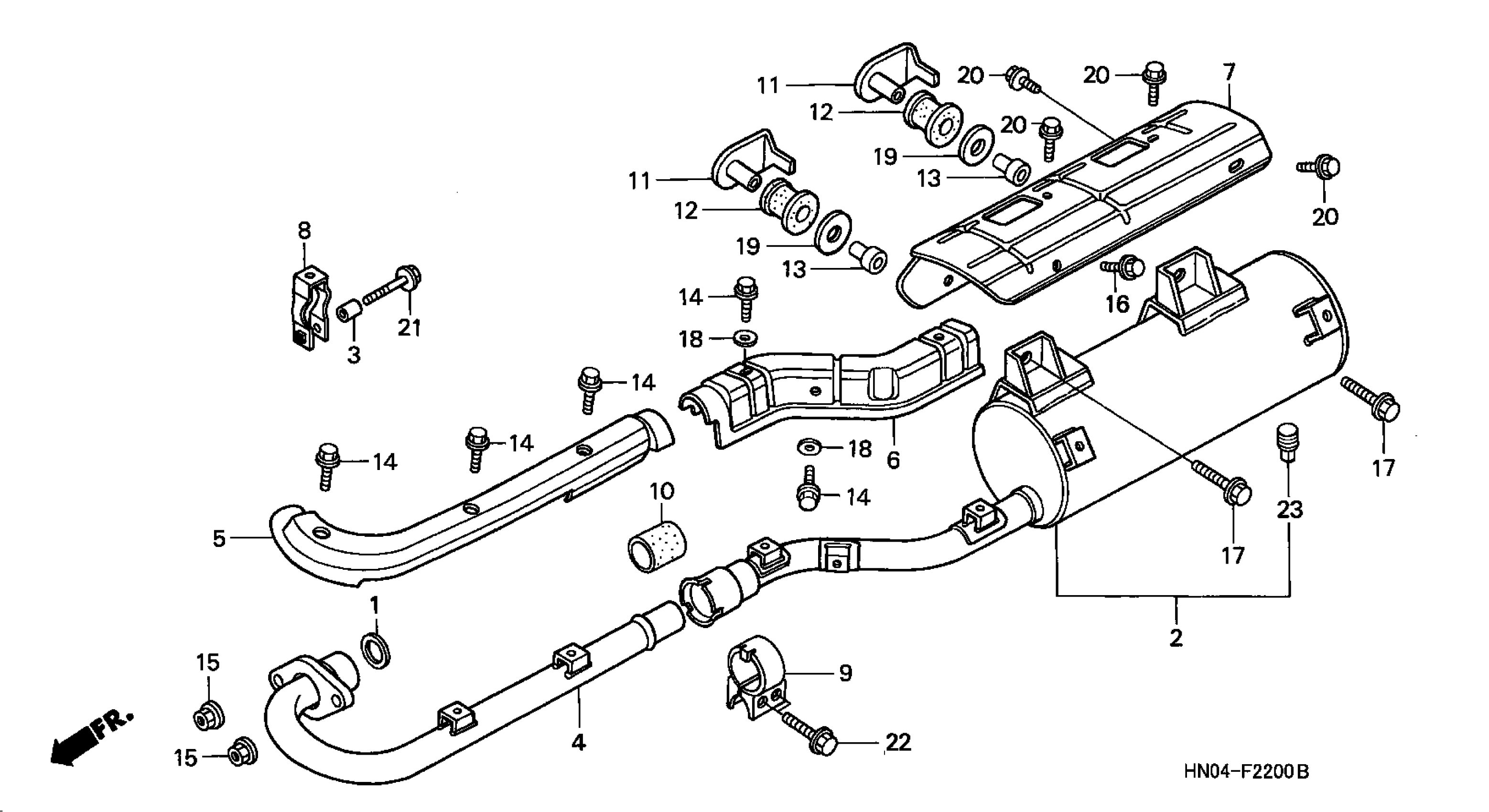

Honda TRX450ESA (01) FOURTRAX FOREMAN ES, USA, VIN# 478TE224-14200001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MN4-920

$4.94

2

MUFFLER This part replaces 18310-HN0-U00.

18310-HN0-670

Unavailable

2

MUFFLER

18310-HN0-670

Unavailable

3

COLLAR, MUFFLER BAND

18318-HM7-A00

Unavailable

4

PIPE, EX.

18320-HM7-A00

$84.54

4

PIPE, EX. This part replaces 18320-HN0-670.

18320-HM7-A00

$84.54

5

COVER, EX. PIPE

18321-HM7-000

$280.22

6

PROTECTOR, HEAT

18322-HN0-A00

$222.88

7

GUARD, HEAT

18323-HN0-A00

$85.71

8

BAND, PROTECTOR

18372-HN0-A00

Unavailable

9

BAND, MUFFLER

18373-HA7-671

$18.68

10

GASKET, MUFFLER

18391-HM7-A00

$11.03

11

NUT, MOUNTING RUBBER

50607-HM7-700

Unavailable

12

RUBBER, MUFFLER MOUNTING

50608-HM7-000

$4.48

13

COLLAR, MUFFLER

50609-HN0-A00

Unavailable

14

BOLT, FLANGE (6X10)

90011-HN0-A00

$1.16

15

NUT, FLANGE (8MM)

90301-HM8-000

$2.46

16

BOLT-WASHER (6X12)

93404-06012-00

$1.48

17

BOLT-WASHER (8X40)

93404-08040-08

$2.10

18

WASHER, PLAIN (6MM)

94103-06700

$0.65

19

WASHER, PLAIN (12MM)

94103-12800

$1.19

20

BOLT, FLANGE (6X8)

95701-06008-00

$3.06

21

BOLT, FLANGE (6X40)

95701-06040-08

$1.67

22

BOLT, FLANGE (8X35)

95701-08035-08

$1.28

23

BOLT, ARRESTER

90183-HM5-850

$2.28
