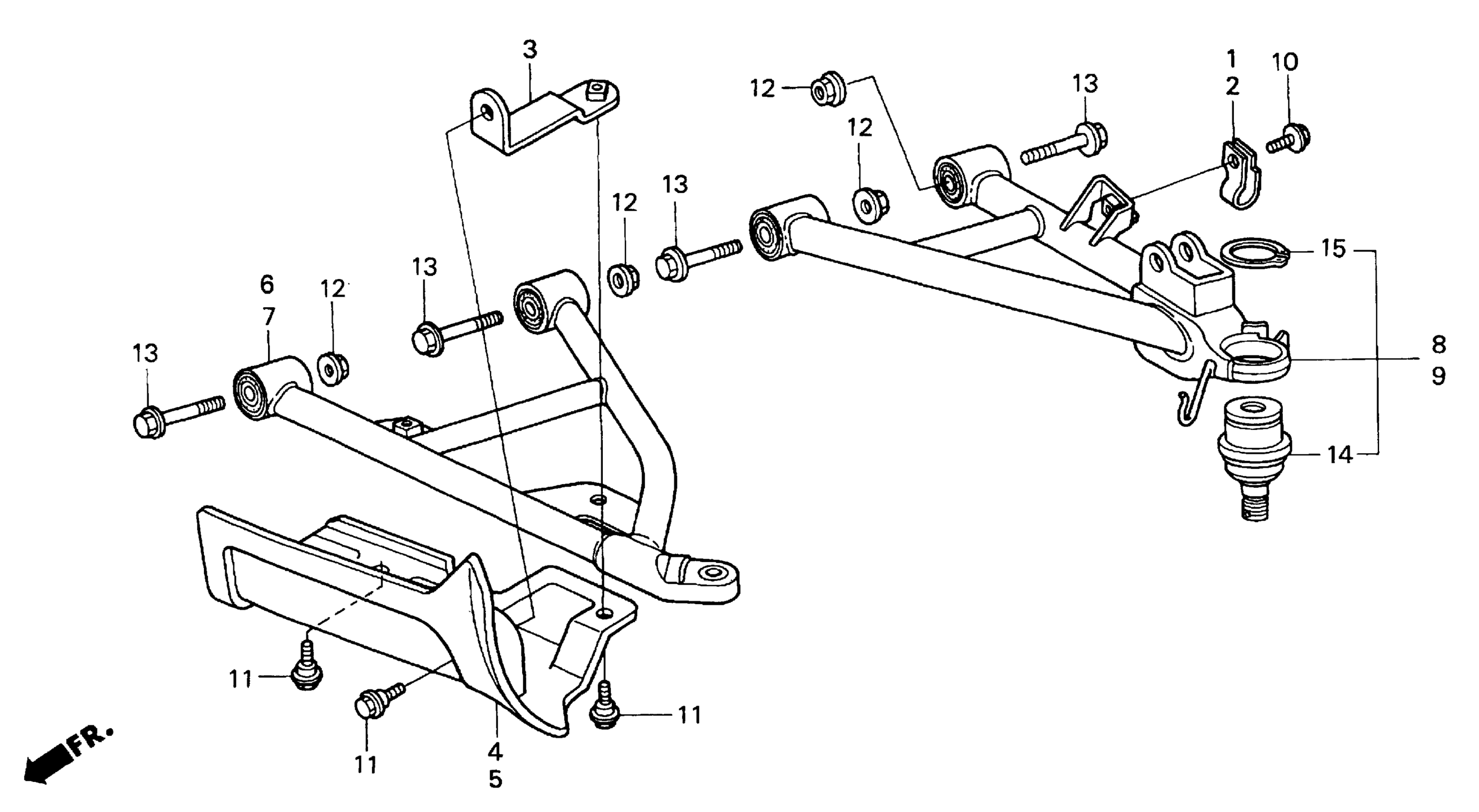

Honda TRX450ESA (01) FOURTRAX FOREMAN ES, USA, VIN# 478TE224-14200001 FRONT ARM Diagram

CLAMP C, R. FR. BRAKE HOSE

51208-HM4-850

Unavailable

CLAMP C, L. FR. BRAKE HOSE

51209-HM4-850

Unavailable

STAY, FR. GUARD

51311-HM7-000

$50.77

GUARD, R. FR.

51315-HM7-000

$27.21

GUARD, L. FR.

51316-HM7-000

$27.21

ARM ASSY., R. (LOWER)

51350-HN0-A00

$264.07

ARM ASSY., L. (LOWER)

51360-HN0-A00

$270.67

ARM ASSY., R. (UPPER)

51370-HN0-A00

$401.59

ARM ASSY., L. (UPPER)

51380-HN0-A00

$557.54

BOLT, FLANGE (6X10)

90107-HC5-000

$2.33

BOLT, FLANGE (6MM)

90111-KT1-780

$14.98

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

BOLT, FLANGE (10X62)

90151-HC5-000

$7.99

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.99

JOINT A, ARM BALL This part replaces 51355-HN0-A01.

51375-HP5-601

$20.53

JOINT A, ARM BALL

51375-HP5-601

$20.53

CIRCLIP (OUTER) (34MM)

94514-34000

$1.85
