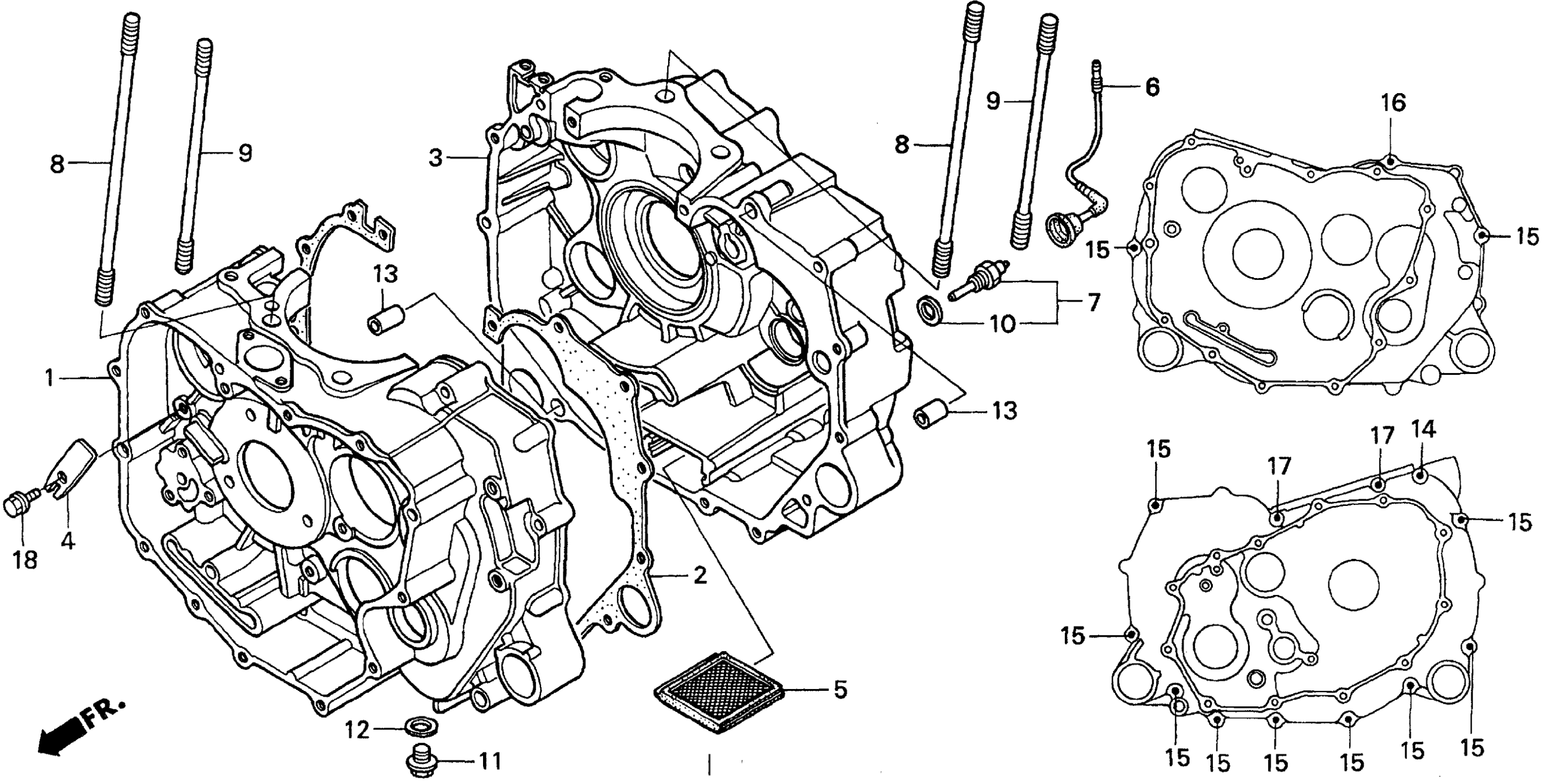

Honda TRX450ESA (01) FOURTRAX FOREMAN ES, USA, VIN# 478TE224-14200001 CRANKCASE Diagram

CRANKCASE, FR.

11100-HM7-000

$380.06

GASKET, CRANKCASE

11191-HM7-000

Unavailable

CRANKCASE, RR.

11200-HM7-000

$380.06

PLATE, CAM FIXING

14115-HM7-000

Unavailable

SCREEN, OIL FILTER This part replaces 15421-HC4-005.

15421-HR3-A40

$10.46

SUB-WIRE, THERMO SENSOR

32850-HM7-000

$13.76

SENSOR ASSY., THERMOSTAT OIL (TOYO)

37750-HC4-751

$56.20

BOLT, STUD (10X206)

90031-HM7-000

Unavailable

BOLT, STUD (10X180)

90032-HM7-000

Unavailable

WASHER, SEAL

90401-HA8-000

$3.55

WASHER, SEALING This part replaces 90401-HC4-750.

90401-HA8-000

$3.55

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.00

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

PIN, DOWEL (8X14)

94301-08140

$2.04

BOLT, FLANGE (6X28)

95701-06028-00

$1.65

BOLT, FLANGE (6X40)

95701-06040-00

$1.71

BOLT, FLANGE (6X55)

95701-06055-00

$1.97

BOLT, FLANGE (6X75)

95701-06075-00

$2.09

BOLT, FLANGE (8X16)

95701-08016-00

$1.64
