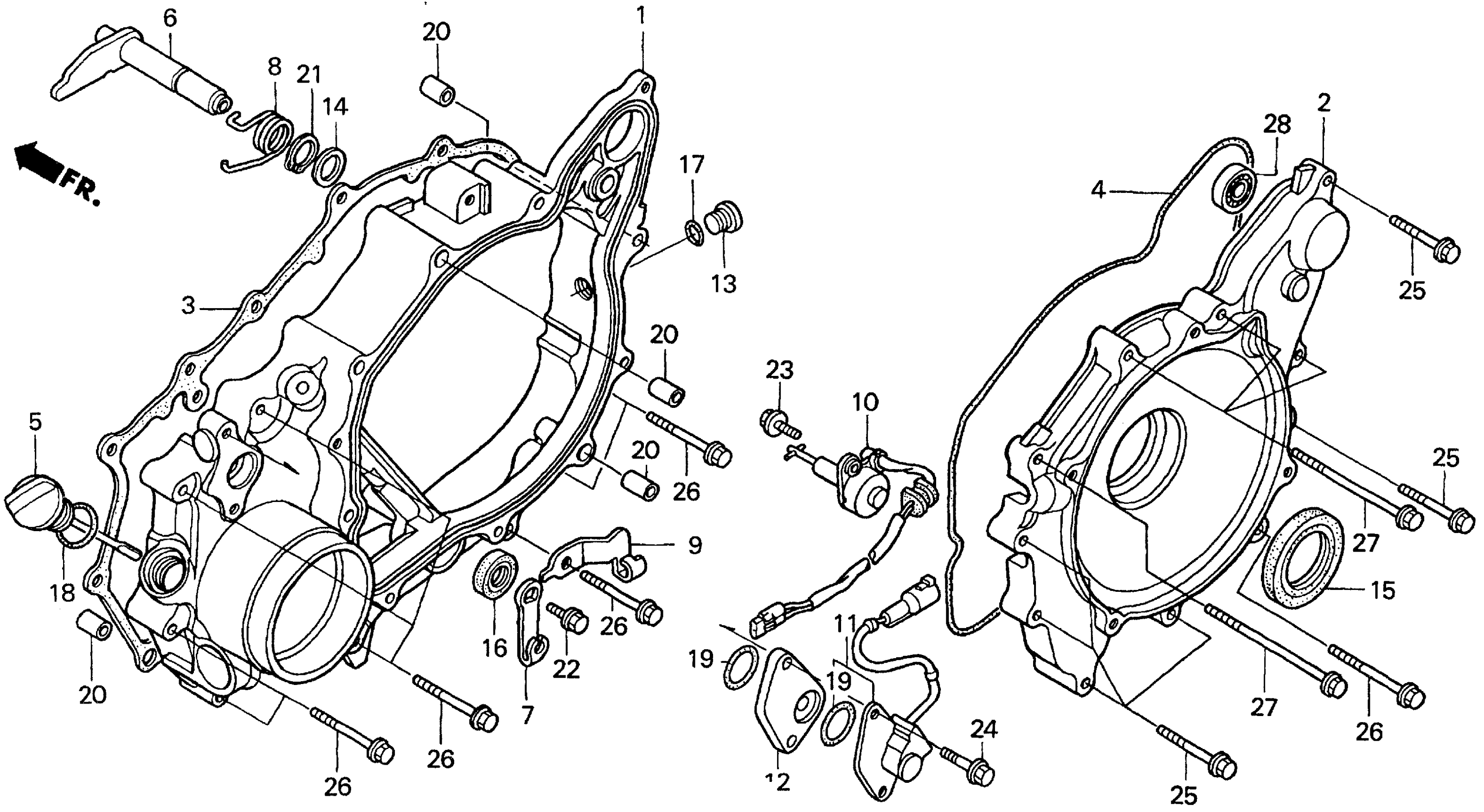

Honda TRX450ESA (01) FOURTRAX FOREMAN ES, USA, VIN# 478TE224-14200001 CRANKCASE COVER, RR. Diagram

#

Description
Price

1

COVER, RR. CRANKCASE

11340-HM7-A41

$119.56

1

COVER, RR. CRANKCASE This part replaces 11340-HM7-010.

11340-HM7-A41

$119.56

2

COVER, ALTERNATOR This part replaces 11351-HN0-A10.

11351-HN0-670

Unavailable

2

COVER, ALTERNATOR

11351-HN0-670

Unavailable

3

GASKET, RR. CRANKCASE COVER

11395-HM7-000

$26.44

4

GASKET, ALTERNATOR COVER

11396-HM7-000

$12.10

5

DIPSTICK, OIL

15650-HM7-000

Unavailable

6

SHAFT, REVERSE STOPPER

24860-HM7-000

Unavailable

7

LEVER, REVERSE STOPPER This part replaces 24865-HC4-000.

24865-HP0-A00

$4.94

8

SPRING, REVERSE

24867-HM7-000

$5.54

9

HOLDER, REVERSE STOPPER WIRE

24871-HM7-000

Unavailable

10

SWITCH ASSY., CHANGE

35759-HN0-A11

$134.95

11

SENSOR ASSY., SPEEDOMETER This part replaces 37700-HM7-751.

37700-HM7-752

Unavailable

12

INSULATOR, SPEED SENSOR

37750-HM7-750

Unavailable

13

CAP (14MM)

90084-KY2-000

$15.97

14

WASHER, THRUST (12MM)

90452-166-600

$2.39

15

OIL SEAL (32X52X8) This part replaces 91201-HM7-003.

91201-HN0-671

$8.68

16

OIL SEAL (12X22X5)

91201-965-000

$4.06

16

OIL SEAL (12X22X5) (KOYO)

91202-HC4-005

$5.46

17

O-RING (13.8X2.5)

91303-377-000

$3.42

18

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

19

O-RING (19.8X1.9) (ARAI)

91308-PA9-003

$3.85

20

PIN, DOWEL (8X14)

94301-08140

$2.25

21

CIRCLIP, OUTER (12MM)

94510-12000

$1.78

22

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

23

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

24

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

25

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

26

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

27

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

28

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
