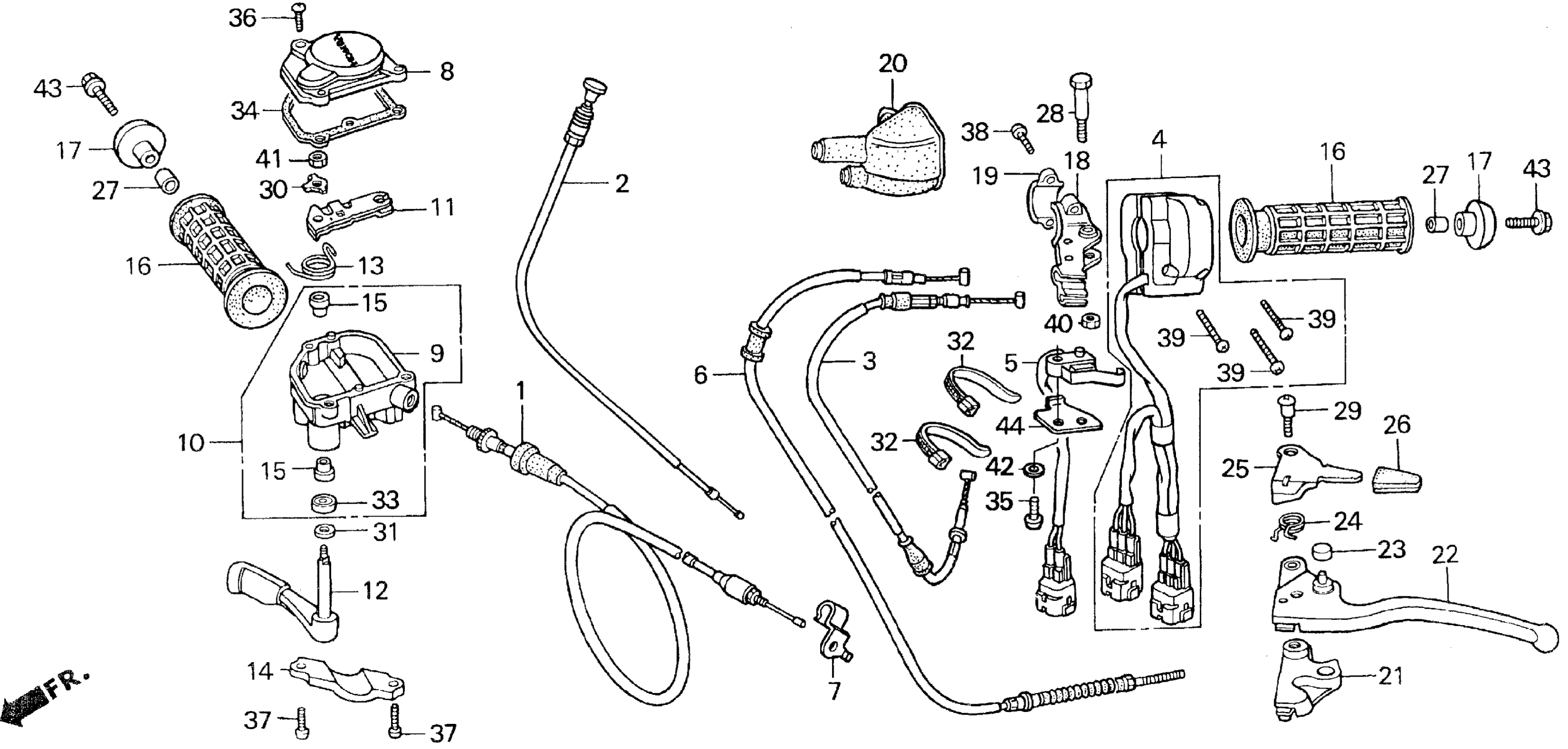

Honda TRX450ESA (01) FOURTRAX FOREMAN ES, USA, VIN# 478TE224-14200001 450ES HANDLE SWITCH + CABLES Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HN0-A00

$37.95

2

CABLE, CHOKE

17950-HN0-A12

$9.44

3

CABLE, REVERSE ASSIST

22880-HN0-A00

$19.37

4

SWITCH SET, L. HANDLE

35020-HN0-A11

$147.02

5

SWITCH ASSY., REVERSE

35370-HN0-A10

$48.76

6

CABLE, HAND BRAKE

43460-HN0-A00

$20.15

7

CLAMP, BRAKE CABLE

50352-HM7-000

$4.90

8

COVER, THROTTLE CASE

53141-HC3-000

Unavailable

9

CASE, THROTTLE LEVER

53142-HC0-770

$38.21

10

CASE ASSY., THROTTLE LEVER

53143-HM7-305

$46.44

11

ARM, THROTTLE

53144-HA0-010

$7.36

12

LEVER, THROTTLE

53145-HA0-770

$21.43

13

SPRING, THROTTLE RETURN

53146-HA0-000

$4.31

14

HOLDER, THROTTLE CASE

53147-HM5-850

$3.44

15

BUSH, THROTTLE PIVOT

53148-HA0-000

$7.64

16

GRIP, HANDLE

53165-958-010

$12.28

17

GUARD, HANDLE END

53167-958-680

$6.11

18

BRACKET, BRAKE LEVER

53172-HN0-A11

$51.45

19

HOLDER, LEVER BRACKET

53173-376-000

$10.04

20

COVER, L. HANDLE LEVER

53177-HA0-680

$10.75

21

ARM, REVERSE ASSIST

53179-HN0-A10

$7.18

22

LEVER, RR. BRAKE

53180-HA8-770

$26.97

23

CAP, REVERSE PIN

53187-VM6-000

$3.71

24

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.31

25

LEVER, PARKING BRAKE LOCK

53192-HN0-A00

$11.56

26

CAP, PARKING LEVER

53193-HA0-770

$5.87

27

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.80

28

BOLT, HANDLE LEVER PIVOT

90114-HA0-770

$2.37

28

BOLT, HANDLE LEVER PIVOT This part replaces 90114-VM6-000.

90114-HA0-770

$2.37

29

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$3.90

30

WASHER, LOCK (6MM)

90501-HA0-000

$2.80

31

WASHER (9X20)

90504-HA0-000

$2.10

32

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

33

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.74

33

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.74

34

GASKET, THROTTLE CASE

91532-HA0-020

$5.87

35

SCREW, PAN (3X12)

93500-03012-0H

$0.76

36

SCREW, PAN (4X16)

93500-04016-0G

$0.76

37

SCREW, PAN (5X14)

93500-05014-0G

$3.40

38

SCREW, PAN (5X18)

93500-05018-0G

$0.43

39

SCREW, PAN (5X28)

93500-05028-0G

$0.63

40

NUT, HEX. (6MM)

94001-06070-0S

$1.21

41

NUT, HEX. (6MM)

94002-06000-0S

$1.21

42

WASHER, SPRING (3MM)

94111-03800

$0.60

43

BOLT, FLANGE (6X25)

95701-06025-07

$1.66

44

COVER, REVERSE SWITCH

35371-HN0-A10

$23.91
