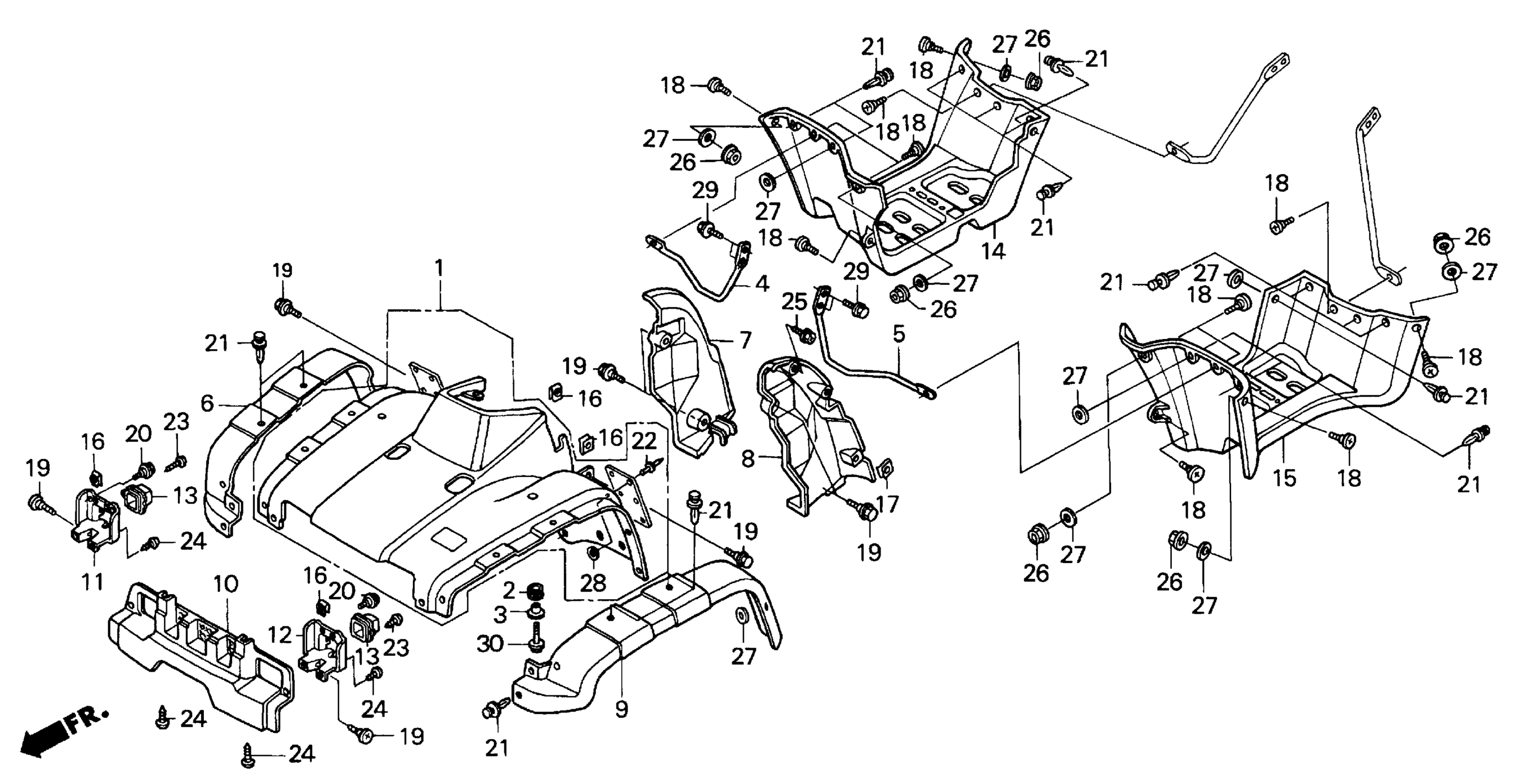

Honda TRX450ESA (00) FOURTRAX FOREMAN ES, USA, VIN# 478TE224-Y4100001 450ES FRONT FENDER Diagram

FENDER, FR. *G152* (ADVENTURE GREEN)

61100-HM7-A00ZA

Unavailable

FENDER, FR. *Y151R* (STARBURST YELLOW)

61100-HM7-A00ZF

Unavailable

FENDER, FR. *R232* (PATRIOT RED)

61100-HM7-A00ZC

Unavailable

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.35

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.22

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.22

STAY, R. FR. STEERING

61105-HM7-000

$57.75

STAY, L. FR. STEERING

61106-HM7-000

$57.75

SPLASH GUARD, R. FR. SIDE *NH1* (BLACK)

61861-HM7-000ZB

$22.43

FENDER, R. (INNER) This part replaces 61863-HM7-A00.

61863-HN0-670

$21.17

FENDER, R. (INNER)

61863-HN0-670

$21.17

FENDER, L. (INNER) This part replaces 61864-HM7-A00.

61864-HN0-670

$21.17

FENDER, L. (INNER)

61864-HN0-670

$21.17

SPLASH GUARD, L. FR. SIDE *NH1* (BLACK)

61866-HM7-000ZB

$22.43

GRILLE, FR. *NH1* (BLACK)

66300-HM7-000ZB

Unavailable

COVER, R. HEADLIGHT

66301-HM7-000

Unavailable

COVER, L. HEADLIGHT

66302-HM7-000

Unavailable

CAP, HEADLIGHT TAIL

66303-HM7-000

$3.05

SPLASH GUARD, R. CENTER *NH1* (BLACK)

80121-HN0-A10ZA

$441.28

SPLASH GUARD, L. CENTER *NH1* (BLACK)

80122-HN0-A10ZA

$441.28

NUT, FENDER SETTING

84601-HC4-000

$3.99

NUT, FENDER SETTING

84601-HM7-000

Unavailable

SCREW, SPECIAL (6X8)

90102-HM7-000

$2.70

BOLT, FLANGE (6MM)

90111-162-000

$2.62

BOLT, FLANGE (6MM)

90111-197-890

$3.32

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

RIVET, POP (3.2)

90841-HF1-910

$0.12

SCREW, TAPPING (4X12)

93903-24320

$0.83

SCREW, TAPPING (5X12)

93903-25220

$0.83

SCREW, TAPPING (6X16)

93904-26210

$0.55

NUT, FLANGE (6MM)

94050-06000

$0.59

WASHER, PLAIN (8MM)

94101-08700

$0.90

WASHER, PLAIN (3MM)

94103-03800

$0.78

BOLT, FLANGE (6X14)

95701-06014-00

$0.91

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
