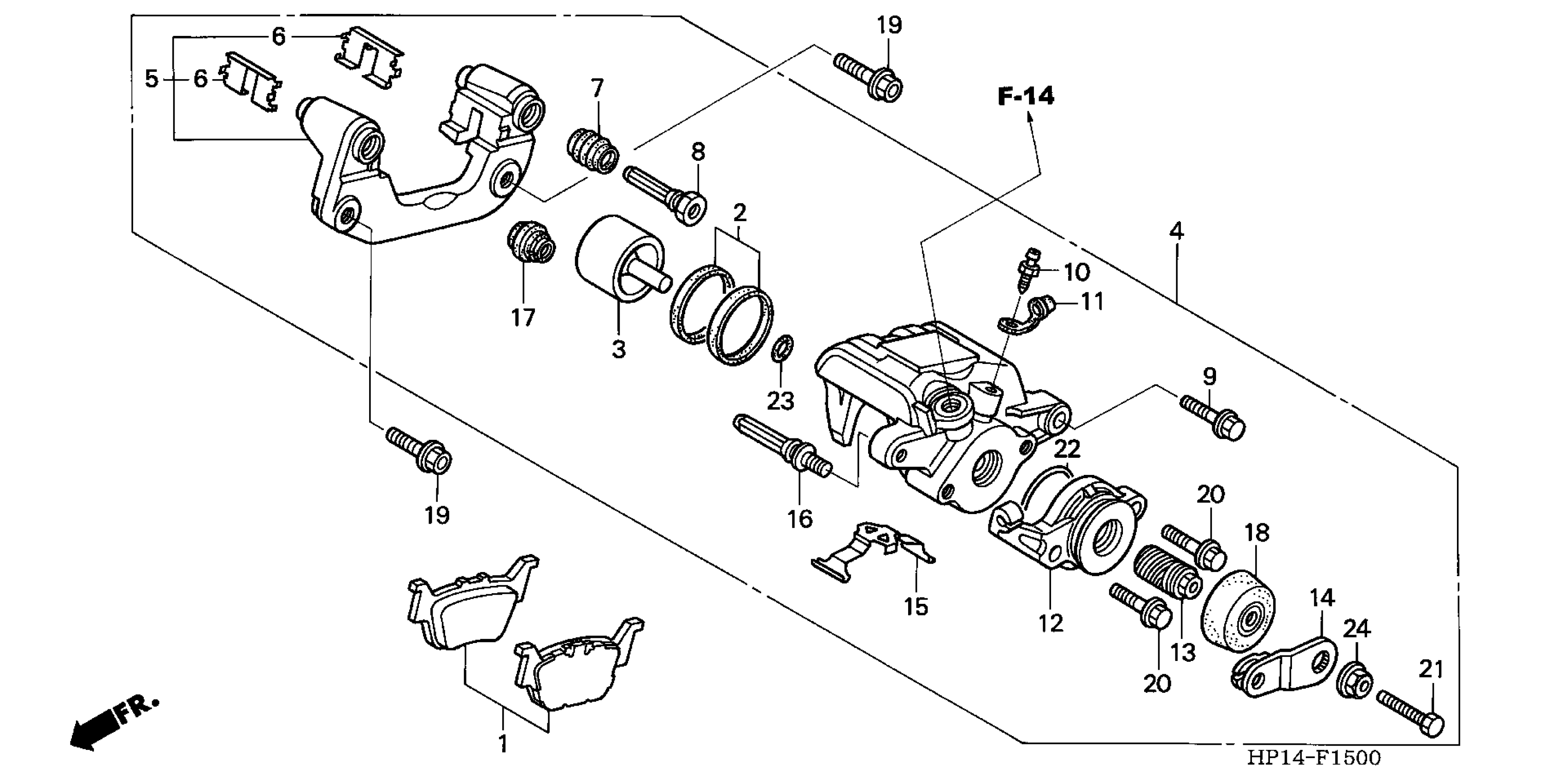

Honda TRX450ERA (06) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE320-6K000001 TO JH2TE320-6K099999 REAR BRAKE CALIPER Diagram

Description

Price

PAD SET, RR. BRAKE This part replaces 06435-HP1-006.

06435-HP1-016

$51.84

PAD SET, RR. BRAKE

06435-HP1-016

$51.84

SEAL SET, PISTON

06451-MA7-405

$10.63

PISTON

43109-HP1-006

$16.10

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-HP1-006

$147.42

BRACKET, RR.

43210-HP1-006

$68.77

RETAINER, BRACKET

43214-HP1-006

$2.92

COVER, DUST

43234-S04-003

$5.62

PIN B

43235-HP1-006

$3.84

BOLT, FLANGE (8X26)

43240-S6M-J51

$4.84

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.22

CAP, BLEEDER

43353-461-771

$5.05

BRAKE, PARKING

43360-HN1-A41

$16.40

SHAFT, L.

43361-961-006

$17.88

ARM, PARKING BRAKE

43362-HN1-A41

$5.85

SPRING, PAD

45108-HP1-006

$6.11

BOLT A, PIN

45131-ML7-921

$15.44

BOOT B

45133-MA3-006

$5.46

DUST SEAL, MASTER CYLINDER

46184-611-000

$10.61

BOLT, FLANGE (8X28)

90102-KV3-700

$3.92

BOLT (8X25)

90116-410-006

$6.07

BOLT (8X45)

90126-HP1-006

$3.21

O-RING (31)

91357-964-006

$4.31

O-RING (P8)

91358-964-006

$2.39

NUT-WASHER (8MM)

94071-08080

$1.49
