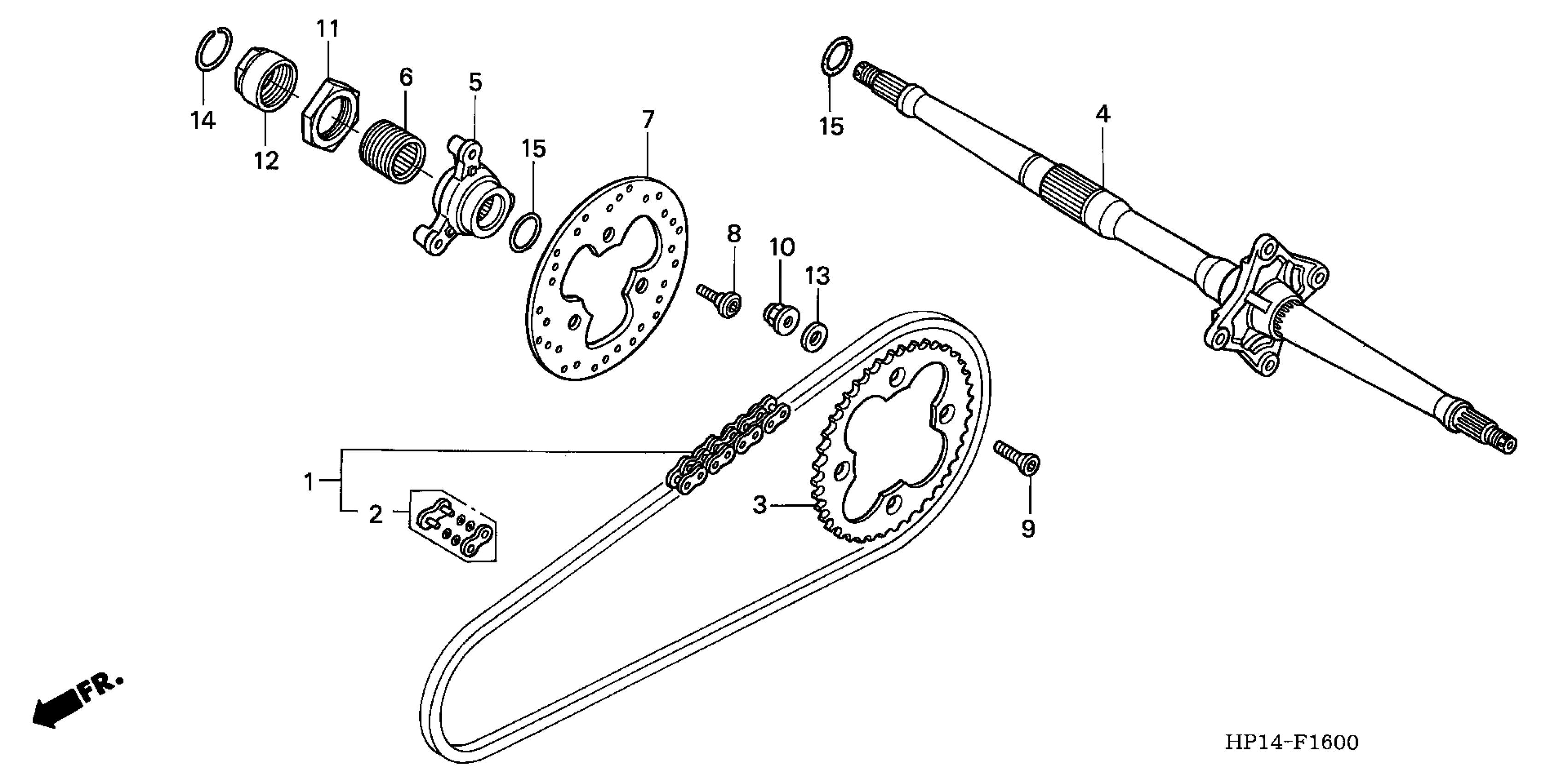

Honda TRX450ERA (06) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE320-6K000001 TO JH2TE320-6K099999 REAR AXLE + DRIVE CHAIN Diagram

CHAIN SET, DRIVE (DID520 92-100L) (STANDARD LINK 94L) (STANDARD LINK 96L) (NOT AVAILABLE)

06405-HP1-P00

Unavailable

CHAIN SET, DRIVE (RK520 92-100L) (RK EXCEL) (STANDARD LINK 94L) (STANDARD LINK 96L) (NA USE ALT:40540-KB7-306)

06405-HP1-P10

Unavailable

MASTER LINK SET (SEAL TYPE) (DAIDO)

40535-KCR-305

$7.16

MASTER LINK SET (RK EXCEL)

40535-KEA-005

$8.16

SPROCKET, FINAL DRIVEN (38T)

41201-HC0-000

$91.15

AXLE, RR.

42310-HP1-000

$535.84

FLANGE, BRAKE DISK

43121-HP1-600

$74.14

BOLT, RR. AXLE

43127-HA2-000

$38.00

DISK, RR. BRAKE

43251-HP1-003

$119.98

BOLT, DISK (8X22)

90105-MK5-010

$4.94

BOLT, SPROCKET (10MM)

90114-HP1-600

$3.80

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

NUT, RR. AXLE SPECIAL

90307-HA2-000

$23.04

NUT B, RR. AXLE

90308-HB9-000

$13.40

WASHER (10MM)

90410-HC4-000

$3.81

CLIP (OUTER) (37MM)

90652-HA2-000

$3.35

O-RING (39.7X1.3)

91351-HA5-003

$3.67
