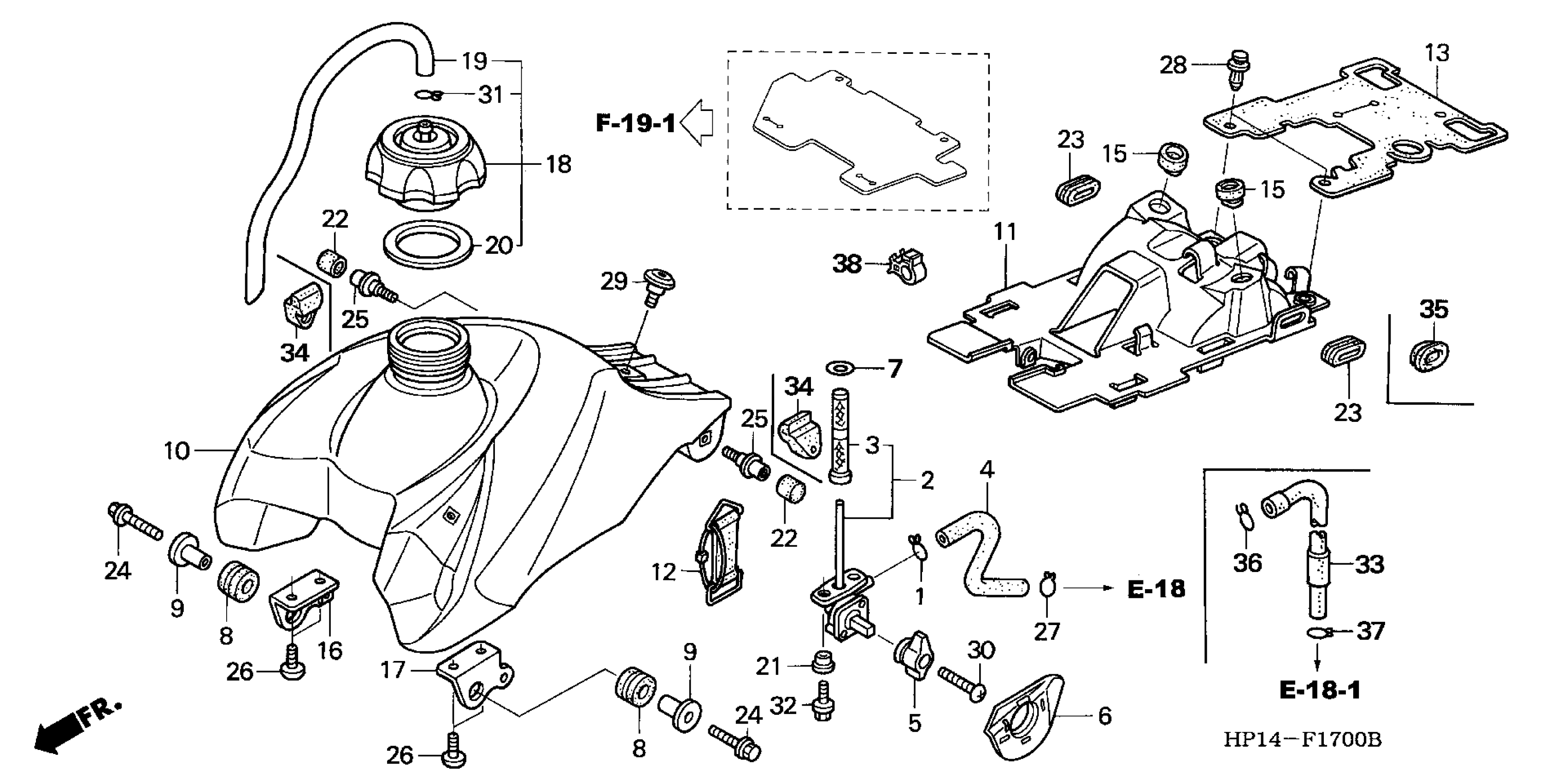

Honda TRX450ERA (06) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE320-6K000001 TO JH2TE320-6K099999 FUEL TANK ('04-'07) Diagram

#

Description
Price

2

PETCOCK ASSY.

16950-HP1-003

$80.05

3

SCREEN SET

16952-HP1-003

$22.46

5

LEVER, PETCOCK

16963-HP1-000

$26.94

6

PLATE, FUEL MARK

16965-HP1-000

$30.70

7

O-RING (13.6X3.6)

16997-HN8-003

$2.17

8

RUBBER, TANK MOUNTING

17508-HP1-000

$17.31

9

COLLAR, TANK SETTING

17509-MK2-680

Unavailable

10

TANK, FUEL

17510-HP1-600

Unavailable

11

PROTECTOR, TANK HEAT (LOWER)

17515-HP1-600

$37.77

12

BAND, RR. TANK

17516-KZ3-B00

$14.64

15

RUBBER, FUEL TANK MOUNTING

17519-HP1-600

Unavailable

16

PLATE, R. FR. TANK

17521-HP1-600

Unavailable

17

PLATE, L. FR. TANK

17522-HP1-600

Unavailable

18

CAP ASSY., FUEL TANK

17620-HP1-000

$33.89

19

TUBE, FUEL CAP BREATHER

17622-HP1-000

$8.07

20

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.48

21

COLLAR, FUEL TANK SETTING

17626-467-000

$4.45

22

CUSHION, RR. FENDER (FR)

80109-HP1-600

Unavailable

23

GROMMET A, SIDE COVER

83601-MB0-000

$4.20

24

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.10

25

BOLT, FLANGE SOCKET (6MM)

90108-HP1-000

Unavailable

26

SCREW, PAN (6X14)

90118-MR1-000

$2.88

28

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

29

BOLT, GRIP END

90109-HP1-000

$1.84

30

SCREW-WASHER (5X8)

93891-05008-08

$1.06

31

CLIP, TUBE (C9)

95002-50000

$1.14

32

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

33

TUBE, FUEL

16956-HP1-600

$9.05

34

CUSHION, RR. FENDER (FR)

80109-HP1-600

Unavailable

35

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

36

CLIP, TUBE (B14)

90651-KM9-000

$1.62

37

CLIP, TUBE (B12)

95002-02120

Unavailable

38

CLIP, CABLE (10MM)

90690-GHB-641

$1.99
