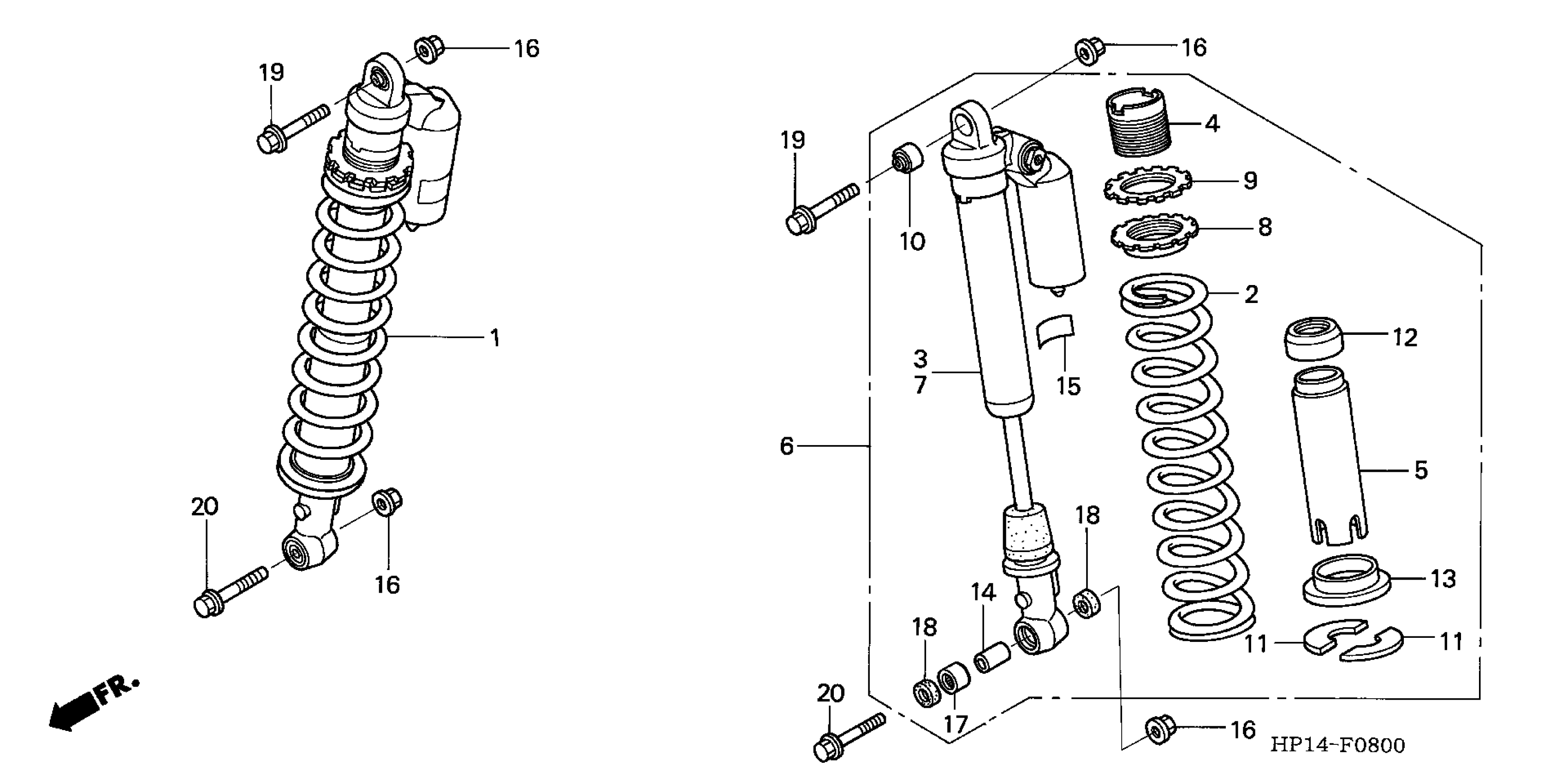

Honda TRX450ERA (06) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE320-6K000001 TO JH2TE320-6K099999 FRONT SHOCK ABSORBER Diagram

CUSHION ASSY., R. FR. | Use up to Frame SN 6K000971 This part replaces 51400-HP1-601.

51400-HP1-602

$808.07

CUSHION ASSY., R. FR.

51400-HP1-602

$808.07

SPRING, FR. FORK

51401-HP1-601

$119.21

DAMPER, R. FR. | Use up to Frame SN 6K000971 This part replaces 51410-HP1-601.

51410-HP1-602

$670.61

DAMPER, R. FR.

51410-HP1-602

$670.61

PIPE, ADJUSTER

51425-HP1-601

$16.46

GUIDE, SPRING

51458-HP1-003

$22.46

CUSHION ASSY., L. FR. | Use up to Frame SN 6K000971 This part replaces 51500-HP1-601.

51500-HP1-602

$845.59

CUSHION ASSY., L. FR.

51500-HP1-602

$845.59

DAMPER, L. FR. | Use up to Frame SN 6K000971 This part replaces 51510-HP1-601.

51510-HP1-602

$657.10

DAMPER, L. FR.

51510-HP1-602

$657.10

ADJUSTER, SPRING (SHOWA)

52422-MN9-701

$35.82

NUT, ADJUSTER (SHOWA)

52423-MN9-701

$27.77

BUSH, DAMPER

52451-GAG-750

$10.51

STOPPER, SPRING SEAT

52455-HP1-601

$8.18

DUST SEAL

52457-KE1-003

$8.79

SEAT, SPRING

52459-HP1-601

$17.33

COLLAR C, CUSHION ARM

52465-MY1-000

$5.90

LABEL, RR. DAMPER

87516-MBL-610

$4.31

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

BEARING, NEEDLE (17X24X17) (KOYO)

91071-MY1-005

$19.69

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

BOLT, FLANGE (10X40)

96400-10040-00

$2.41

BOLT, FLANGE (10X50)

96400-10050-00

$2.08
