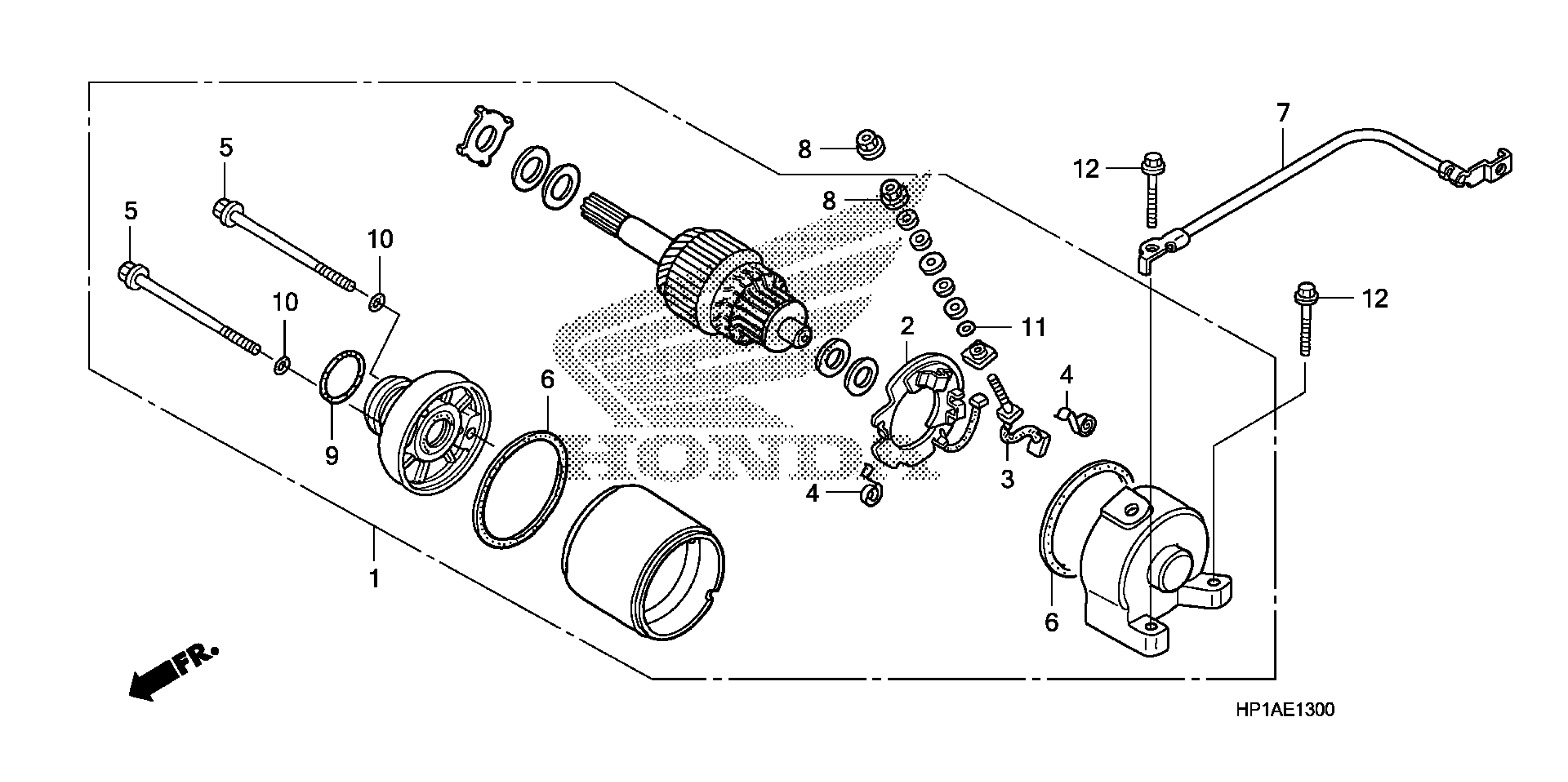

Honda TRX450ER3AC (14) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE327-EK500001 STARTER MOTOR Diagram

#

Description
Price

1

STARTER MOTOR ASSY.

31200-HP1-601

$445.28

2

HOLDER SET, BRUSH (MITSUBA)

31201-KFK-003

$45.94

3

TERMINAL SET, BRUSH

31201-MBE-008

$11.42

4

SPRING, CARBON BRUSH

31204-KS5-901

$2.92

5

BOLT, SETTING

31205-MBE-008

$2.34

6

RING

31207-MBE-008

$4.28

7

CABLE, BATTERY GROUND

32602-HP1-600

$24.56

8

NUT-WASHER (6MM)

90071-MB0-000

$1.97

9

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

9

O-RING (24.4X3.1)

91312-MG7-003

$6.34

10

O-RING

91320-MBE-008

$2.44

11

O-RING (4X2)

91320-MB0-000

$2.43

12

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
