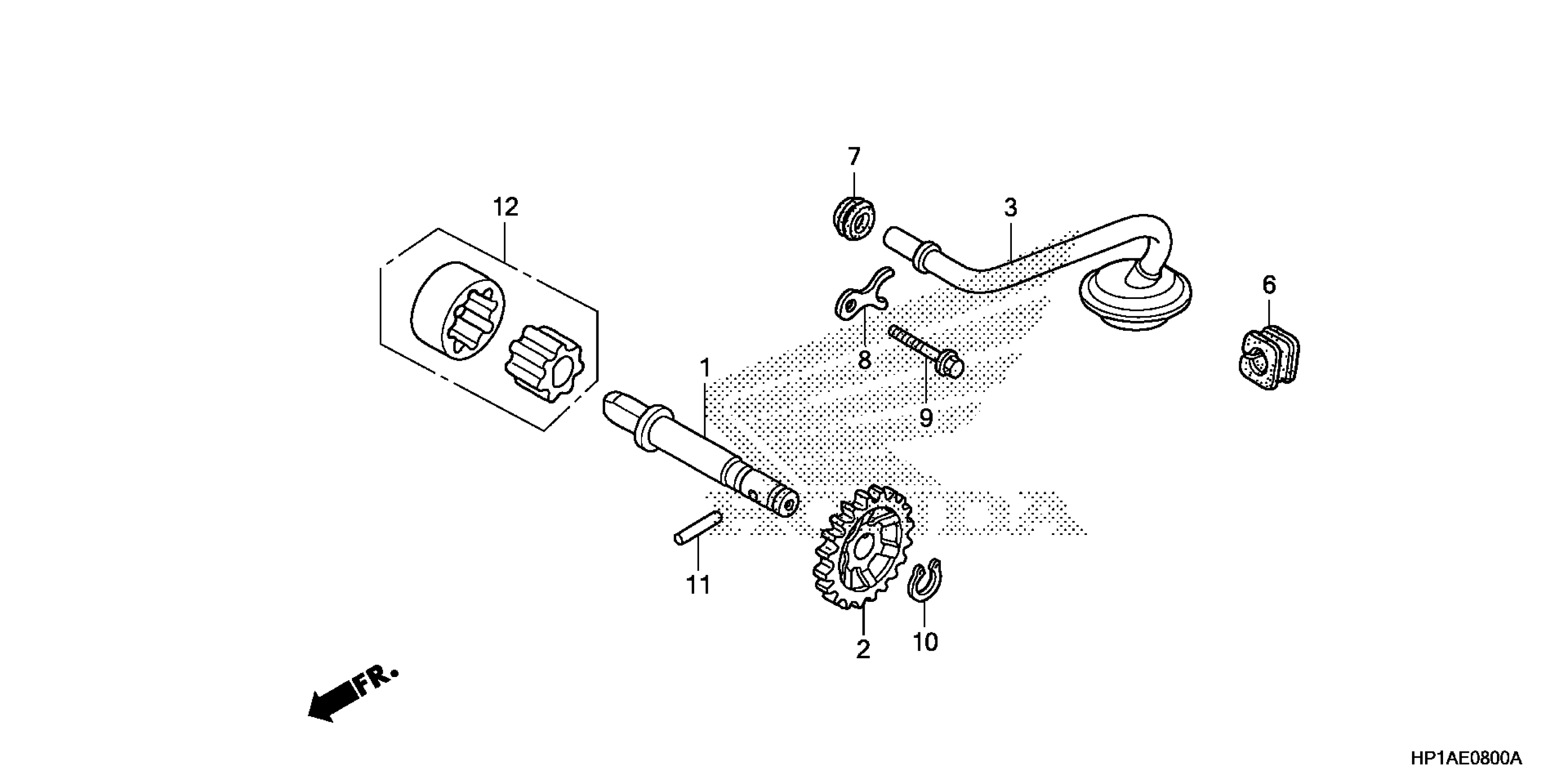

Honda TRX450ER3AC (14) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE327-EK500001 OIL PUMP Diagram

#

Description

Price

1

SHAFT, OIL PUMP

15111-HP1-600

$36.46

2

GEAR, OIL PUMP DRIVEN (20T)

15133-MEB-670

$43.25

3

STRAINER, OIL

15150-HP1-600

$28.05

4

ROTOR SET, OIL PUMP This part replaces 15331-958-000.

15021-958-000

$35.25

5

ROTOR SET, OIL PUMP This part replaces 15332-958-000.

15021-958-000

$35.25

6

GROMMET, OIL SCAVENGING PIPE

15432-MEB-670

$6.07

7

SEAL, RING

15433-KGB-610

$2.72

8

PLATE, OIL PIPE SETTING

15434-MEB-670

$2.87

9

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.25

10

CIRCLIP (8MM)

90652-KY4-900

$1.49

11

ROLLER (3X17.8)

96220-30178

$1.49

12

ROTOR SET, OIL PUMP

15021-958-000

$35.25
