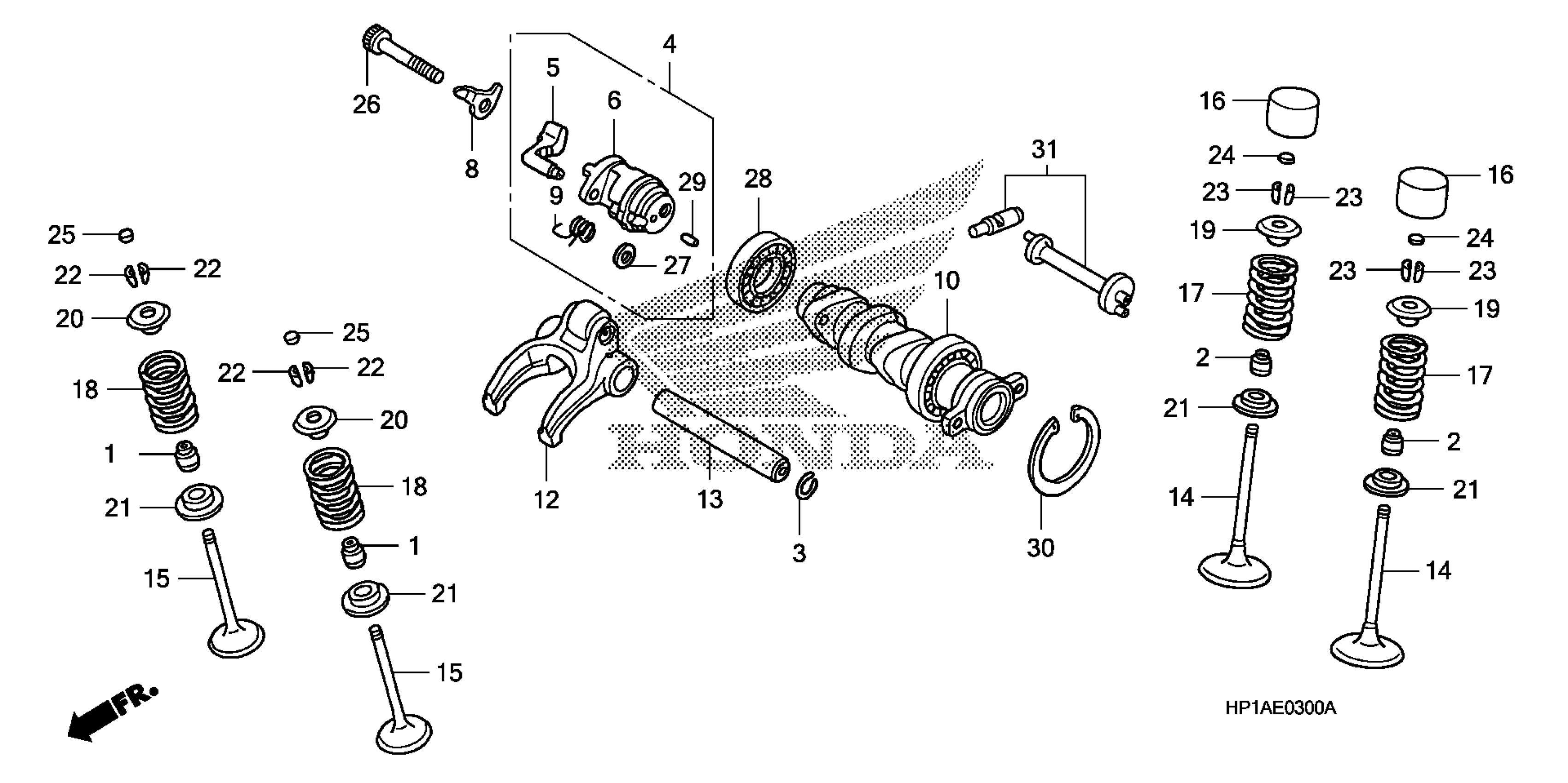

Honda TRX450ER3AC (14) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE327-EK500001 CAMSHAFT + VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM (ARAI)

12209-GB4-682

$6.27

2

SEAL, VALVE STEM (NOK)

12209-KL4-005

$7.47

3

CLIP, PISTON PIN (12MM)

13115-156-000

$2.79

10

CAMSHAFT

14110-HP1-A01

$293.28

12

ARM, EX. ROCKER

14440-HP1-670

$158.40

13

SHAFT, EX. ROCKER ARM

14451-MEB-670

$17.35

14

VALVE, IN.

14711-MEB-670

$81.98

15

VALVE, EX.

14721-MEY-670

$49.66

16

LIFTER, VALVE

14731-MEB-670

$43.40

17

SPRING, IN. VALVE

14751-MEB-670

$11.06

18

SPRING, EX. VALVE

14752-MEY-670

$7.82

19

RETAINER, IN. VALVE SPRING

14771-MEB-670

$8.33

20

RETAINER, EX. VALVE SPRING

14772-MEB-670

$7.32

21

SEAT, VALVE SPRING

14775-KGB-610

$3.87

22

COTTER, VALVE

14781-MAT-000

$3.62

23

COTTER, VALVE

14781-MEB-670

$5.35

24

SHIM, TAPPET (1.20)

14901-MBB-000

$8.75

24

SHIM, TAPPET (1.225)

14902-MBB-000

$8.75

24

SHIM, TAPPET (1.250)

14903-MBB-000

$8.75

24

SHIM, TAPPET (1.275)

14904-MBB-000

$8.75

24

SHIM, TAPPET (1.30)

14905-MBB-000

$8.75

24

SHIM, TAPPET (1.325)

14906-MBB-000

$2.71

24

SHIM, TAPPET (1.350)

14907-MBB-000

$8.23

24

SHIM, TAPPET (1.375)

14908-MBB-000

$8.75

24

SHIM, TAPPET (1.40)

14909-MBB-000

$8.75

24

SHIM, TAPPET (1.425)

14910-MBB-000

$8.75

24

SHIM, TAPPET (1.450)

14911-MBB-000

$8.75

24

SHIM, TAPPET (1.475)

14912-MBB-000

$8.75

24

SHIM, TAPPET (1.50)

14913-MBB-000

$8.23

24

SHIM, TAPPET (1.525)

14914-MBB-000

$8.75

24

SHIM, TAPPET (1.550)

14915-MBB-000

$8.75

24

SHIM, TAPPET (1.575)

14916-MBB-000

$8.75

24

SHIM, TAPPET (1.60)

14917-MBB-000

$8.75

24

SHIM, TAPPET (1.625)

14918-MBB-000

$8.75

24

SHIM, TAPPET (1.650)

14919-MBB-000

$8.75

24

SHIM, TAPPET (1.675)

14920-MBB-000

$8.75

24

SHIM, TAPPET (1.70)

14921-MBB-000

$8.23

24

SHIM, TAPPET (1.725)

14922-MBB-000

$8.75

24

SHIM, TAPPET (1.750)

14923-MBB-000

$8.75

24

SHIM, TAPPET (1.775)

14924-MBB-000

$8.75

24

SHIM, TAPPET (1.80)

14925-MBB-000

$8.75

24

SHIM, TAPPET (1.825)

14926-MBB-000

$8.75

24

SHIM, TAPPET (1.850)

14927-MBB-000

$8.75

24

SHIM, TAPPET (1.875)

14928-MBB-000

$8.75

24

SHIM, TAPPET (1.90)

14929-MBB-000

$8.75

24

SHIM, TAPPET (1.925)

14930-MBB-000

$8.75

24

SHIM, TAPPET (1.950)

14931-MBB-000

$8.75

24

SHIM, TAPPET (1.975)

14932-MBB-000

$8.75

24

SHIM, TAPPET (2.00)

14933-MBB-000

$8.75

24

SHIM, TAPPET (2.025)

14934-MBB-000

$8.23

24

SHIM, TAPPET (2.050)

14935-MBB-000

$8.75

24

SHIM, TAPPET (2.075)

14936-MBB-000

$8.75

24

SHIM, TAPPET (2.10)

14937-MBB-000

$8.75

24

SHIM, TAPPET (2.125)

14938-MBB-000

$8.75

24

SHIM, TAPPET (2.150)

14939-MBB-000

$8.75

24

SHIM, TAPPET (2.175)

14940-MBB-000

$8.23

24

SHIM, TAPPET (2.20)

14941-MBB-000

$8.23

24

SHIM, TAPPET (2.225)

14942-MBB-000

$8.75

24

SHIM, TAPPET (2.250)

14943-MBB-000

$8.75

24

SHIM, TAPPET (2.275)

14944-MBB-000

$8.75

24

SHIM, TAPPET (2.30)

14945-MBB-000

$8.75

24

SHIM, TAPPET (2.325)

14946-MBB-000

$8.75

24

SHIM, TAPPET (2.350)

14947-MBB-000

$8.75

24

SHIM, TAPPET (2.375)

14948-MBB-000

$8.75

24

SHIM, TAPPET (2.40)

14949-MBB-000

$8.75

24

SHIM, TAPPET (2.425)

14950-MBB-000

$8.75

24

SHIM, TAPPET (2.450)

14951-MBB-000

$8.75

25

SHIM, TAPPET (1.20)

14901-MBB-000

$8.75

25

SHIM, TAPPET (1.225)

14902-MBB-000

$8.75

25

SHIM, TAPPET (1.250)

14903-MBB-000

$8.75

25

SHIM, TAPPET (1.275)

14904-MBB-000

$8.75

25

SHIM, TAPPET (1.30)

14905-MBB-000

$8.75

25

SHIM, TAPPET (1.325)

14906-MBB-000

$2.71

25

SHIM, TAPPET (1.350)

14907-MBB-000

$8.23

25

SHIM, TAPPET (1.375)

14908-MBB-000

$8.75

25

SHIM, TAPPET (1.40)

14909-MBB-000

$8.75

25

SHIM, TAPPET (1.425)

14910-MBB-000

$8.75

25

SHIM, TAPPET (1.450)

14911-MBB-000

$8.75

25

SHIM, TAPPET (1.475)

14912-MBB-000

$8.75

25

SHIM, TAPPET (1.50)

14913-MBB-000

$8.23

25

SHIM, TAPPET (1.525)

14914-MBB-000

$8.75

25

SHIM, TAPPET (1.550)

14915-MBB-000

$8.75

25

SHIM, TAPPET (1.575)

14916-MBB-000

$8.75

25

SHIM, TAPPET (1.60)

14917-MBB-000

$8.75

25

SHIM, TAPPET (1.625)

14918-MBB-000

$8.75

25

SHIM, TAPPET (1.650)

14919-MBB-000

$8.75

25

SHIM, TAPPET (1.675)

14920-MBB-000

$8.75

25

SHIM, TAPPET (1.70)

14921-MBB-000

$8.23

25

SHIM, TAPPET (1.725)

14922-MBB-000

$8.75

25

SHIM, TAPPET (1.750)

14923-MBB-000

$8.75

25

SHIM, TAPPET (1.775)

14924-MBB-000

$8.75

25

SHIM, TAPPET (1.80)

14925-MBB-000

$8.75

25

SHIM, TAPPET (1.825)

14926-MBB-000

$8.75

25

SHIM, TAPPET (1.850)

14927-MBB-000

$8.75

25

SHIM, TAPPET (1.875)

14928-MBB-000

$8.75

25

SHIM, TAPPET (1.90)

14929-MBB-000

$8.75

25

SHIM, TAPPET (1.925)

14930-MBB-000

$8.75

25

SHIM, TAPPET (1.950)

14931-MBB-000

$8.75

25

SHIM, TAPPET (1.975)

14932-MBB-000

$8.75

25

SHIM, TAPPET (2.00)

14933-MBB-000

$8.75

25

SHIM, TAPPET (2.025)

14934-MBB-000

$8.23

25

SHIM, TAPPET (2.050)

14935-MBB-000

$8.75

25

SHIM, TAPPET (2.075)

14936-MBB-000

$8.75

25

SHIM, TAPPET (2.10)

14937-MBB-000

$8.75

25

SHIM, TAPPET (2.125)

14938-MBB-000

$8.75

25

SHIM, TAPPET (2.150)

14939-MBB-000

$8.75

25

SHIM, TAPPET (2.175)

14940-MBB-000

$8.23

25

SHIM, TAPPET (2.20)

14941-MBB-000

$8.23

25

SHIM, TAPPET (2.225)

14942-MBB-000

$8.75

25

SHIM, TAPPET (2.250)

14943-MBB-000

$8.75

25

SHIM, TAPPET (2.275)

14944-MBB-000

$8.75

25

SHIM, TAPPET (2.30)

14945-MBB-000

$8.75

25

SHIM, TAPPET (2.325)

14946-MBB-000

$8.75

25

SHIM, TAPPET (2.350)

14947-MBB-000

$8.75

25

SHIM, TAPPET (2.375)

14948-MBB-000

$8.75

25

SHIM, TAPPET (2.40)

14949-MBB-000

$8.75

25

SHIM, TAPPET (2.425)

14950-MBB-000

$8.75

25

SHIM, TAPPET (2.450)

14951-MBB-000

$8.75

25

SHIM, TAPPET (2.475)

14952-MEB-670

$8.75

25

SHIM, TAPPET (2.500)

14953-MEB-670

$8.75

25

SHIM, TAPPET (2.525)

14954-MEB-670

$8.75

25

SHIM, TAPPET (2.550)

14955-MEB-670

$8.75

25

SHIM, TAPPET (2.575)

14956-MEB-670

$8.35

25

SHIM, TAPPET (2.600)

14957-MEB-670

$5.95

25

SHIM, TAPPET (2.625)

14958-MEB-670

Unavailable

25

SHIM, TAPPET (2.650)

14959-MEB-670

$8.75

25

SHIM, TAPPET (2.675)

14960-MEB-670

$8.75

25

SHIM, TAPPET (2.700)

14961-MEB-670

$8.75

25

SHIM, TAPPET (2.725)

14962-MEB-670

$8.75

25

SHIM, TAPPET (2.750)

14963-MEB-670

$8.35

25

SHIM, TAPPET (2.775)

14964-MEB-670

$8.75

25

SHIM, TAPPET (2.800)

14965-MEB-670

$8.35

25

SHIM, TAPPET (2.825)

14966-MEB-670

$8.75

25

SHIM, TAPPET (2.850)

14967-MEB-670

$8.35

25

SHIM, TAPPET (2.875)

14968-MEB-670

$8.75

25

SHIM, TAPPET (2.900)

14969-MEB-670

$8.75

25

SHIM, TAPPET (2.925)

14970-MEB-670

$8.75

25

SHIM, TAPPET (2.950)

14971-MEB-670

$8.35

25

SHIM, TAPPET (2.975)

14972-MEB-670

$8.35

25

SHIM, TAPPET (3.000)

14973-MEB-670

$8.75

28

BEARING, RADIAL BALL (6904)

91003-KF0-008

$13.03

30

CIRCLIP (INNER) (42MM)

94520-42120

Unavailable

31

KIT, DECOMPRESSION

06140-HP1-305

$96.87
