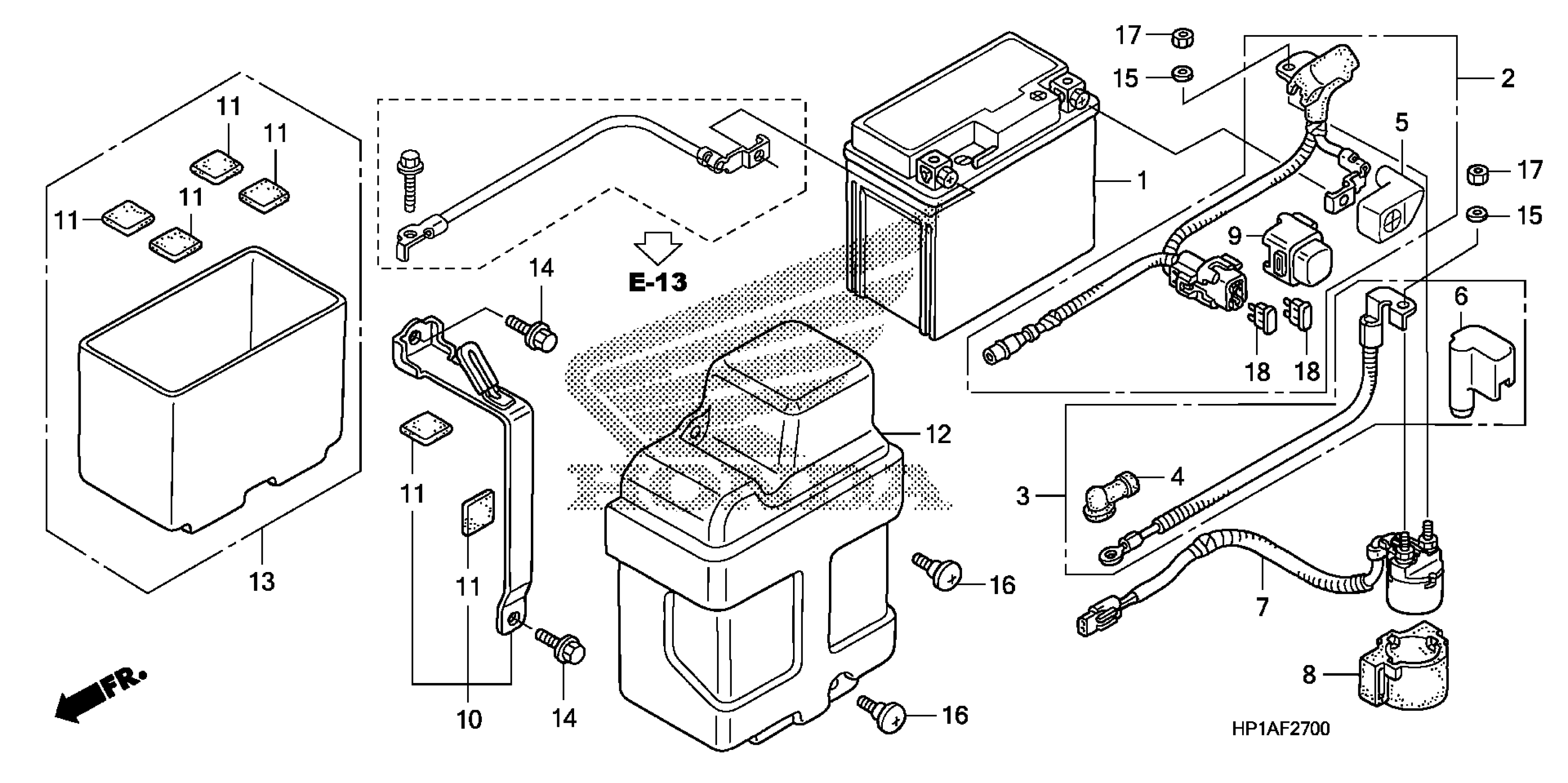

Honda TRX450ER3AC (14) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE327-EK500001 BATTERY Diagram

BATTERY (YTZ7S) This part replaces 31500-HP1-601.

31500-HP1-602

$145.83

BATTERY (YTZ7S) This part replaces 31500-HP1-601AH.

31500-HP1-602

$145.83

CABLE, STARTER BATTERY

32401-HP1-601

$60.25

CABLE, STARTER MOTOR

32402-HP1-600

$32.39

COVER, TERMINAL

32411-473-000

$6.05

COVER, BATTERY TERMINAL

32414-MCF-000

$6.48

COVER, MAGNETIC SWITCH TERMINAL

32416-HN8-300

$1.49

SWITCH ASSY., STARTER MAGNETIC

35850-HP1-601

$84.05

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

COVER ASSY., FUSE (15A)

38216-ZV5-003

$4.35

BAND, BATTERY

50327-HP1-600

$9.00

RUBBER, BATTERY

50328-HP1-600

$1.62

COVER, BATTERY

50329-HP1-600

$11.18

TRAY, BATTERY

50331-HP1-600

$16.57

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$3.10

WASHER, SPRING (6MM)

90052-ZA0-800

$1.49

SCREW, SPECIAL (6X11)

90381-KEJ-C50

$1.49

NUT, HEX. (6MM)

94002-06390-0S

$1.49

FUSE, BLADE (15A)

98200-31500

$1.49
