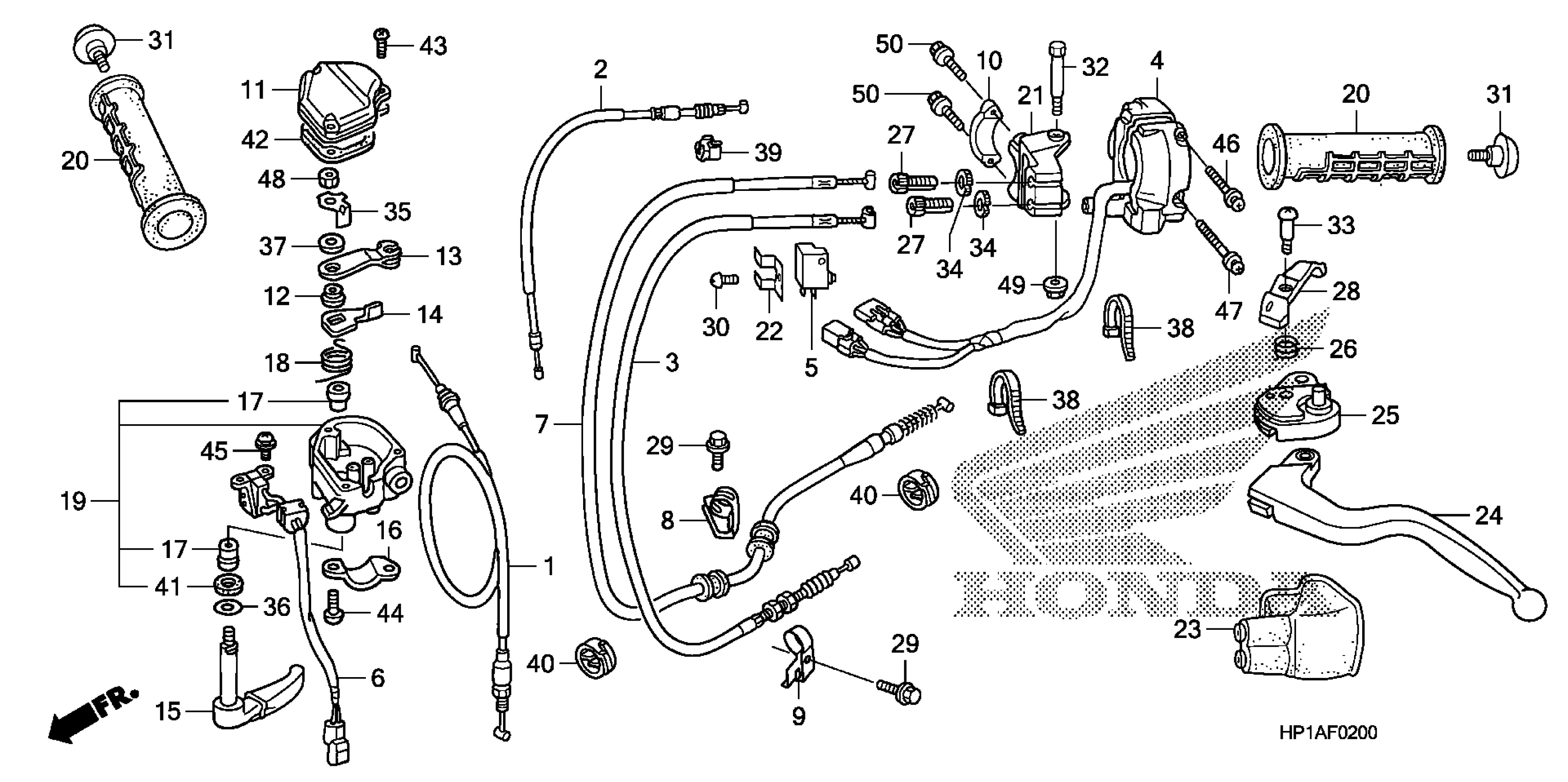

Honda TRX450ER3A (09) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE327-9K200001 TO JH2TE327-9K299991 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HP1-600

$32.17

3

CABLE, CLUTCH

22870-HP1-600

$25.29

4

SWITCH ASSY. This part replaces 35150-HP1-A01.

35150-HP1-A03

$130.19

4

SWITCH ASSY. This part replaces 35150-HP1-A02.

35150-HP1-A03

$130.19

5

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$18.57

5

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

6

SWITCH ASSY., THROTTLE LEVER

35370-HP1-601

$47.26

7

CABLE, PARKING BRAKE

43455-HP1-600

$46.57

8

CLAMP A, PARKING BRAKE

43457-HP1-600

$4.36

9

CLAMP B, PARKING BRAKE

43459-HP1-600

$3.97

10

HOLDER, MASTER CYLINDER

45517-GW0-751

$12.41

11

COVER, THROTTLE LEVER

53141-HP1-600

$28.56

12

COLLAR, THROTTLE LEVER

53143-HP1-600

$5.16

13

ARM, THROTTLE (UPPER)

53144-HP1-600

$3.48

14

ARM, THROTTLE (LOWER)

53145-HP1-601

$2.11

15

LEVER, THROTTLE

53146-HP1-600

$30.00

16

HOLDER, THROTTLE CASE

53147-HP1-600

$3.44

17

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

18

SPRING, THROTTLE RETURN

53149-HP1-600

$3.10

19

CASE ASSY., THROTTLE LEVER

53150-HP1-305

$51.13

20

GRIP, HANDLE

53165-HP1-000

$34.02

21

BRACKET, L. HANDLE LEVER

53172-HP1-600

$40.89

22

PLATE, CLUTCH SWITCH

53173-HM3-A00

$6.38

23

COVER, L. HANDLE LEVER

53177-HM3-000

$10.62

24

LEVER, L. HANDLEBAR (COO) This part replaces 53178-HP1-000.

53178-HP1-305

$35.90

24

LEVER, L. HANDLEBAR (COO)

53178-HP1-305

$35.90

25

ARM ASSY., PARKING

53180-HM3-000

$41.39

26

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

27

BOLT, WIRE ADJUSTING

53192-268-000

$6.72

28

LEVER, PARKING BRAKE LOCK

53192-965-000

$21.58

29

BOLT, FLANGE (6X12)

90103-MCS-G00

$1.49

30

SCREW, PAN (5X10)

90104-ML7-920

$2.92

31

BOLT, GRIP END

90109-HP1-000

$2.02

32

BOLT, HANDLE LEVER PIVOT

90115-HB5-671

$4.80

33

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.92

34

NUT, FIXING

90321-315-670

$7.31

35

WASHER, LOCK (6MM)

90501-HP1-600

$2.70

36

WASHER (9X20)

90504-HA0-000

$2.28

37

WASHER, CRANK ARM

90545-044-000

$1.75

38

BAND, WIRE

90650-KW3-000

$4.48

40

CLIP, WIRE HARNESS

90683-KJ2-003

$3.56

41

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

41

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

42

GASKET, THROTTLE CASE

91532-HP1-600

$4.89

43

SCREW, PAN (4X16)

93500-04016-0G

$1.49

44

SCREW, PAN (5X14)

93500-05014-0G

$3.67

45

SCREW-WASHER (3X8)

93892-03008-08

$1.49

46

SCREW-WASHER (5X25)

93892-05025-07

$1.49

46

SCREW-WASHER (5X25) This part replaces 93892-05025-17.

93892-05025-07

$1.49

47

SCREW-WASHER (5X25)

93892-05025-07

$1.49

47

SCREW-WASHER (5X25) This part replaces 93892-05025-17.

93892-05025-07

$1.49

48

NUT, HEX. (6MM)

94002-06000-0S

$1.49

49

NUT, FLANGE (6MM)

94050-06000

$1.49

50

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
