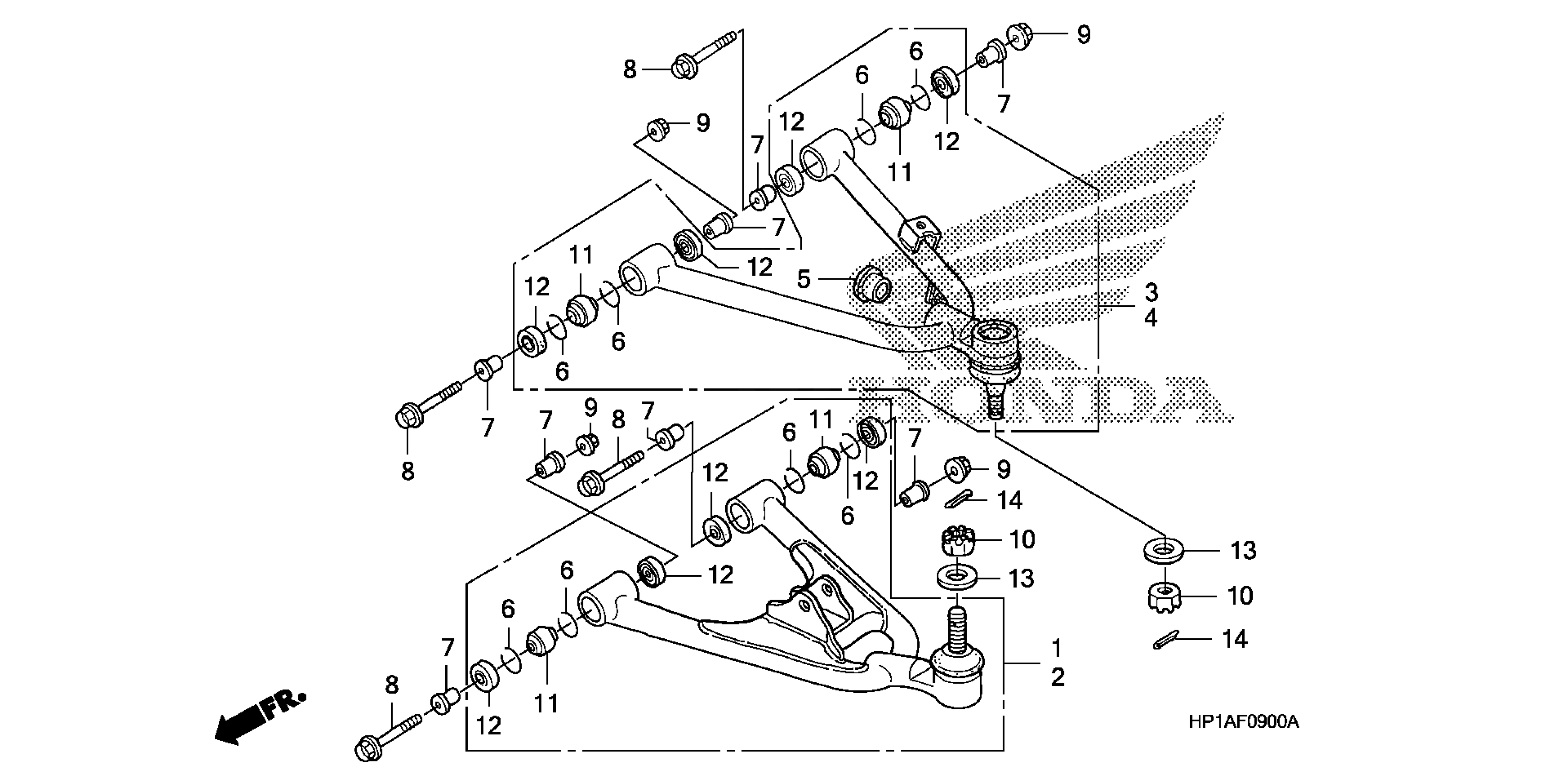

Honda TRX450ER3A (09) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE327-9K200001 TO JH2TE327-9K299991 FRONT ARM Diagram

ARM ASSY., R. FR. (LOWER)

51350-HP1-A20

$201.83

ARM ASSY., L. FR. (LOWER)

51360-HP1-A20

$201.83

ARM ASSY., R. FR. (UPPER)

51370-HP1-A60

$186.65

ARM ASSY., L. FR. (UPPER)

51380-HP1-A60

$178.61

CAP, ARM (UPPER)

51391-HP6-A00

$2.03

RING, STOPPER

51393-HB9-670

$4.64

COLLAR, FR. ARM PIVOT

51394-HC0-000

$10.12

BOLT, FLANGE (10X62)

90183-HC0-770

$9.41

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

NUT, CASTLE (12MM)

90310-HB9-000

$5.63

BEARING, SPECIAL (10MM) (THOMPSON)

91077-HB9-672

$34.40

DUST SEAL, FR. ARM PIVOT (ARAI)

91265-HB9-671

Unavailable

WASHER, PLAIN (12MM)

94102-12000

$1.12

PIN, SPLIT (3.0X18)

94201-30180

$0.94
