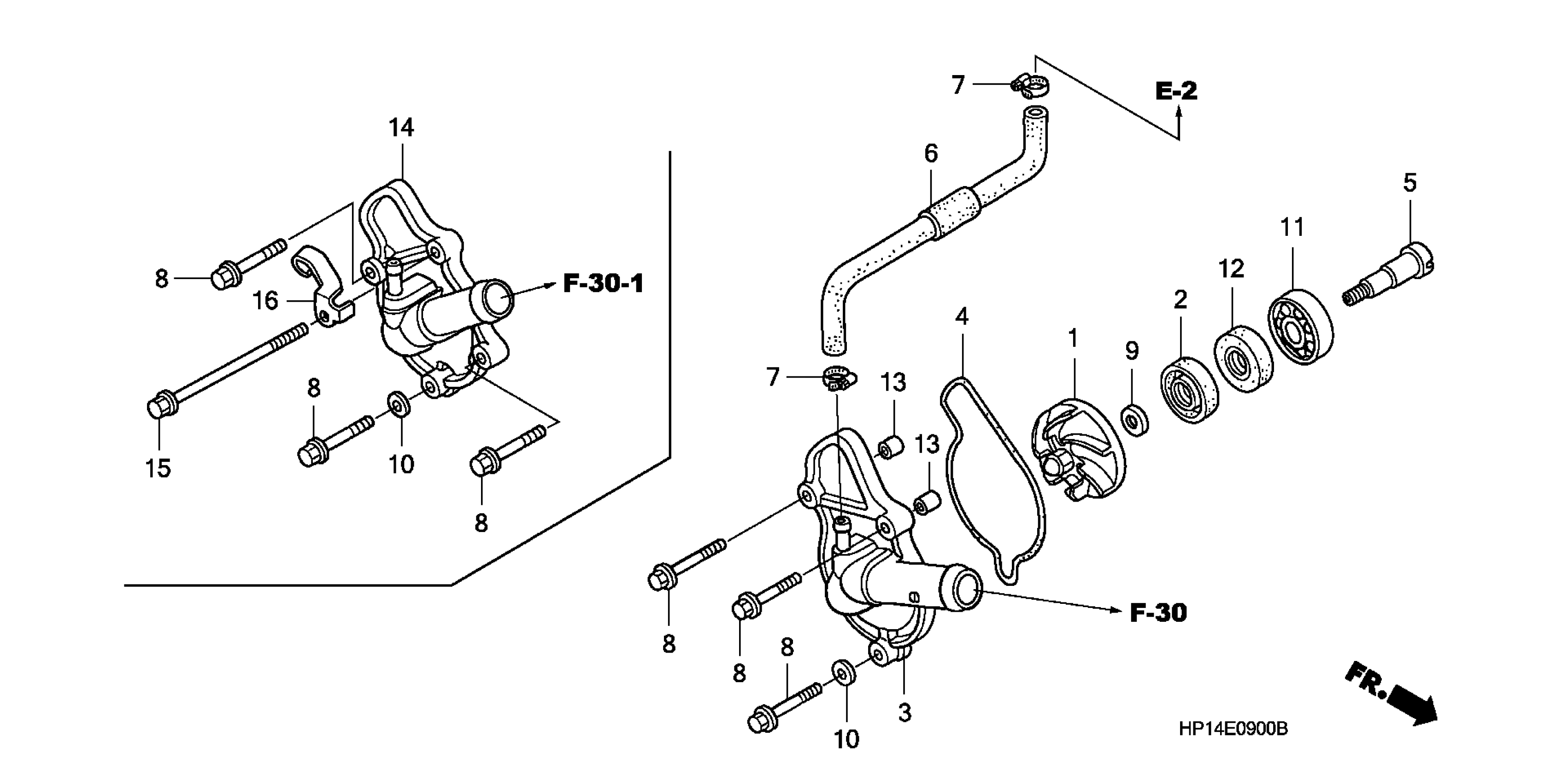

Honda TRX450ER3A (08) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE327-8K100001 TO JH2TE327-8K199999 WATER PUMP Diagram

IMPELLER, WATER PUMP

19215-HP1-670

$41.78

SEAL, MECHANICAL

19217-MAL-300

$48.70

GASKET, WATER PUMP COVER

19226-MEB-670

$4.84

SHAFT, WATER PUMP

19241-MEY-670

$55.46

HOSE, WATER

19505-HP1-600

$16.43

CLAMP, BREATHER HOSE

19507-MK4-620

$8.68

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.17

WASHER, SEALING (7MM)

90447-KE1-000

$2.46

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

BEARING, RADIAL BALL (12X28X7) (NTN)

91001-KA4-003

$15.68

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$3.87

OIL SEAL (12X22X5)

91201-965-000

$3.87

PIN, DOWEL (8X7)

91320-KE1-000

$2.06

COVER, WATER PUMP

19220-HP1-600

$79.60

BOLT, FLANGE (6X80) (NSHF)

90004-GHB-790

$5.28

GUIDE, WATER HOSE

90610-HP1-600

$11.06
