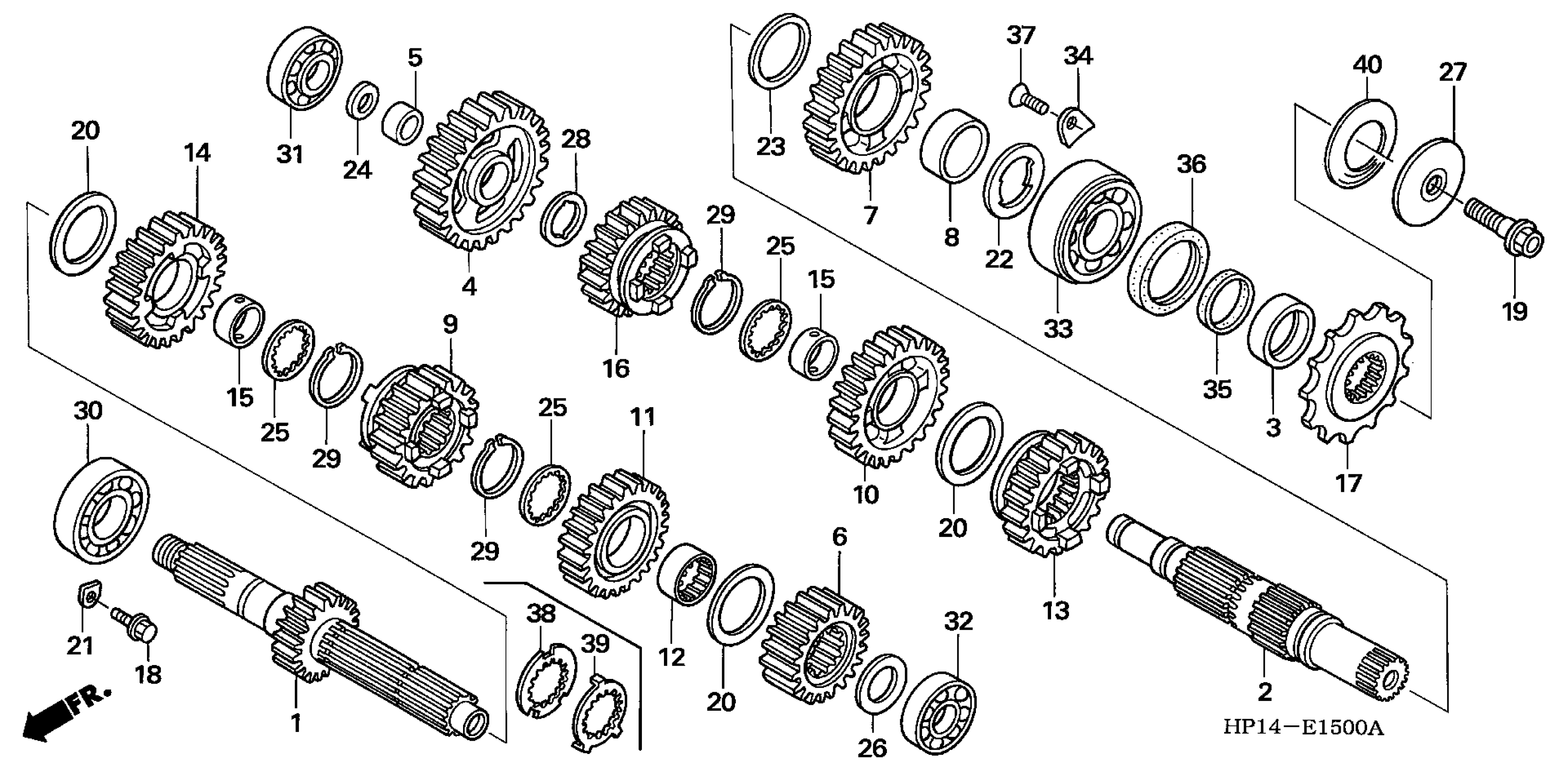

Description

Price

1

MAINSHAFT (13T)

23210-HP1-600

$138.94

2

COUNTERSHAFT

23220-HP1-600

$132.88

3

COLLAR, COUNTERSHAFT

23225-HP1-670

$14.49

4

GEAR, COUNTERSHAFT LOW (29T)

23411-HP1-600

$93.94

5

COLLAR, COUNTERSHAFT LOW GEAR (19X22X10.1)

23412-HP1-670

$10.26

6

GEAR, MAINSHAFT SECOND (14T)

23421-HP1-600

$45.72

7

GEAR, COUNTERSHAFT SECOND (25T)

23431-HP1-600

$87.32

8

COLLAR, COUNTERSHAFT SECOND (27X30X10)

23432-HP1-670

$10.26

9

GEAR, MAINSHAFT THIRD (16T)

23441-HP1-600

$90.63

10

GEAR, COUNTERSHAFT THIRD (23T)

23451-HP1-600

$82.96

11

GEAR, MAINSHAFT FOURTH (22T)

23461-HP1-600

$84.39

12

COLLAR, MAINSHAFT FOURTH GEAR SPLINE

23462-HP1-600

$11.49

13

GEAR, COUNTERSHAFT FOURTH (26T)

23471-HP1-600

$102.03

14

GEAR, MAINSHAFT FIFTH (27T)

23481-HP1-600

$86.69

15

COLLAR (25X28X9.7)

23482-HP1-670

$9.46

16

GEAR, COUNTERSHAFT FIFTH (26T)

23491-HP1-600

$99.09

17

SPROCKET, DRIVE (13T)

23802-MEN-730

$35.47

18

BOLT, FLANGE (6X14) (NSHF)

90004-GHB-620

$3.18

19

BOLT, UBS (8X33)

90112-413-000

$3.59

20

WASHER (25X32X1.0)

90401-HP1-670

$2.61

21

PLATE, BEARING HOLDER

90441-KA4-700

$3.12

22

WASHER, SPECIAL (24MM)

90445-HP1-670

$3.21

23

WASHER, THRUST (27.2X35)

90446-ML3-870

$4.53

24

WASHER, THRUST (17.2MM)

90446-357-000

$3.35

25

WASHER, SPLINE (25X31X1.0)

90451-HP1-670

$2.46

26

WASHER, SPECIAL (17MM)

90451-KAE-010

$4.30

27

COLLAR, DRIVE SPROCKET

23802-KSC-670

$13.19

28

WASHER, THRUST (19MM)

90554-KA5-680

$4.07

29

CIRCLIP (OUTER) (25MM)

90602-259-010

$5.73

30

BEARING, RADIAL BALL (25X56X15)

91003-HP1-601

$34.63

31

BEARING, RADIAL BALL

91003-KJ1-003

$20.71

31

BEARING, RADIAL BALL This part replaces 91003-KR1-766.

91003-KJ1-003

$20.71

32

BEARING, SPECIAL RADIAL BALL (6203) (KOYO)

91022-KV3-003

$12.59

33

BEARING, RADIAL BALL (24X56X22.1)

91006-HP1-671

$42.71

34

PLATE, COUNTERSHAFT BEARING

91012-HP1-670

$2.67

35

D-RING (23.75MM) (ARAI)

91201-ML3-873

$3.41

36

OIL SEAL (31X40X7) (ARAI)

91207-ML3-871

$9.17

37

SCREW, SPECIAL FLAT (6X12)

90003-KRN-670

$1.86

38

WASHER, SPLINE (25MM)

90461-MY9-920

$2.20

39

WASHER, LOCK (25MM)

90462-MY9-920
