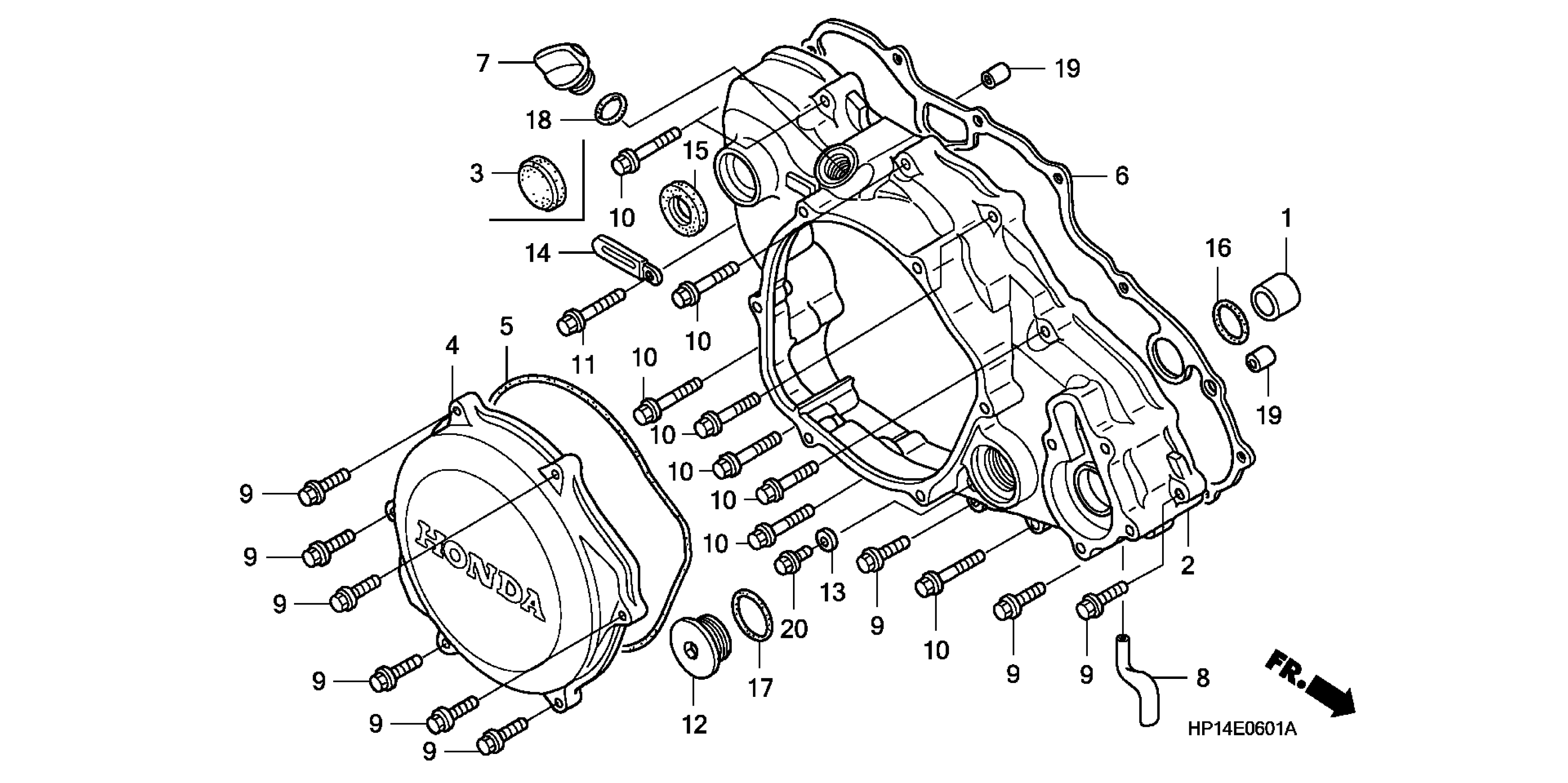

Honda TRX450ER3A (08) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE327-8K100001 TO JH2TE327-8K199999 RIGHT CRANKCASE COVER ('06-) Diagram

Description

Price

COLLAR, WATER PASS (18MM)

11102-MEB-670

$3.26

COVER, R. CRANKCASE

11331-HP1-600

$200.29

CAP (28MM)

11332-HP1-601

$10.76

COVER, CLUTCH

11351-HP1-670

$89.33

O-RING, CLUTCH COVER

11352-HP1-670

$6.21

GASKET, R. COVER

11394-HP1-600

$24.17

CAP, OIL FILLER

15611-KA4-710

$14.40

HOSE, DRAIN

19507-HP1-670

$17.26

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.33

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$4.07

BOLT, FLANGE (6X45) (NSHF)

90004-GHB-720

$4.22

CAP (30MM)

90087-HB5-000

$16.69

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

CLIP (4X50)

90601-KJ9-000

$3.08

O-RING (17.8X2.4) (SHOWA)

91256-383-721

$2.30

O-RING (27X2) (ARAI)

91305-KF0-003

$2.92

O-RING (18X3)

91307-035-000

$2.92

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
