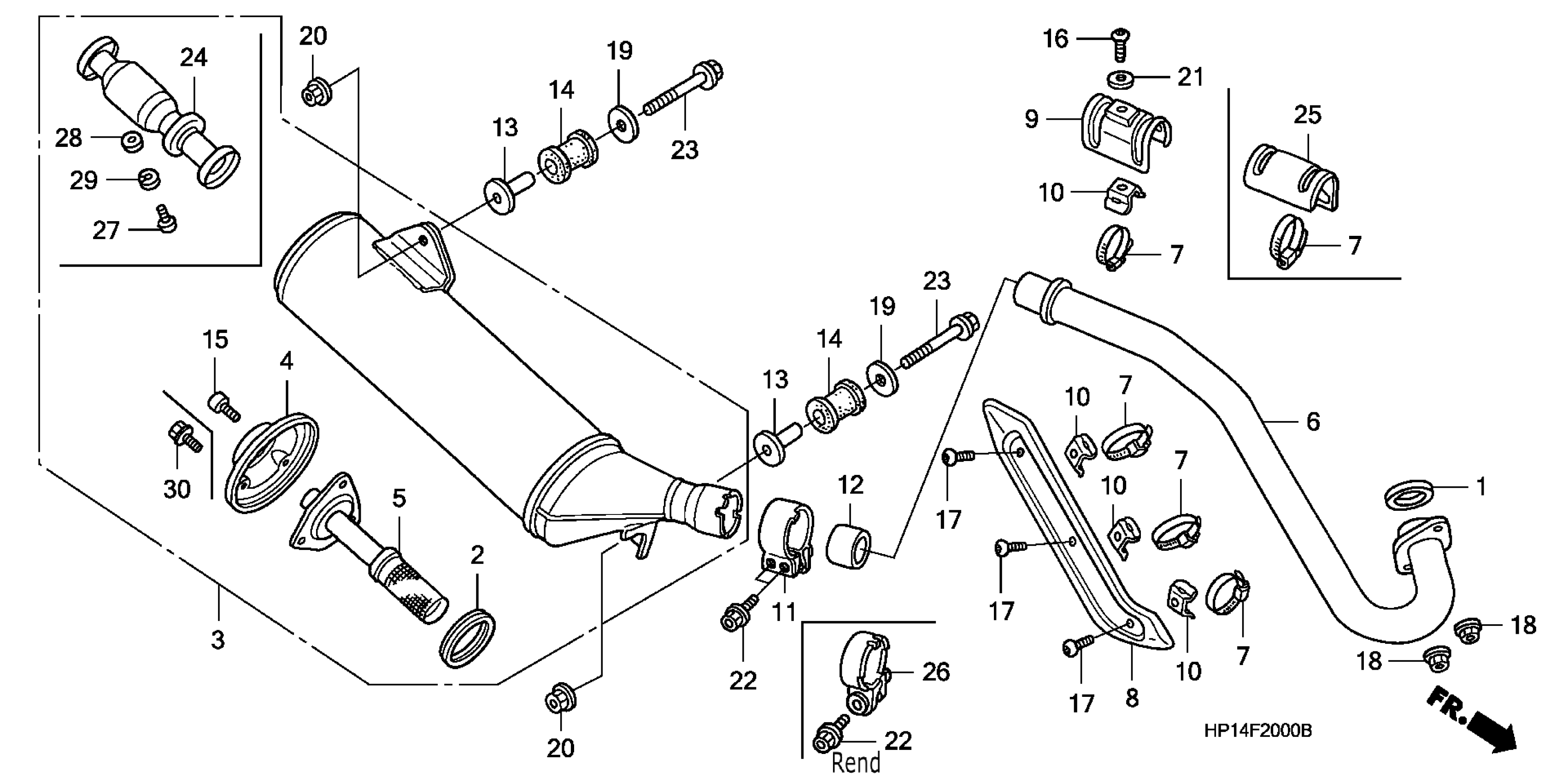

Honda TRX450ER3A (08) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE327-8K100001 TO JH2TE327-8K199999 MUFFLER Diagram

GASKET, EX. PIPE

18291-MEB-670

$4.92

GASKET, MUFFLER

18292-MV4-000

$8.68

MUFFLER ASSY.

18300-HP1-A00

$735.43

MUFFLER ASSY. This part replaces 18300-HP1-305.

18300-HP1-A00

$735.43

COVER, MUFFLER TAIL

18316-HP1-600

$60.82

ARRESTER, SPARK

18317-HP1-600

$72.31

PIPE, EX.

18320-HP1-600

$138.36

BAND, EX. PIPE COVER

18325-HN2-000

$11.15

PROTECTOR, EX. PIPE

18326-HP1-600

Unavailable

STAY, EX. PIPE PROTECTOR B

18328-HP1-000

$32.52

GASKET, RR. MUFFLER

18392-MJ4-670

$16.06

COLLAR, RUBBER MOUNTING

50607-HP1-000

$6.21

RUBBER, MUFFLER MOUNTING

50608-HP1-000

$14.03

BOLT, SPECIAL (6MM)

90170-HP1-000

$2.11

NUT, FLANGE (8MM)

90301-HM8-000

$2.70

WASHER (8MM)

90505-VA5-700

$4.55

NUT, FLANGE (8MM)

94050-08000

$1.49

BOLT, FLANGE (8X35)

96300-08035-07

$1.49

BOLT, FLANGE (8X55)

96300-08055-00

$2.39

DIFFUSER, TAIL

18318-HP1-600

$64.91

PROTECTOR B, EX. PIPE

18327-HP1-600

$19.00

BAND, L. RR. MUFFLER

18376-MG7-000

$27.11

SCREW, BUTTON TORX (5X10)

90380-GEM-700

$1.49

WASHER, PLAIN (5MM)

94101-05000

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.62

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
