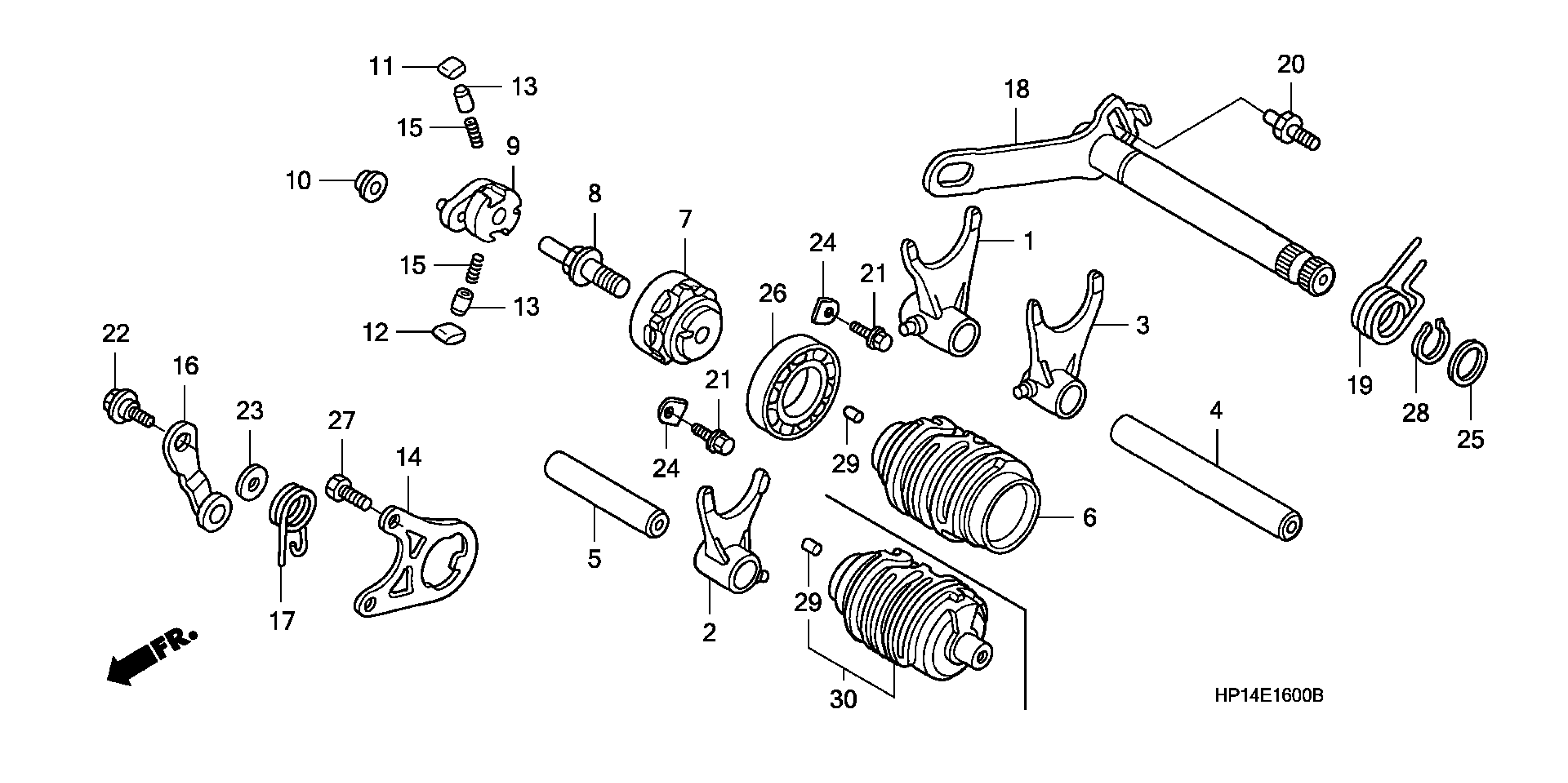

Honda TRX450ER3A (08) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE327-8K100001 TO JH2TE327-8K199999 GEAR SHIFT DRUM Diagram

FORK, R. GEARSHIFT

24211-HP1-600

$49.52

FORK, CENTER GEARSHIFT

24212-HP1-600

$50.68

FORK, L. GEARSHIFT

24221-MEY-671

$59.85

SHAFT A, SHIFT FORK

24241-HP1-600

$15.93

SHAFT B, SHIFT FORK

24242-HP1-600

$12.37

CENTER, GEARSHIFT DRUM

24312-KA3-741

$63.47

PIN, SHIFTER

24315-HA0-000

$11.56

SHIFTER, DRUM

24321-MEB-670

$33.79

COLLAR, SHIFTER

24322-MM4-000

$4.88

PAWL A, RATCHET

24324-KA3-711

$12.13

PAWL B, RATCHET

24325-KA3-711

$12.13

PLUNGER, PAWL

24326-KBH-901

$5.56

PLATE, GUIDE

24328-MEB-670

$11.79

SPRING, PAWL PLUNGER

24329-KA3-740

$2.71

STOPPER, DRUM

24430-KA3-740

$20.10

SPRING, DRUM STOPPER

24435-HP1-600

$4.76

SPINDLE, GEARSHIFT

24610-HP1-600

$67.71

SPRING, SHIFT RETURN

24651-HP1-600

$5.47

PIN, GEARSHIFT RETURN SPRING

24652-HA0-000

$7.84

BOLT, FLANGE (6X14) (NSHF)

90004-GHB-620

$3.26

PIVOT, SHIFT DRUM STOPPER ARM

90022-HP1-670

$3.19

WASHER, DRUM STOPPER

90417-360-000

$1.60

PLATE, BEARING HOLDER

90441-KA4-700

$3.19

WASHER (14MM)

90451-155-000

$3.62

BEARING, BALL (6805LU)

91008-MEY-671

$15.47

BOLT, HEX. (6X16)

93301-06016-0A

$1.35

CIRCLIP (OUTER) (14MM)

94510-14000

$0.94

ROLLER (4X8)

96220-40080

$0.47

DRUM, GEARSHIFT

24310-HP1-600

$61.47
