Description

Price

1

MAT H, L. RR. COVER

11368-MCT-771

$2.67

2

PETCOCK ASSY.

16950-HP1-A01

$83.93

3

SCREEN SET

16952-HP1-A01

$22.78

4

TUBE, FUEL

16956-HP1-A00

$13.27

5

LEVER, PETCOCK

16963-HP1-000

$26.94

6

PLATE, FUEL MARK

16965-HP1-000

$30.70

7

O-RING (18.8X3.6)

16997-HP1-A01

$1.90

8

RUBBER, TANK MOUNTING

17508-HP1-000

$17.31

9

COLLAR, TANK SETTING

17509-MK2-680

Unavailable

10

TANK, FUEL

17510-HP1-A00

$394.03

11

PROTECTOR, TANK HEAT (LOWER)

17515-HP1-600

$37.77

12

RUBBER, FUEL TANK MOUNTING

17519-HP1-A00

$3.66

13

PLATE, R. FR. TANK

17521-HP1-A00

$10.44

14

PLATE, L. FR. TANK

17522-HP1-A00

$11.23

15

STAY, FUEL TANK

17525-HP1-A00

$10.56

16

CUSHION, FR. FUEL TANK

17611-MB1-000

$3.42

17

CAP ASSY., FUEL TANK

17620-HP1-000

$33.89

18

TUBE, FUEL CAP BREATHER

17622-HP1-000

$8.07

19

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.48

20

COLLAR, FUEL TANK SETTING

17626-467-000

$4.45

21

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

22

COVER, FUEL TANK NHA79MR (CHAOS BLACK METALLIC-R) | Chaos black metallic-r NHA79MR;

83700-HP1-A00ZD

$90.22

23

RUBBER, TANK COVER

83701-HP1-A00

$9.65

24

RUBBER, RR. TANK COVER

83703-HP1-A00

$3.75

25

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$2.88

26

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.10

27

BOLT, GRIP END

90109-HP1-000

$1.84

28

SCREW, PAN (6X14)

90118-MR1-000

$2.88

29

COLLAR (6X4)

90127-KF0-770

$3.18

30

CLAMP, TUBE (14.0)

90651-HM3-A71

$2.10

31

CLAMP, TUBE (12.0)

90651-HN6-A51

$1.88

32

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

33

CLIP, CABLE (10MM)

90690-GHB-641

$1.99

34

SCREW-WASHER (5X8)

93891-05008-08

$1.06

35

CLIP, TUBE (C9)

95002-50000

$1.14

36

BAND A, BATTERY

95012-11001

$2.77

37

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

38

RUBBER, FR. TANK COVER

83702-HP1-A00

$3.43

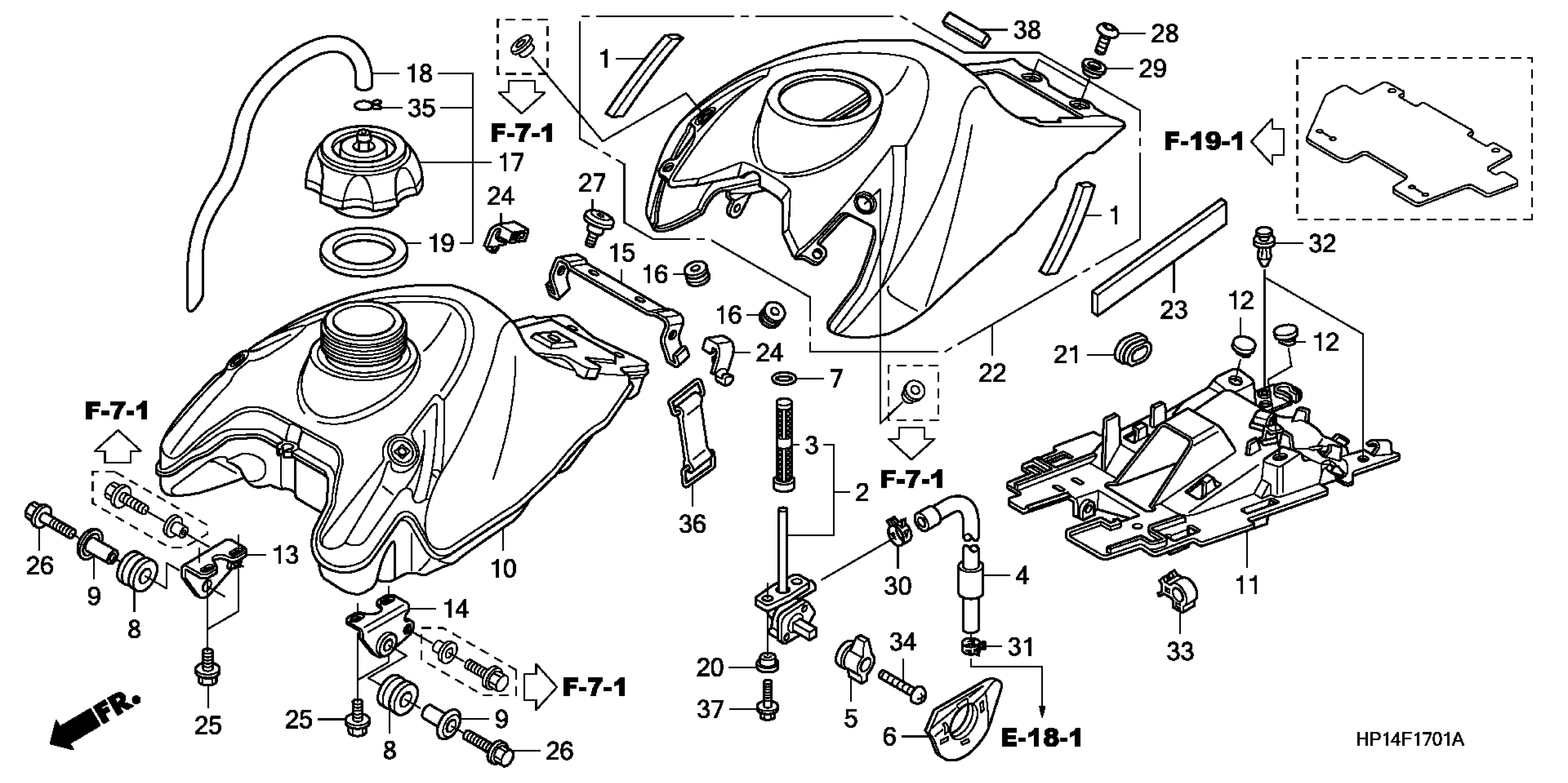

Honda TRX450ER3A (08) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE327-8K100001 TO JH2TE327-8K199999 FUEL TANK ('08) Diagram
