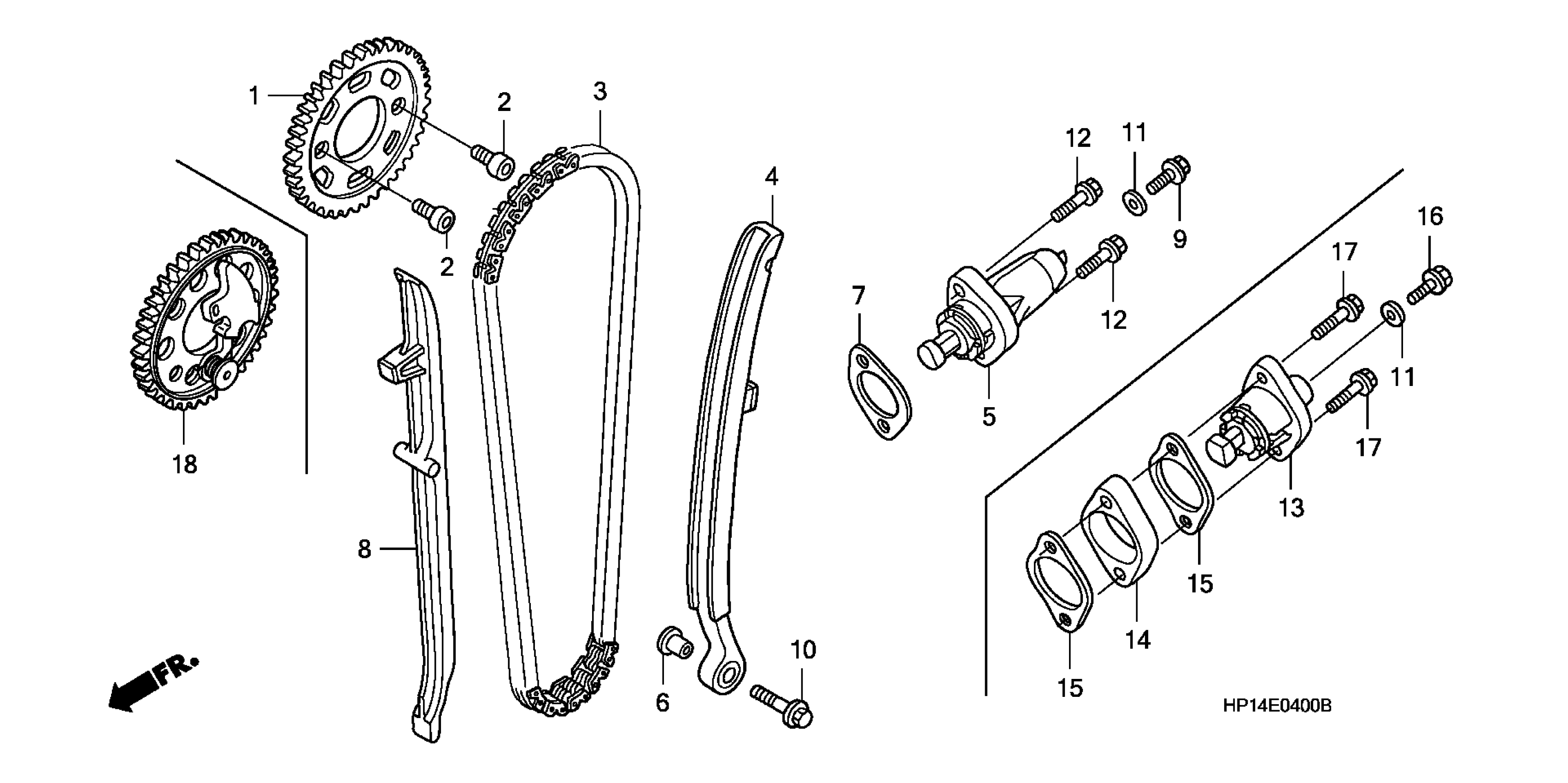

Honda TRX450ER3A (08) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE327-8K100001 TO JH2TE327-8K199999 CAM CHAIN + TENSIONER Diagram

BOLT, SPECIAL KNOCK (7X10.4)

14322-MN1-670

$7.53

CHAIN, CAM (112L) (BORG WARNER)

14401-MEB-671

$55.83

TENSIONER, CAM CHAIN

14510-MEB-670

$52.73

COLLAR, TENSIONER

14521-HN8-000

$2.95

GUIDE, CAM CHAIN

14620-MEN-671

$43.26

BOLT, SPECIAL FLANGE (6X22)

90088-HP1-670

$1.32

WASHER, SEALING (6MM)

90442-397-000

$2.60

LIFTER ASSY., TENSIONER

14520-MEN-671

$82.64

BASE, LIFTER

14525-HP1-600

$13.34

GASKET, TENSIONER LIFTER

14560-MEN-671

$5.74

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$2.95

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.17

SPROCKET, CAM (36T)

14320-HP1-A00

$184.16
