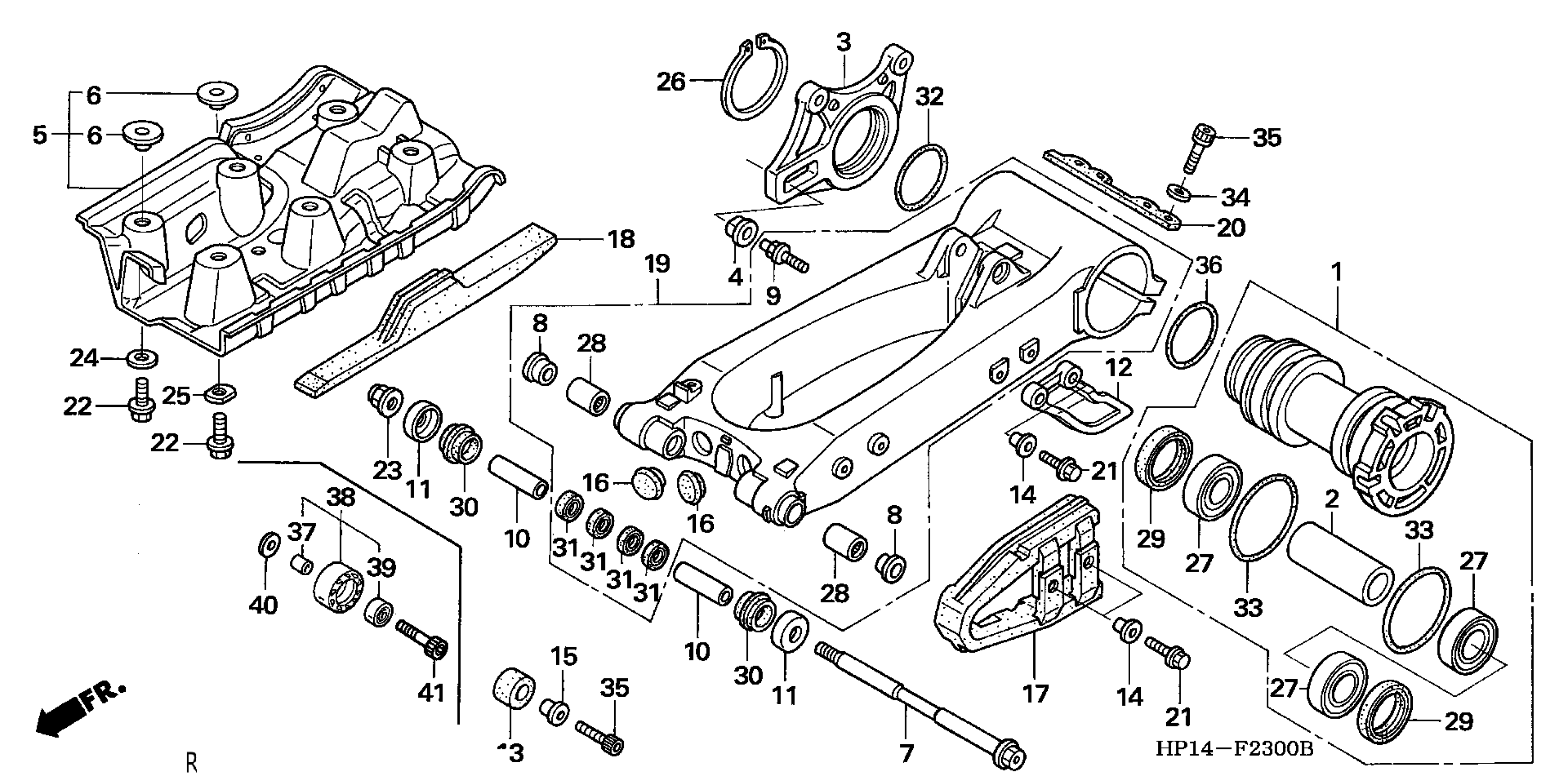

Honda TRX450ER3A (07) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE327-7K000001 TO JH2TE327-7K099999 SWINGARM Diagram

HOLDER ASSY., BEARING

42500-HP1-000

$631.49

COLLAR, RR. AXLE

42621-HP1-000

$71.36

STAY, RR. CALIPER

43211-HP1-000

$65.08

BUSH, RR. BRAKE STAY

43483-HB5-670

$8.83

PLATE, SKID

50355-HP1-600

$59.22

COLLAR, SKID PLATE

50358-HP1-600

$3.13

BOLT, SWINGARM PIVOT

52101-HP1-000

$32.99

BUSH, PIVOT THRUST

52109-KA4-701

$16.01

BOLT, TORQUE LINK

52121-HB9-770

$13.75

COLLAR, SWINGARM PIVOT

52141-HP1-000

$17.81

CAP, DUST SEAL

52144-KA3-731

$14.60

GUARD, DRIVE CHAIN

52156-HP1-000

$28.83

COLLAR, CHAIN GUARD

52159-KB7-000

$6.34

CAP, RR. SWINGARM

52161-HP1-000

$4.67

SLIDER, CHAIN

52170-HP1-000

$42.12

SLIDER, CHAIN This part replaces 52170-HP1-600.

52170-HP1-000

$42.12

SLIDER, CHAIN GUIDE

52181-HN1-A20

$25.56

SWINGARM SUB-ASSY., RR.

52200-HP1-600

Unavailable

SEAL, BEARING HOLDER

52202-HP1-000

$24.56

BOLT, FLANGE (6X22)

90105-HP1-000

$1.49

BOLT, FLANGE (8X20)

90131-GW0-750

$5.12

NUT, U (14MM)

90305-GE8-003

$3.86

WASHER (8.5X26)

90504-MA6-000

$1.66

WASHER (8.5X20)

90526-GB0-930

$2.13

CIRCLIP (OUTER) (70)

90665-964-000

$13.19

BEARING (40X62X12)

91051-HP1-003

$34.76

BEARING, SWINGARM PIVOT (NTN)

91071-MA0-003

$33.10

DUST SEAL (52X62X7) (ARAI)

91252-HA2-003

$16.85

DUST SEAL

91253-KA4-701

$12.86

DUST SEAL This part replaces 91253-KA4-702.

91253-KA4-701

$12.86

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$9.19

O-RING, ROTARY CASE

91351-737-752

$5.53

O-RING, BEARING HOLDER (ARAI)

91353-HA2-003

$6.82

WASHER, PLAIN (8MM)

94102-08000

$1.49

BOLT, SOCKET (8X40)

96700-08040-00

$1.49

O-RING (69X2)

91302-MS2-003

$4.13

O-RING (69X2) This part replaces 91355-HA2-671.

91302-MS2-003

$4.13

COLLAR, CHAIN TENSIONER

52160-MEN-000

$2.72

ROLLER, CHAIN (32)

52175-KSK-000

$36.00

BEARING, RADIAL BALL (608UU)

91011-GCT-003

$18.85

WASHER, PLAIN (8MM)

94102-08800

$1.49

BOLT, SOCKET (8X30)

96700-08030-00

$1.49
