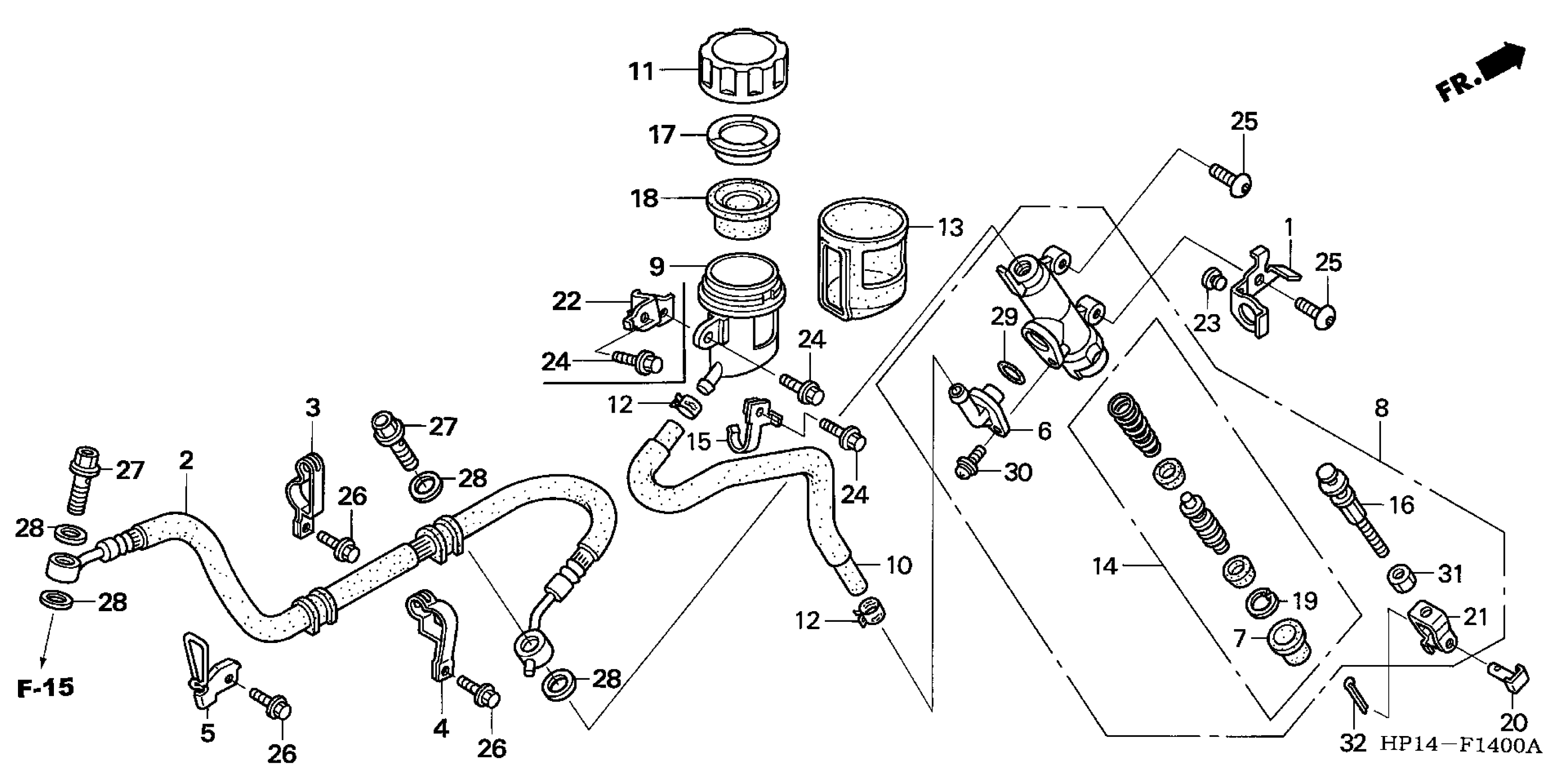

Honda TRX450ER3A (07) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE327-7K000001 TO JH2TE327-7K099999 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

STAY, STOP SWITCH

35351-HP1-600

$5.49

2

HOSE, RR. BRAKE

43310-HP1-602

$51.71

3

CLAMP A, RR. BRAKE HOSE

43462-HP1-600

$3.87

4

CLAMP B, RR. BRAKE HOSE

43464-HP1-600

$3.97

5

GUIDE, BRAKE HOSE

43465-HP1-600

$13.48

6

CONNECTOR

43503-MR7-006

$12.51

7

BOOT

43504-MB2-006

$9.01

8

MASTER CYLINDER SUB-ASSY., RR. BRAKE This part replaces 43510-HP1-006.

43510-HP1-016

$183.84

8

MASTER CYLINDER SUB-ASSY., RR. BRAKE

43510-HP1-016

$183.84

8

MASTER CYLINDER SUB-ASSY., RR. BRAKE This part replaces 43510-HP1-305.

43510-HP1-016

$183.84

9

CUP, MASTER CYLINDER OIL

43511-KS6-702

$23.26

10

HOSE, RR. BRAKE MASTER CYLINDER

43512-HP1-006

$15.28

11

CAP, MASTER CYLINDER

43513-KS6-701

$13.08

12

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

13

COVER, OIL CUP

43516-HP1-000

$25.42

14

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$40.74

14

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$40.74

15

CLAMP, OIL HOSE

43525-HP1-600

$3.87

16

ROD, PUSH

43530-HP1-006

$14.33

17

PLATE, DIAPHRAGM

45518-GM9-711

$4.16

18

DIAPHRAGM

45520-GM9-711

$8.22

19

CIRCLIP

46182-500-013

$4.46

20

PIN, BRAKE ROD

46503-MBW-E10

$3.74

21

JOINT, BRAKE ROD

46504-MAL-601

$12.20

23

PLUG, HOLE

50317-254-000

$2.04

24

BOLT, FLANGE (6X12) (NSHF)

90004-GHB-610

$2.80

25

BOLT, SPECIAL (6X22)

90085-KFB-000

$3.18

26

BOLT, FLANGE (6X12)

90103-MCS-G00

$1.17

27

BOLT, OIL (10X22)

90145-MS9-612

$6.82

28

WASHER, OIL BOLT

90545-300-000

$3.72

29

O-RING (14.8X2.4)

91212-422-006

Unavailable

30

SCREW-WASHER (4X12)

93893-04012-07

$1.22

30

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

31

NUT, HEX. (8MM)

94002-08000-0S

$1.19

32

PIN, SPLIT (2.0X15)

94201-20150

$0.94
