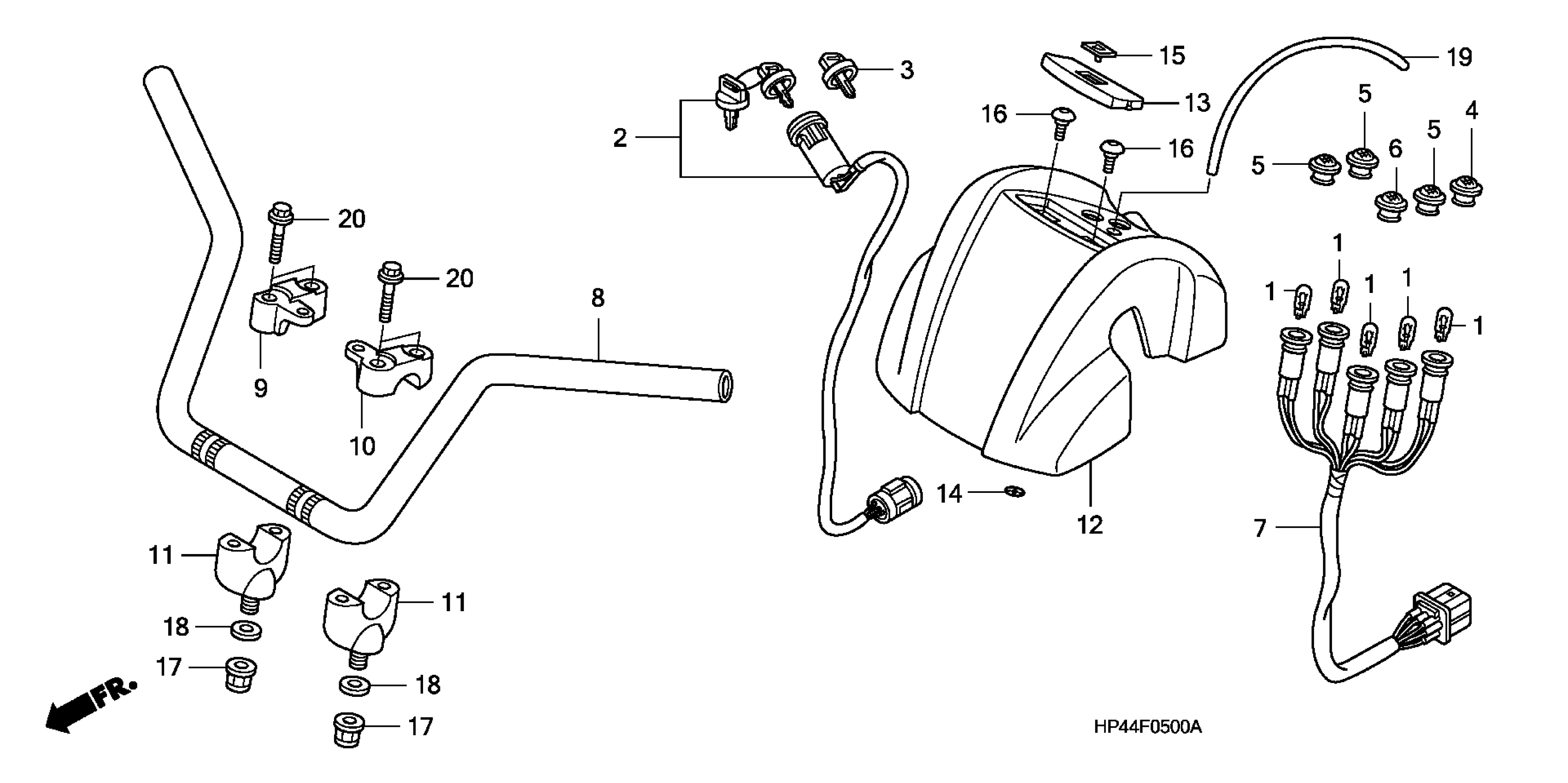

Honda TRX420TMA (08) FOURTRAX RANCHER, USA, VIN# 1HFTE340-84100001 HANDLEBAR (MT) Diagram

BULB, WEDGE BASE (12V 1.7W H.D) (NIPPON SEIKI)

34909-KW3-003

$3.31

SWITCH ASSY., IGNITION

35100-HP5-000

$59.48

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-HF1-881

$9.59

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-HF1-881

$9.59

LENS, OIL INDICATOR (RED)

37602-HM5-670

$3.81

LENS, NEUTRAL INDICATOR (GREEN)

37603-HM5-670

$3.73

SOCKET, INDICATOR

37650-HP4-000

$23.30

HANDLEBAR

53100-HP5-600

$160.69

HOLDER, R. HANDLE (UPPER)

53111-HC3-000

$18.84

HOLDER, L. HANDLE (UPPER)

53121-HC3-000

$18.84

HOLDER, HANDLE (LOWER)

53130-HB3-770

$21.17

COVER, HANDLE *NH1* (BLACK)

53205-HP4-000ZA

$275.89

CAP, HANDLE COVER *NH1* (BLACK)

53206-HP5-000ZA

$5.12

NUT, SPEED (4MM)

64206-MJ0-000

$1.51

EMBLEM, PRODUCT (UEHARA)

86150-HN8-004

$7.66

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.49

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

WASHER (10.3MM)

90521-427-770

$2.28

BULK HOSE, VACUUM (12X1000) (12X130)

95005-12001-20M

$34.11

BOLT, FLANGE (8X35)

95701-08035-08

$1.49
