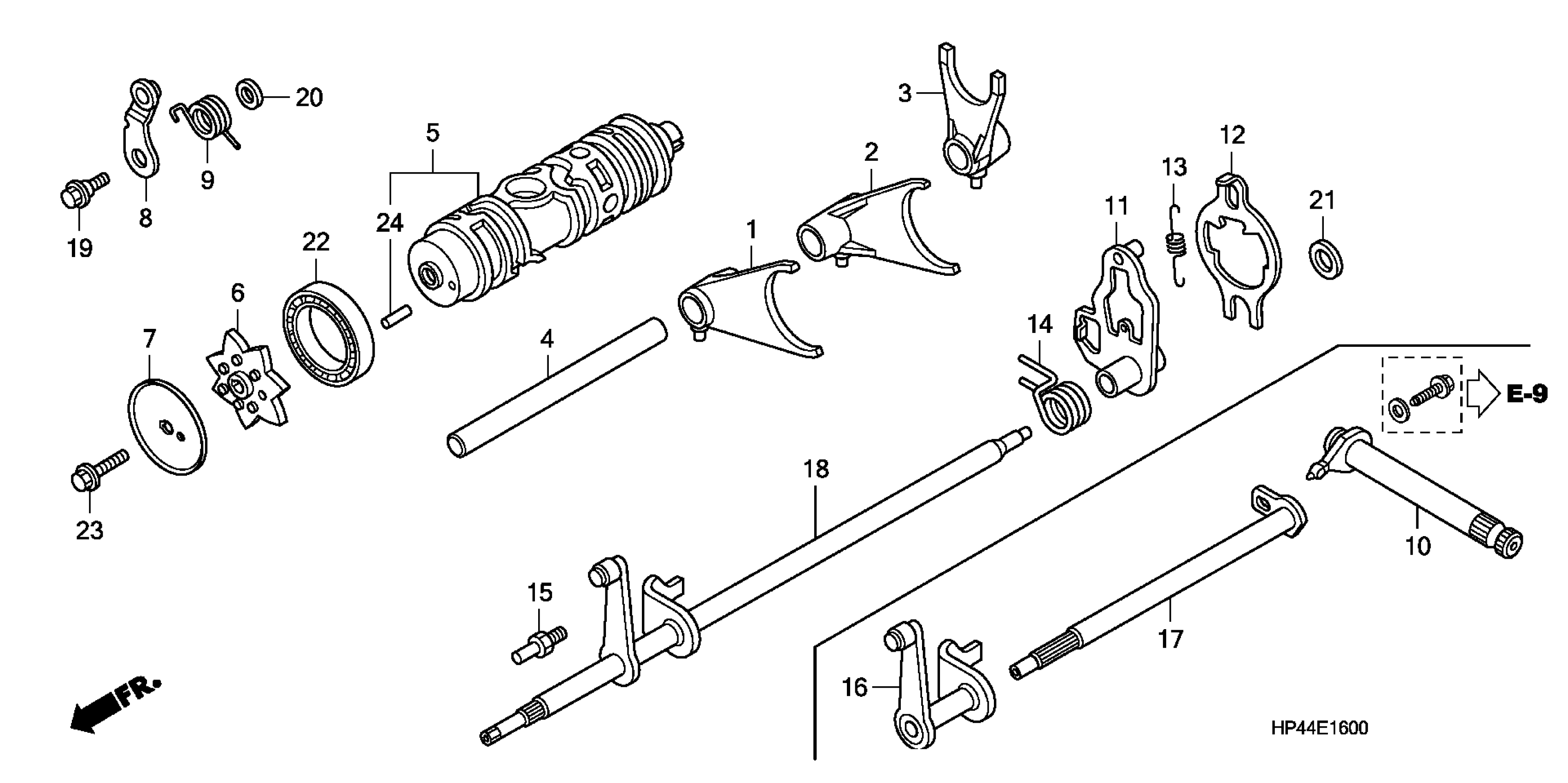

Honda TRX420TMA (08) FOURTRAX RANCHER, USA, VIN# 1HFTE340-84100001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, FR. GEARSHIFT

24211-HP5-A50

$12.72

1

FORK, FR. GEARSHIFT This part replaces 24211-HP5-600.

24211-HP5-A50

$12.72

2

FORK, CENTER GEARSHIFT

24212-HP5-A50

$35.15

2

FORK, CENTER GEARSHIFT This part replaces 24212-HP5-600.

24212-HP5-A50

$35.15

3

SWINGARM, GEARSHIFT

24213-HP5-A50

$12.62

3

SWINGARM, GEARSHIFT This part replaces 24213-HP5-600.

24213-HP5-A50

$12.62

4

SHAFT, GEARSHIFT FORK GUIDE This part replaces 24241-HP0-A50.

24241-HP0-A51

$24.61

4

SHAFT, GEARSHIFT FORK GUIDE

24241-HP0-A51

$24.61

5

DRUM, GEARSHIFT

04104-HP5-505

$237.85

5

DRUM, GEARSHIFT This part replaces 24310-HP5-600.

04104-HP5-505

$237.85

5

DRUM, GEARSHIFT This part replaces 24310-HP5-601.

04104-HP5-505

$237.85

6

SHIFTER, DRUM

24321-HM8-B40

$24.97

7

PLATE, SHIFT GUIDE

24328-HB3-000

$7.19

8

STOPPER, GEARSHIFT DRUM

24430-HP5-600

$14.18

9

SPRING, SHIFT DRUM STOPPER

24435-HP5-000

$3.72

10

SPINDLE, GEARSHIFT This part replaces 24611-HP5-000.

24611-HP5-010

$59.78

10

SPINDLE, GEARSHIFT

24611-HP5-010

$59.78

11

ARM, GEARSHIFT MASTER

24620-HM7-000

$24.05

12

PLATE, GEARSHIFT

24631-HM7-010

$9.10

13

SPRING, SHIFT ARM

24641-HB3-004

$2.90

14

SPRING, GEARSHIFT RETURN

24651-HP5-000

$7.36

15

PIN, RETURN SPRING

24652-KY4-900

$7.99

16

ARM, SUB-GEARSHIFT SPINDLE

24670-HP5-000

$42.64

17

SPINDLE, SUB-GEARSHIFT

24680-HP5-000

$83.33

19

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-MR5-670

$2.33

20

WASHER, DRUM STOPPER

90417-360-000

$1.74

21

WASHER, THRUST (12MM)

90451-GF6-000

$2.13

22

BEARING, RADIAL BALL (6807) (KOYO)

91010-HB7-003

$59.77

23

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

24

ROLLER (4X13.8)

96220-40138

$1.49
