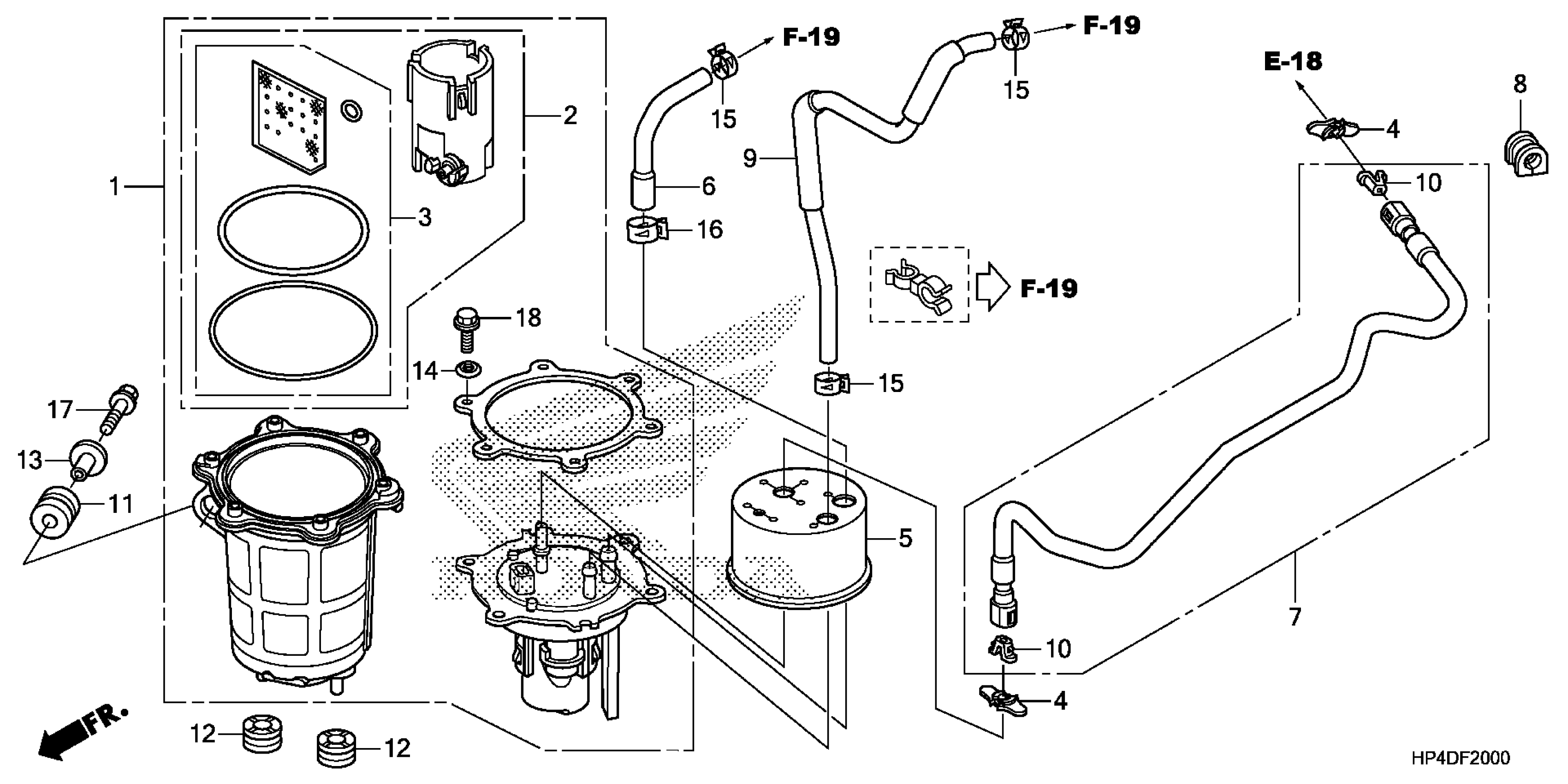

Honda TRX420TEAC (13) RANCHER ES, USA, VIN# 1HFTE344-D4600001 FUEL PUMP Diagram

PUMP ASSY., FUEL (MSDS)

16700-HP5-602

$166.73

FILTER KIT (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17)

16706-HN8-305

$38.48

FILTER SET (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17)

16706-HR0-F01

$22.83

DAMPER, CONNECTOR

16718-HR0-F00

$0.59

COVER, FUEL PUMP

16720-HN8-A60

$8.27

TUBE, FUEL

16955-HP5-A10

$10.43

HOSE, FUEL FEED

17570-HP5-A11

$64.53

RUBBER, FUEL FEED HOSE

17579-HP5-600

$1.79

TUBE, VAPOR

17683-HP5-A10

$16.64

RETAINER (GREEN) (TOKAI)

17711-S0X-A31

$3.44

RUBBER, MUFFLER

18334-KA3-830

$3.71

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.16

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.29

WASHER, CONICAL SPRING

90501-HN8-A60

$0.74

CLAMP, TUBE (12.0)

90651-HN6-A51

$1.91

CLAMP, TUBE (14.0)

90652-HR0-F01

$2.32

BOLT, FLANGE (6X25)

95701-06025-00

$1.79

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable
