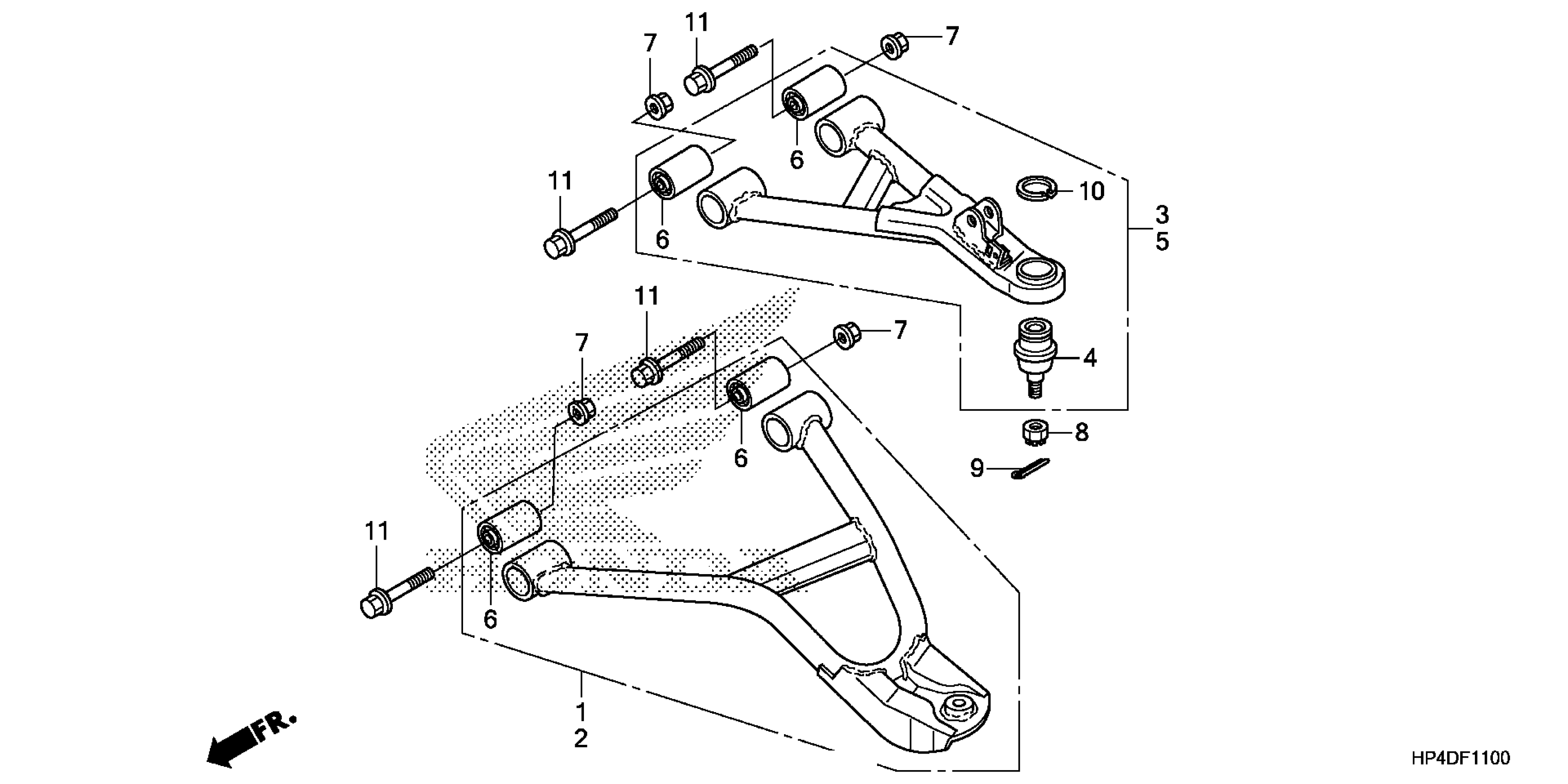

Honda TRX420TEAC (13) RANCHER ES, USA, VIN# 1HFTE344-D4600001 FRONT ARM (2WD) Diagram

#

Description

Price

1

ARM ASSY., R. FR. (LOWER)

51350-HP4-600

Unavailable

2

ARM ASSY., L. FR. (LOWER)

51360-HP4-600

$89.10

3

ARM ASSY., R. FR. (UPPER)

51370-HP5-600

$76.39

4

JOINT A, ARM BALL

51375-HP5-601

$18.30

5

ARM ASSY., L. FR. (UPPER)

51380-HP5-600

$78.31

6

BUSH, FR. ARM (OUTER)

51393-HC4-003

$25.77

7

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.86

8

NUT, CASTLE (12MM)

90310-HB9-000

$5.78

9

PIN, SPLIT (3.0X18)

94201-30180

$0.96

10

CIRCLIP, SPECIAL (OUTER) (34MM)

90603-HP5-600

$3.58

10

CIRCLIP (OUTER) (34MM)

94514-34000

$2.09

11

BOLT, FLANGE (10X62)

90151-HC5-000

$7.40

11

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.40
