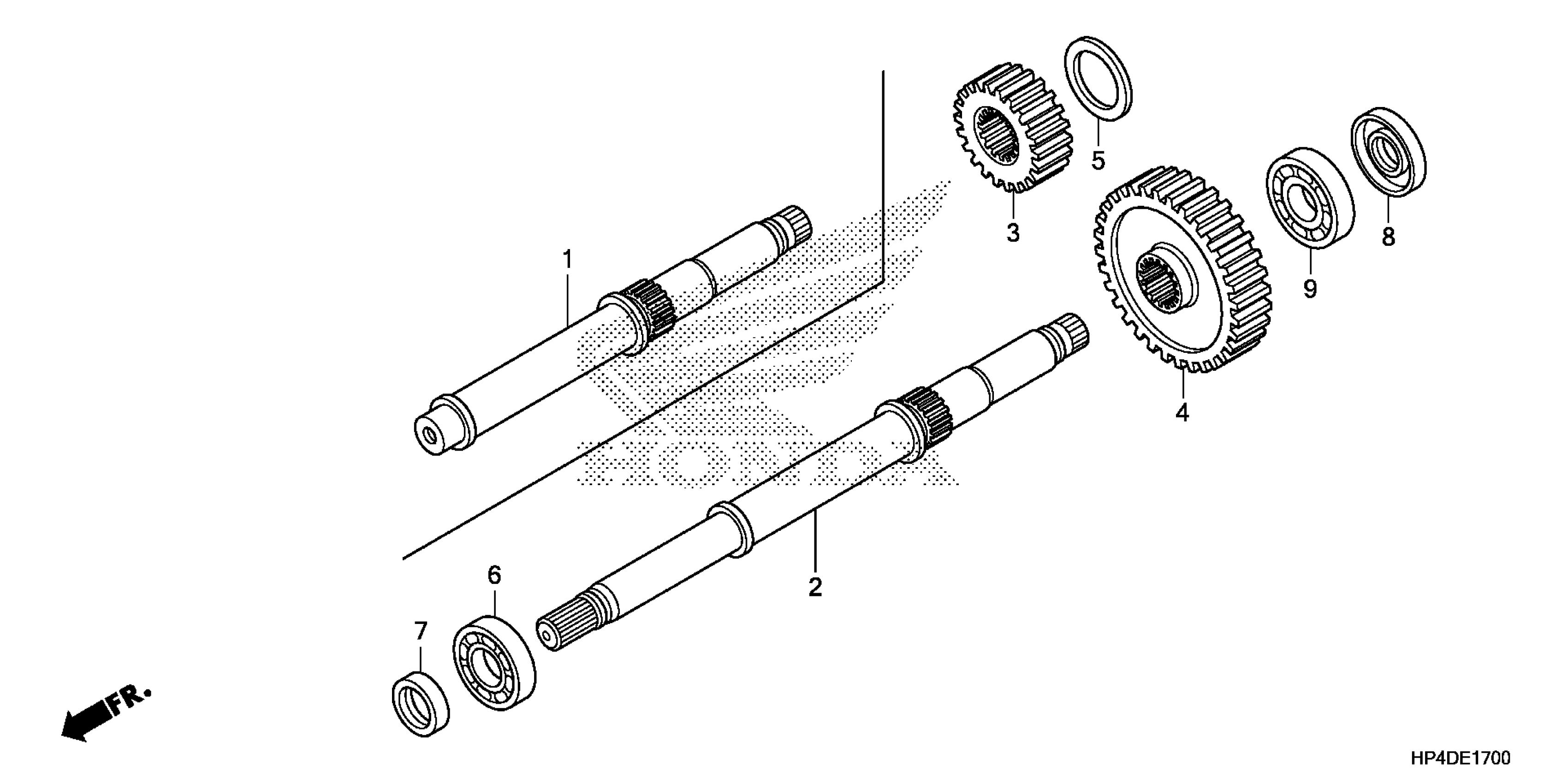

Honda TRX420TEAC (13) RANCHER ES, USA, VIN# 1HFTE344-D4600001 FINAL SHAFT Diagram

SHAFT, FINAL

23611-HP4-600

$76.59

GEAR, FINAL DRIVE (22T)

23621-HP5-600

$28.53

GEAR, FINAL DRIVEN (40T)

23631-HP5-600

$58.69

WASHER C, THRUST (25MM)

90459-357-000

$3.60

BEARING, RADIAL BALL (22X47X14)

91006-HP5-601

$11.84

OIL SEAL (25X45X7)

91204-HR0-F01

$2.92

BEARING, RADIAL BALL (6205)

96100-62050-00

$18.63
