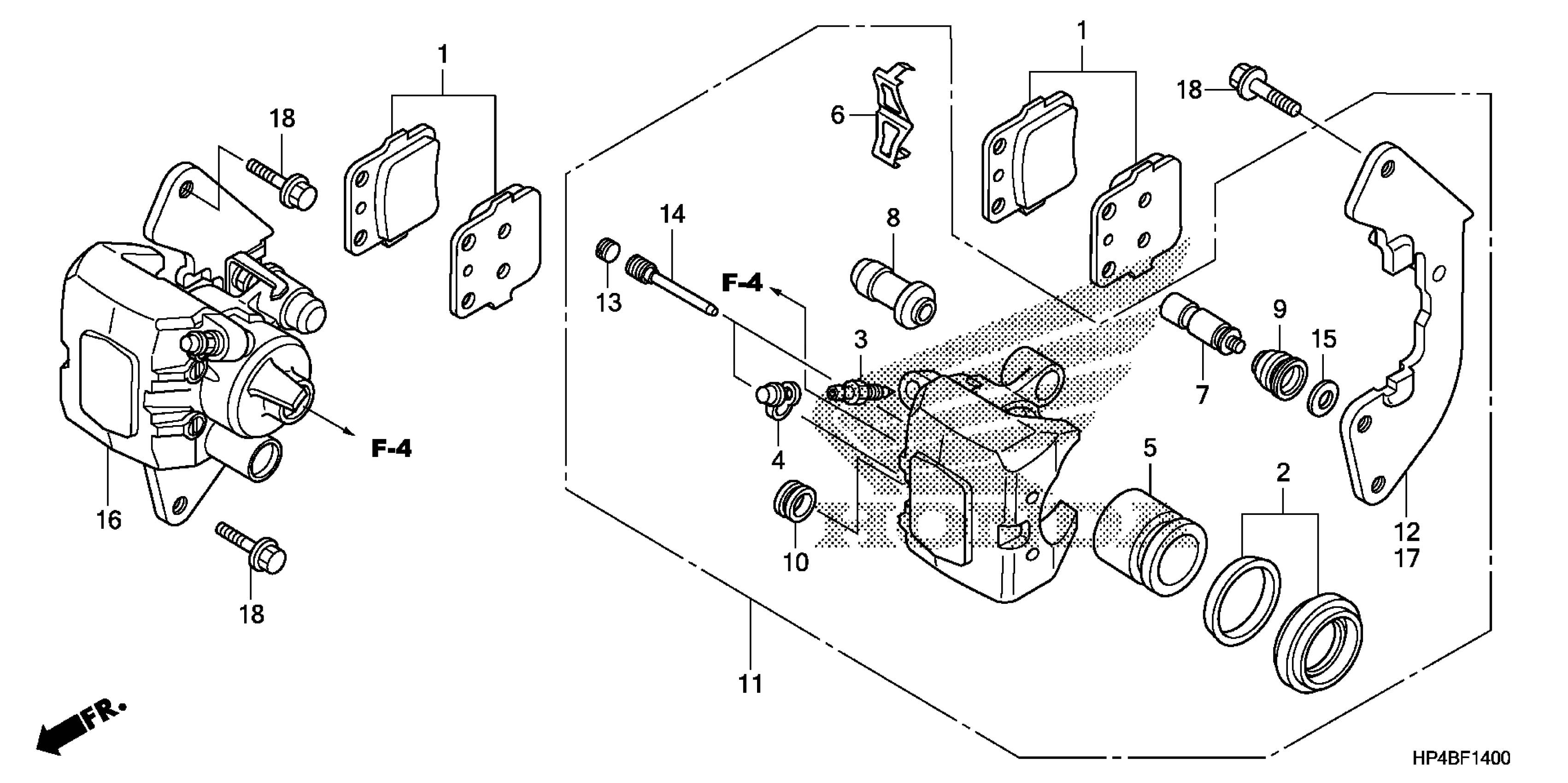

Honda TRX420TEA (12) RANCHER ES, USA, VIN# 1HFTE344-C4500001 FRONT BRAKE CALIPER Diagram

PAD SET, FR. BRAKE

06435-HP7-A01

$17.83

SEAL SET, PISTON

06451-HP5-601

$7.81

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON (32MM)

45107-HP5-601

$40.83

SPRING, PAD

45108-166-006

$7.46

PIN, SLIDE

45115-GE3-602

$11.52

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT, PIN

45133-166-016

$3.85

PLUG, DUST

45134-GE3-601

$4.48

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-HP5-601

$162.25

BRACKET SUB-ASSY., L. FR. CALIPER

45190-HP5-601

$37.31

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER

45215-GE2-016

$11.52

WASHER, CONICAL SPRING

45218-166-006

$3.78

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-HP5-601

$162.25

BRACKET SUB-ASSY., R. FR. CALIPER

45290-HP5-601

$37.31

BOLT, FLANGE (8X20)

90115-HA7-670

$4.24
