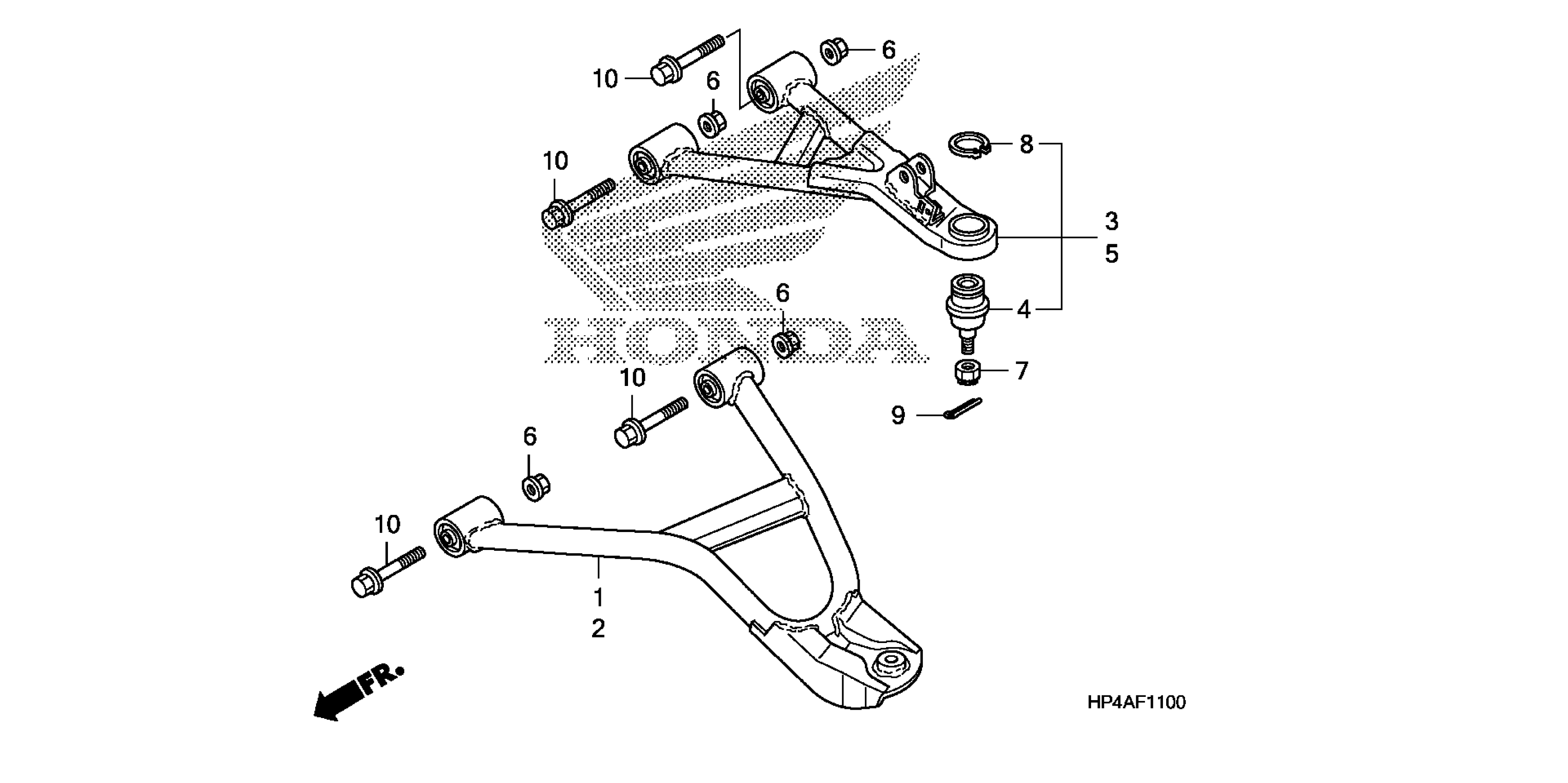

Honda TRX420TEA (09) RANCHER ES, USA, VIN# 1HFTE344-94200001 TO 1HFTE344-94299999 FRONT ARM (2WD) Diagram

ARM ASSY., R. FR. (LOWER)

51350-HP4-600

Unavailable

ARM ASSY., L. FR. (LOWER)

51360-HP4-600

$86.88

ARM ASSY., R. FR. (UPPER)

51370-HP5-600

$74.48

JOINT A, ARM BALL

51375-HP5-601

$17.90

ARM ASSY., L. FR. (UPPER)

51380-HP5-600

$76.35

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

NUT, CASTLE (12MM)

90310-HB9-000

$5.63

CIRCLIP, SPECIAL (OUTER) (34MM)

90603-HP5-600

$3.49

PIN, SPLIT (3.0X18)

94201-30180

$0.94

BOLT, FLANGE (10X62)

90151-HC5-000

$7.22

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.22
