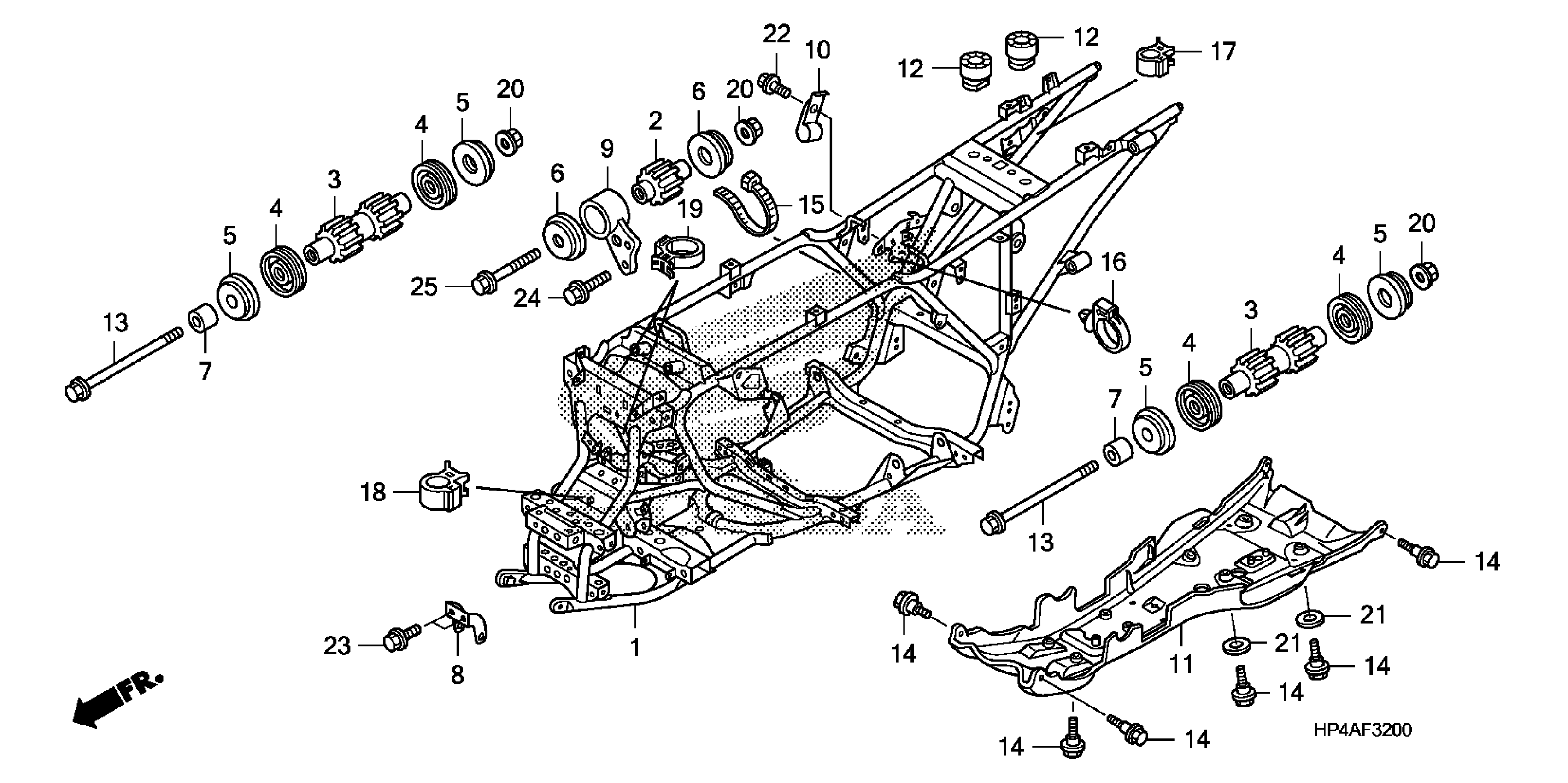

Honda TRX420TEA (09) RANCHER ES, USA, VIN# 1HFTE344-94200001 TO 1HFTE344-94299999 FRAME Diagram

FRAME

50100-HP7-A00

$1,648.57

RUBBER, ENGINE HEAD MOUNTING

50201-HP5-600

$9.76

RUBBER, ENGINE MOUNTING (LOWER)

50202-HP0-A50

$25.21

DUST SEAL, ENGINE MOUNTING

50203-HM7-003

$20.39

RUBBER C, MOUNTING

50204-HM8-000

$6.98

RUBBER C, MOUNTING

50204-HP5-600

$6.81

COLLAR, ENGINE HANGER

50205-HM8-000

$8.16

BRACKET, HEAD HANGER

50351-HP5-600

$10.40

CLAMP, BRAKE CABLE

50352-HN2-000

$1.49

GUARD, ENGINE

50360-HP5-601

$167.26

CUSHION, SEAT MOUNTING

77207-HA0-000

$7.14

BOLT, ENGINE HANGER (10X148)

90103-147-000

$12.74

BOLT, FLANGE (6MM)

90111-147-000

$2.75

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

CLAMP, HARNESS

90652-HC4-003

$5.95

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

CLIP, CABLE (30MM)

90690-GHB-681

$2.92

NUT, FLANGE (10MM)

94050-10000

$1.59

WASHER, PLAIN (8MM)

94103-08800

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (8X22)

95701-08022-00

$2.16

BOLT, FLANGE (10X60)

95701-10060-00

$2.03
