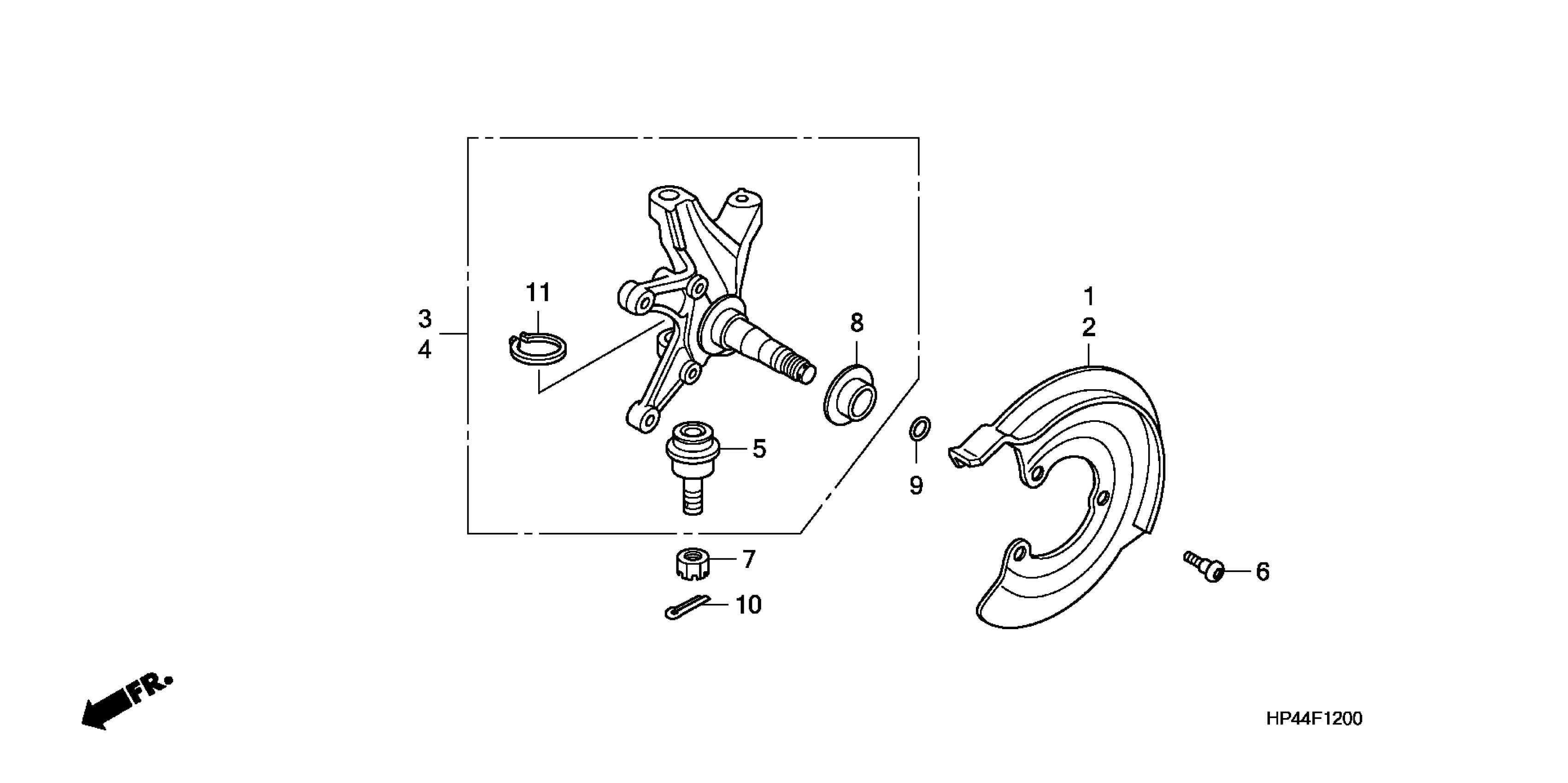

Honda TRX420TEA (08) FOURTRAX RANCHER ES, USA, VIN# 1HFTE344-84100001 FRONT KNUCKLE (2WD) Diagram

#

Description
Price

1

SPLASH GUARD, R.

45255-HP5-600

$15.97

2

SPLASH GUARD, L.

45256-HP5-600

$15.97

3

KNUCKLE ASSY., R.

51200-HP4-600

Unavailable

4

KNUCKLE ASSY., L.

51250-HP4-600

$181.16

5

JOINT A, ARM BALL

51355-HP5-601

$17.30

6

BOLT, SOCKET (6X15)

90114-HP0-A00

$1.96

7

NUT, CASTLE (12MM)

90310-HB9-000

$5.78

8

RING, SIDE SEAL

91258-HP0-671

$15.00

9

O-RING (16.8X1.9)

91347-PY3-000

$2.65

10

PIN, SPLIT (3.0X18)

94201-30180

$0.96

11

CIRCLIP (OUTER) (32MM)

94514-32000

$0.93
