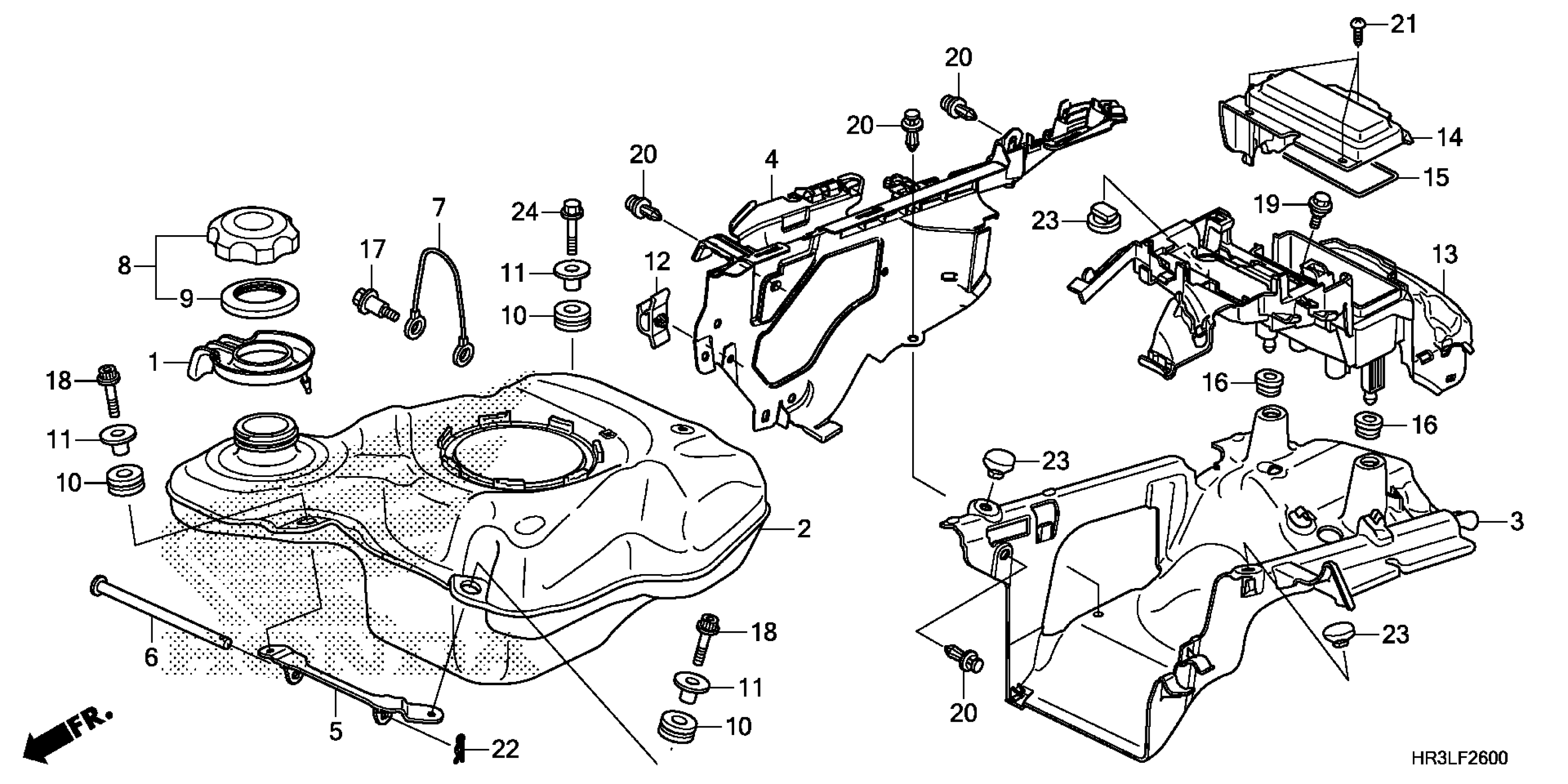

Honda TRX420TE1AC (20) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE392-L4600001 FUEL TANK Diagram

TRAY, FUEL TANK

17507-HR3-A20

$13.98

TANK, FUEL

17510-HR6-B00

$333.21

PROTECTOR, TANK HEAT (LOWER) (A)

17515-HR3-A21

$18.33

PROTECTOR, TANK HEAT (LOWER) (B)

17516-HR3-A21

$7.36

STAY, FUEL TANK

17517-HR3-A20

$9.64

PIN, FUEL TANK JOINT

17518-HR3-A20

$7.49

CABLE, FUEL TANK STOPPER

17575-KPC-D50

$7.95

CAP ASSY., FUEL TANK

17620-HR6-B00

$103.74

CAP ASSY., FUEL TANK

17620-HR6-B01

$97.89

GASKET, FUEL CAP

17624-HR6-B00

$13.51

RUBBER, MUFFLER

18334-KA3-830

$3.89

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

STAY, ECU

35600-HR3-A21

$16.35

LID, RELAY BOX

35610-HR3-A20

$7.47

SEAL, RELAY BOX

35611-HR3-A20

$19.57

GROMMET, SIDE COVER

83551-MA6-000

$3.35

BOLT, SPECIAL (6X28)

90051-PNA-000

$3.02

BOLT, TORX (6X25)

90101-PPD-000

$2.92

BOLT, FLANGE (6MM)

90111-162-000

$2.89

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

SCREW, TAPPING (5X10)

93903-25110

$1.49

PIN, LOCK (8MM)

94251-08000

$1.49

RUBBER C, STAND STOPPER

95011-63000

$3.90

BOLT, FLANGE (6X30)

95701-06030-00

$1.89
