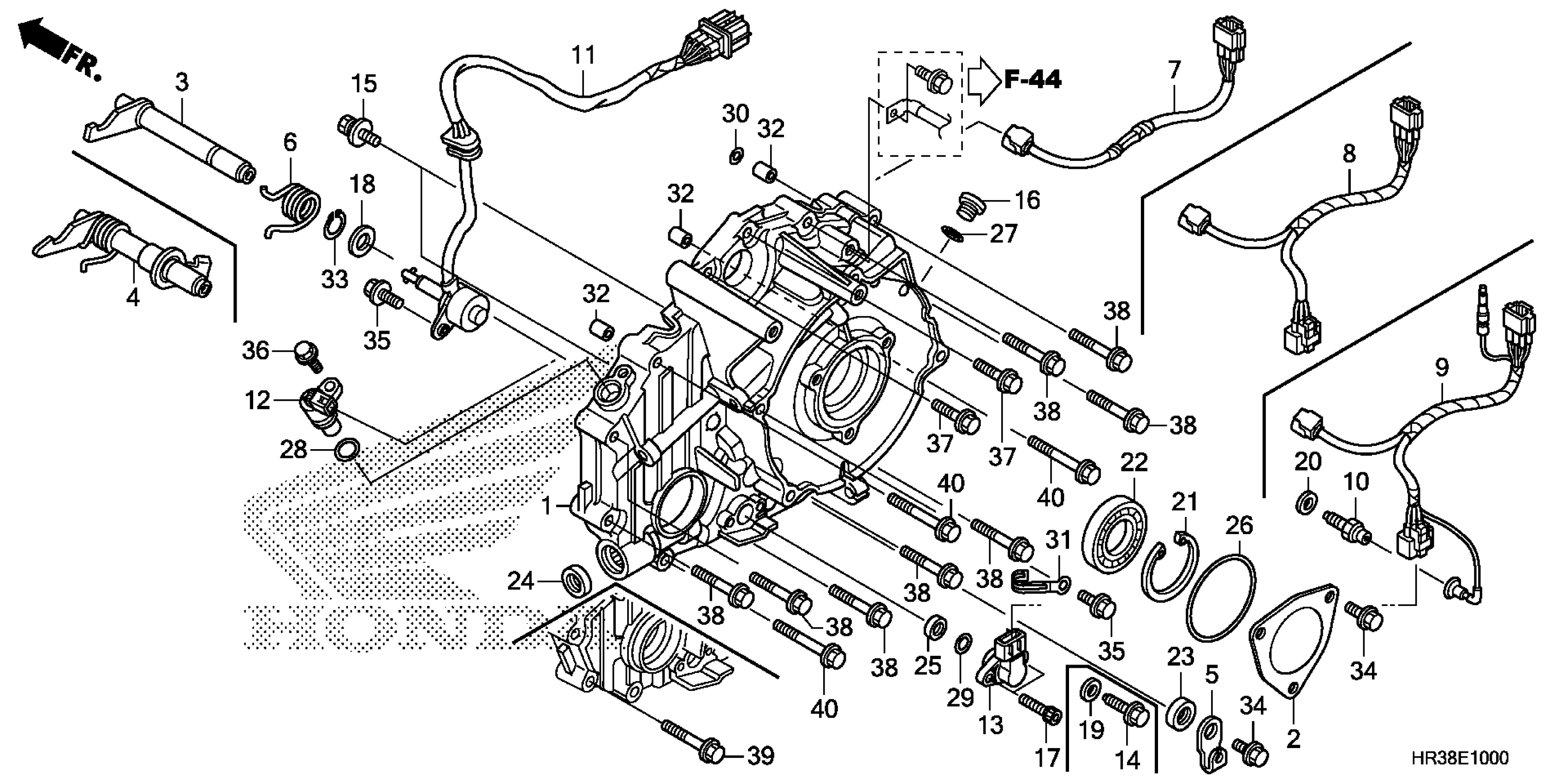

Honda TRX420TE1AC (16) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE392-G4200001 REAR CRANKCASE COVER Diagram

COVER, RR. CRANKCASE This part replaces 11340-HR3-A40.

11340-HR3-A41

$156.46

COVER, RR. CRANKCASE

11340-HR3-A41

$156.46

CAP, RR. COVER

11342-HP5-600

$3.06

SHAFT A, REVERSE STOPPER

24860-HP5-000

$22.05

LEVER, REVERSE STOPPER

24865-HP5-600

$4.76

SPRING, REVERSE STOPPER

24867-HP5-600

$4.16

SUB-HARNESS, ENGINE

32101-HR3-A40

$63.26

SWITCH ASSY., CHANGE

35759-HL5-A01

$37.23

SENSOR ASSY., SPEED (TDK-EPC) This part replaces 37700-HP5-601.

37700-KZR-601

$45.37

SENSOR ASSY., SPEED (TDK-EPC)

37700-KZR-601

$45.37

SENSOR ASSY., ANGLE

38800-HR3-A21

$27.06

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$5.12

CAP (14MM)

90084-KY2-000

$15.97

BOLT, SOCKET (5X20)

90116-HP5-600

$3.10

WASHER, THRUST (12MM)

90452-166-600

$2.39

CIRCLIP (INNER) (42MM)

90602-GFZ-000

$3.67

BEARING, RADIAL BALL (6806)

91015-HR0-F21

$17.55

OIL SEAL (12X22X5)

91201-965-000

$4.06

OIL SEAL (8X16X6) This part replaces 91208-MS2-611.

91254-792-003

$2.92

OIL SEAL (8X16X6) This part replaces 91208-689-005.

91254-792-003

$2.92

OIL SEAL (8X16X6)

91254-792-003

$2.92

O-RING (58X3)

91301-HR3-A40

$2.39

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

O-RING, ANGLE SENSOR

91308-HN0-A10

$2.72

O-RING (7.8X1.9) (NOK)

91313-MN5-004

$2.18

CLIP (2X70)

91413-679-000

$9.23

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.80

BOLT, FLANGE (6X50) (Honda Code 2410975)

95701-06050-00

$2.06
