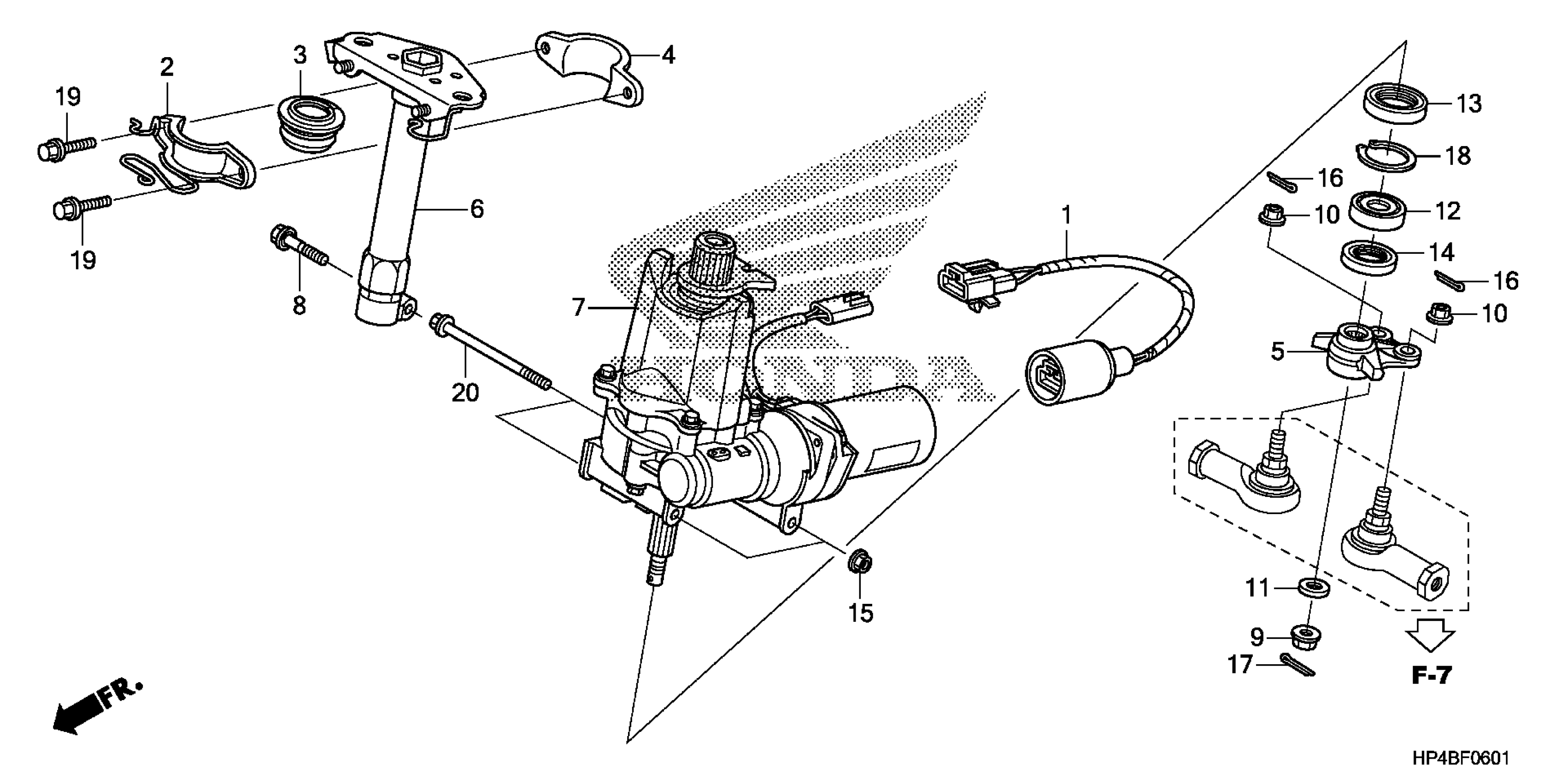

Honda TRX420FPE2A (12) RANCHER ES, USA, VIN# 1HFTE35M-C4500001 STEERING SHAFT (2) Diagram

#

Description
Price

1

SUB-HARNESS, EPS

32200-HP7-A30

$13.59

2

HOLDER, STEERING SHAFT

53220-HP5-600

$18.59

3

BUSH, STEERING

53221-HP0-B01

$16.70

4

HOLDER, STEERING SHAFT

53223-HP0-A00

$24.33

5

ARM, STEERING

53235-HP7-A30

Unavailable

6

SHAFT, STEERING

53310-HP7-A30

$75.23

7

EPS UNIT

53600-HP7-A30

$1,403.38

8

BOLT, FLANGE (10X39)

90103-HP7-A30

$3.47

9

NUT, SELF-LOCK (14MM)

90213-S73-003

$5.15

10

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.21

11

WASHER, THRUST (14MM)

90402-HA0-000

$3.76

12

BEARING, SELF-ALIGNING BALL

91051-HP0-B01

$37.07

13

DUST SEAL (38X54X7)

91251-HP0-B02

$7.70

14

DUST SEAL (27X40X5)

91252-HP0-B01

$5.83

15

NUT, FLANGE (8MM)

94050-08000

$1.49

16

PIN, SPLIT (2.0X22)

94201-20220

$1.49

16

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

16

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

16

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

16

PIN, SPLIT (2.0X35)

94201-20350

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

17

PIN, SPLIT (3.0X45)

94201-30450

$1.49

18

CIRCLIP (INNER) (47MM)

94521-47000

$2.39

19

BOLT, FLANGE (8X50)

95701-08050-07

$1.49

20

BOLT, FLANGE (8X100) (NOT AVAILABLE)

95801-08100-00

Unavailable
