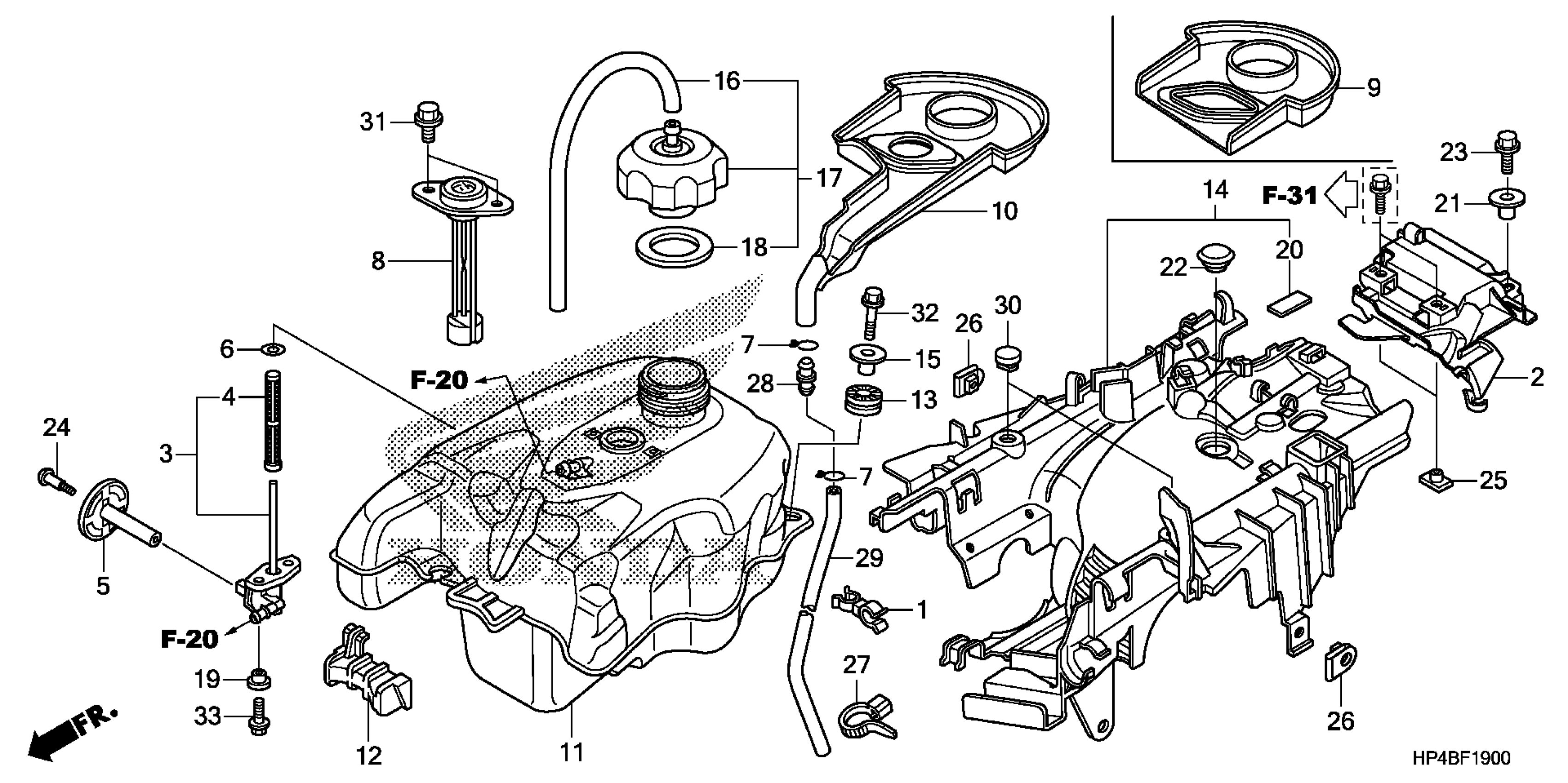

Honda TRX420FPE2A (12) RANCHER ES, USA, VIN# 1HFTE35M-C4500001 FUEL TANK Diagram

#

Description
Price

1

CLAMP, PIPE (15.5X13)

15617-ZN2-000

$1.93

2

COVER, THROTTLE BODY

16721-HP5-600

$16.71

3

PETCOCK ASSY.

16950-HP5-601

$80.74

4

SCREEN SET, FUEL STRAINER

16952-HP5-601

$25.92

5

LEVER, PETCOCK

16963-HP5-600

$21.72

6

O-RING (11.8X3.55)

16997-467-000

$2.01

7

CLIP, BREATHER TUBE

17316-611-000

$8.28

8

METER ASSY., FUEL

17504-HP5-601

$60.07

10

TRAY, FUEL TANK

17507-HP7-A30

$9.54

11

TANK, FUEL

17510-HP5-A10

Unavailable

12

RUBBER, FR. FUEL TANK MOUNTING

17511-HP5-600

$7.93

13

RUBBER, RR. FUEL TANK MOUNTING

17512-HP5-600

$4.07

14

PROTECTOR, TANK HEAT (LOWER)

17515-HP7-A30

$31.49

15

COLLAR, TANK SET

17517-HP5-600

$3.84

16

TUBE, FUEL CAP BREATHER

17521-429-000

$6.49

17

CAP ASSY., FUEL TANK

17620-HP5-600

Unavailable

18

GASKET, FUEL CAP

17624-HF7-000

$7.28

19

COLLAR, FUEL TANK SETTING

17626-467-000

$4.45

20

RUBBER, RADIATOR RESERVE

19121-HP1-600

$1.75

21

COLLAR, REGULATOR MOUNTING

33731-MJ0-940

$2.17

22

GROMMET, DRAIN HOLE (25MM)

82871-671-000

$4.15

23

BOLT, FLANGE (5X16)

90007-P6K-000

$1.94

24

SCREW, PETCOCK LEVER SETTING

90116-KY6-000

$4.70

25

NUT, SPECIAL (6X7)

90303-HA0-680

$3.57

26

NUT, AIR SPOILER CLIP

90305-SH3-000

$6.02

26

NUT, AIR SPOILER CLIP This part replaces 90323-SE0-000.

90305-SH3-000

$6.02

26

NUT, AIR SPOILER CLIP This part replaces 90323-SE1-000.

90305-SH3-000

$6.02

27

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

28

JOINT, TUBE

91463-393-780

$1.64

29

BULK HOSE, VACUUM (12X1000) (12X630)

95005-12001-50M

Unavailable

30

RUBBER C, STAND STOPPER

95011-63000

$3.64

31

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

32

BOLT, FLANGE (6X30)

95701-06030-00

$1.71

33

BOLT, FLANGE (6X16)

96001-06016-00

$0.96
