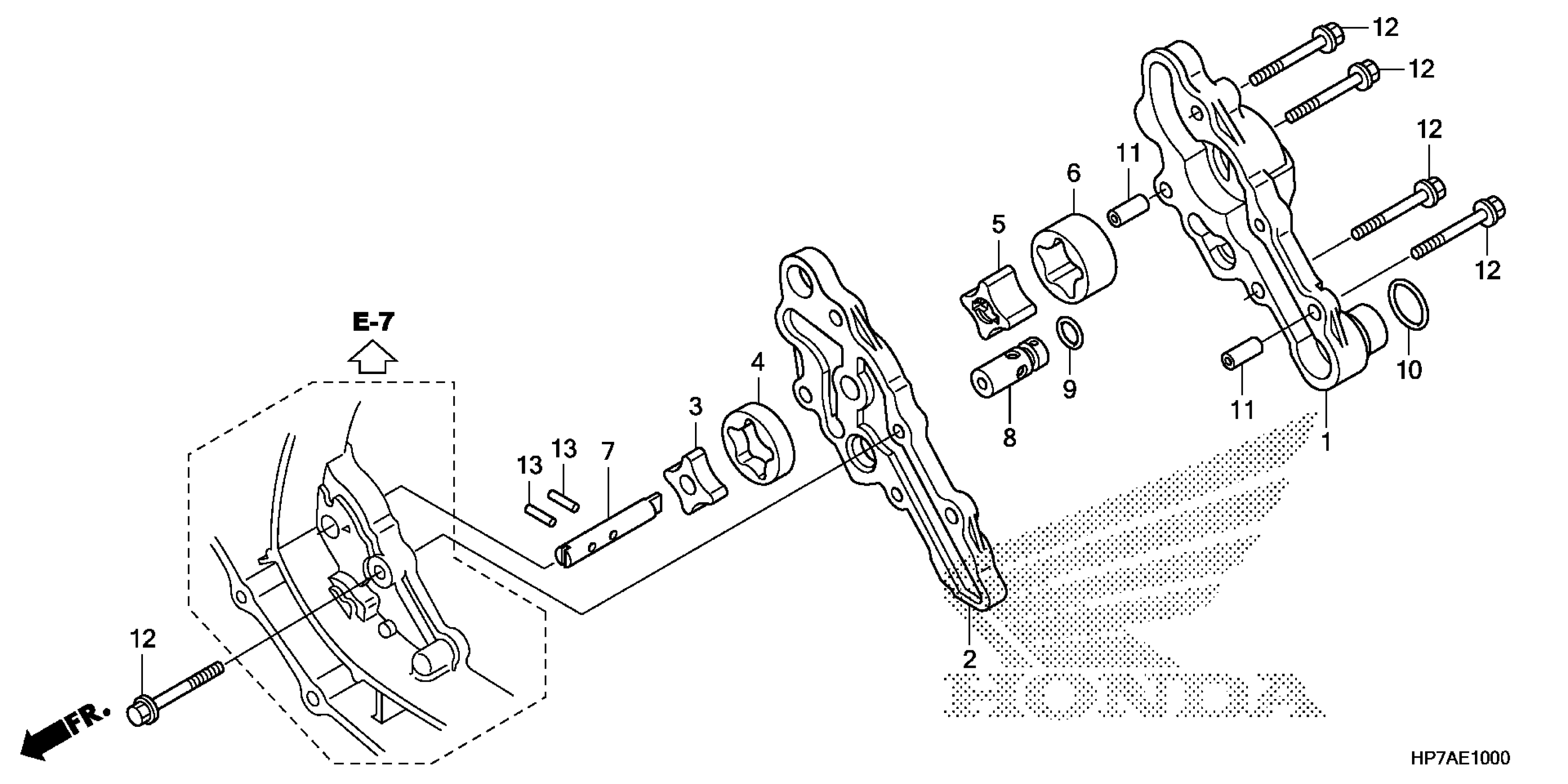

Honda TRX420FPAAC (14) TRX420FPA, USA, VIN# 1HFTE372-E4500001 OIL PUMP Diagram

BODY A, OIL PUMP

15101-HP7-A00

$22.65

BODY B, OIL PUMP

15102-HP7-A00

$12.56

ROTOR A, OIL PUMP (INNER)

15122-HN2-003

$19.89

ROTOR A, OIL PUMP (OUTER)

15123-HN2-003

$21.93

ROTOR C, OIL PUMP (INNER)

15128-HP7-A01

$9.22

ROTOR C, OIL PUMP (OUTER)

15129-HP7-A01

$14.88

SHAFT, OIL PUMP

15132-HP7-A00

$10.94

VALVE ASSY., RELIEF

15220-HP7-A00

$18.13

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

O-RING (14.8X2.2) (Honda Code 3353620)

91313-MG7-004

$3.67

O-RING (21.2X2.4) (ARAI)

91331-PC9-003

$3.13

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.25

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.80

ROLLER (4X15.8)

96220-40158

$1.49
