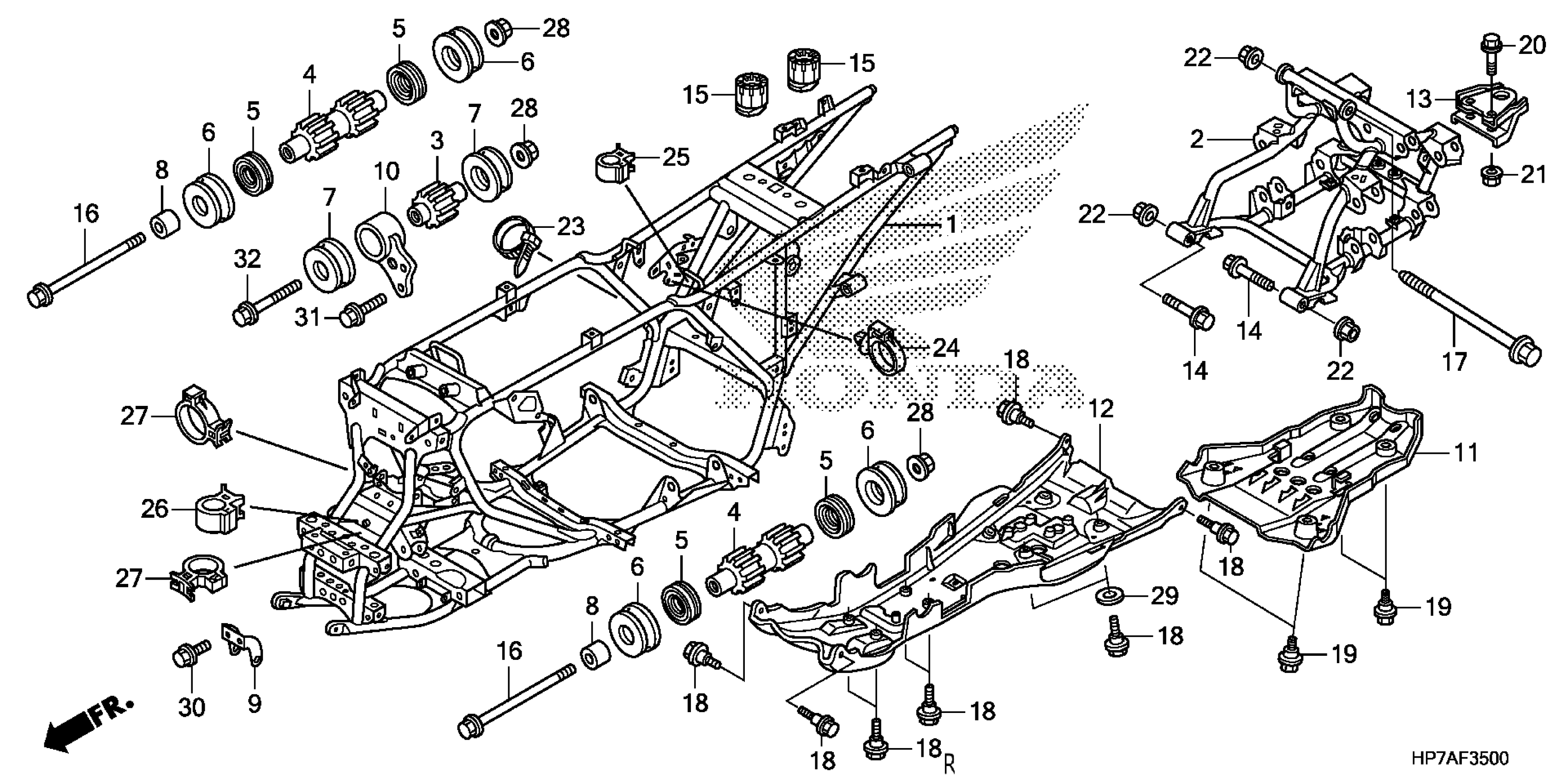

Honda TRX420FPAAC (14) TRX420FPA, USA, VIN# 1HFTE372-E4500001 FRAME Diagram

#

Description
Price

1

FRAME

50100-HP7-A30

$1,153.85

2

FRAME, RR. INDEPENDENT SUSPENSION

50200-HP7-A00

$302.90

3

RUBBER, ENGINE HEAD MOUNTING

50201-HP5-600

$9.76

4

RUBBER, ENGINE MOUNTING (LOWER)

50202-HP0-A50

$25.21

5

DUST SEAL, ENGINE MOUNTING

50203-HM7-003

$20.39

6

RUBBER C, MOUNTING

50204-HM8-000

$6.98

7

RUBBER C, MOUNTING

50204-HP5-600

$6.81

8

COLLAR, ENGINE HANGER

50205-HM8-000

$8.16

9

BRACKET, FR. GEAR CASE

50350-HP7-A00

$4.54

10

BRACKET, HEAD HANGER

50351-HP5-600

$10.40

11

SKID, RR. GEAR CASE

50355-HP7-A00

$20.17

12

GUARD, ENGINE

50360-HP5-601

$167.26

13

HITCH, TRAILER

50810-HN8-000

$68.00

14

BOLT, SWINGARM PIVOT

52101-HP5-600

$6.01

15

CUSHION, SEAT MOUNTING

77207-HA0-000

$7.14

16

BOLT, ENGINE HANGER (10X148)

90103-147-000

$12.74

17

BOLT, FLANGE (12X210)

90104-HP7-A00

$18.74

18

BOLT, FLANGE (6MM)

90111-147-000

$2.75

19

BOLT, FLANGE (6MM)

90111-187-000

$5.59

20

BOLT, FLANGE (10X55) BOLT, FLANGE (10X50)

90120-HC4-000

$6.46

21

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

22

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.21

23

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

24

CLAMP, HARNESS

90652-HC4-003

$5.95

25

CLIP, CABLE (10MM) CLIP, CABLE (8MM)

90690-GHB-641

$2.18

26

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

27

CLIP, CABLE (30MM)

90690-GHB-681

$2.92

28

NUT, FLANGE (10MM)

94050-10000

$1.59

29

WASHER, PLAIN (8MM)

94103-08800

$1.49

30

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

31

BOLT, FLANGE (8X22)

95701-08022-00

$2.16

32

BOLT, FLANGE (10X60)

95701-10060-00

$2.03
