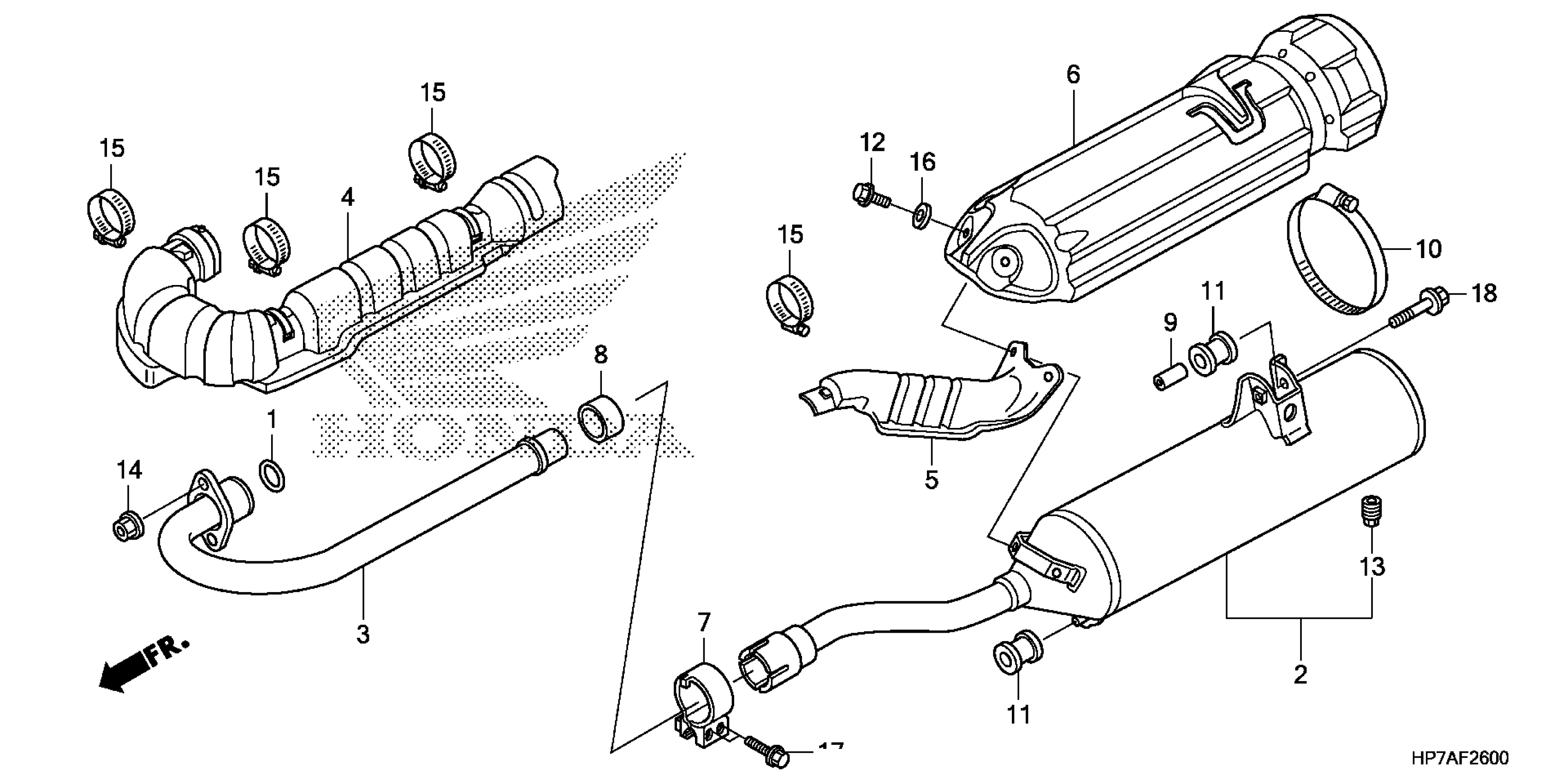

Honda TRX420FPAAC (14) TRX420FPA, USA, VIN# 1HFTE372-E4500001 EXHAUST MUFFLER Diagram

GASKET, EX. PIPE

18291-MN4-920

$5.31

MUFFLER

18310-HP7-A01

$293.16

PIPE, EX.

18320-HP7-A00

$120.48

COVER, EX. PIPE

18321-HP7-A00

Unavailable

COVER, FR. MUFFLER

18322-HP5-601

$38.36

COVER, MUFFLER

18323-HP5-602

$139.06

BAND, MUFFLER

18373-HA7-671

$20.80

GASKET, MUFFLER

18391-HM7-A00

$12.66

COLLAR, MUFFLER MOUNTING

18422-HP5-600

$23.34

BAND, MUFFLER COVER (89-140MM) This part replaces 19084-HP0-A50.

19084-HR6-B00

$4.90

RUBBER, MUFFLER MOUNTING

50608-HM7-000

$4.96

BOLT, FLANGE (6X12)

90011-750-801

$1.49

BOLT, ARRESTER

90183-HM5-850

$2.57

NUT, FLANGE (8MM)

90301-HM8-000

$2.70

BAND, AIR CLEANER CONNECTING TUBE (38)

90638-HN7-000

$4.25

WASHER, PLAIN (6MM)

94103-06000

$1.49

BOLT, FLANGE (8X35)

95701-08035-08

$1.49

BOLT, FLANGE (8X50)

95701-08050-08

$2.28
