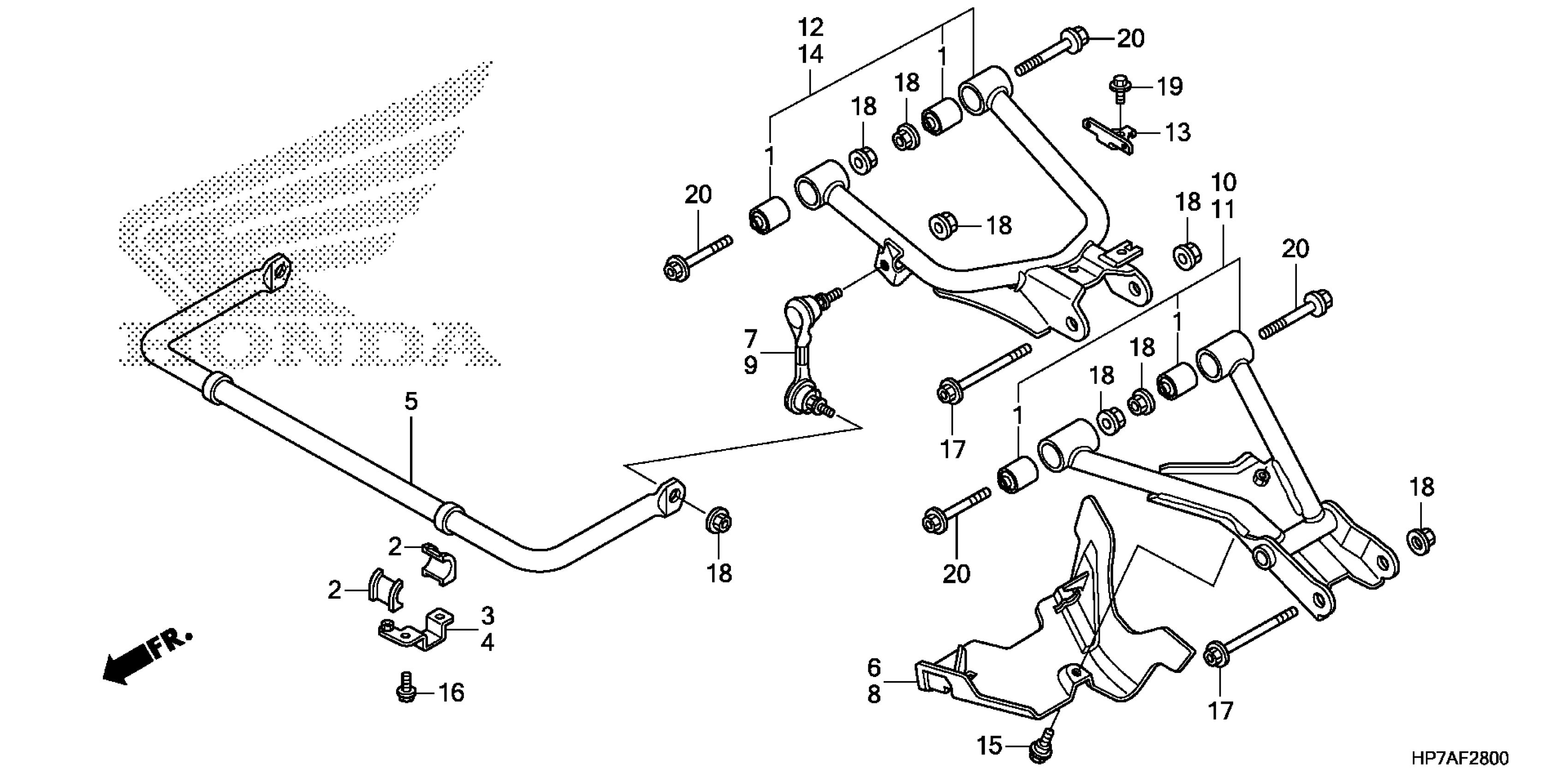

Honda TRX420FPAA (12) RANCHER AT, USA, VIN# 1HFTE372-C4300001 TO 1HFTE372-C4399999 REAR ARM Diagram

BUSH, FR. ARM (OUTER)

51393-HC4-003

$25.21

BUSH, RR. STABILIZER

52307-HP7-A01

$7.44

HOLDER, R. STABILIZER BUSH

52308-HP7-A00

$45.97

HOLDER, L. STABILIZER BUSH

52309-HP7-A00

$45.97

SPRING, RR. STABILIZER (22.2MMXT2.6)

52310-HP7-A01

$62.57

GUARD, R. RR. BOOT

52315-HP7-A00

$51.67

LINK, R. RR. STABILIZER

52320-HP7-A01

$18.54

GUARD, L. RR. BOOT

52325-HP7-A00

$11.57

LINK, L. RR. STABILIZER

52330-HP7-A01

$18.54

ARM ASSY., R. RR. (LOWER)

52350-HP7-A00

$169.97

ARM ASSY., L. RR. (LOWER)

52360-HP7-A00

$231.29

ARM ASSY., R. RR. (UPPER)

52370-HP7-A50

$142.03

SCRAPER, RR. ARM (UPPER)

52375-HP7-A00

$3.99

ARM ASSY., L. RR. (UPPER)

52380-HP7-A50

Unavailable

BOLT, FLANGE (6MM)

90111-KT1-780

$13.05

BOLT, FLANGE (8X16)

90123-KV0-000

$4.19

BOLT, FLANGE (10X100)

90188-MG7-003

$9.99

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

BOLT, FLANGE (10X62) BOLT, FLANGE (10X65)

90151-HC5-000

$7.22

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.22
