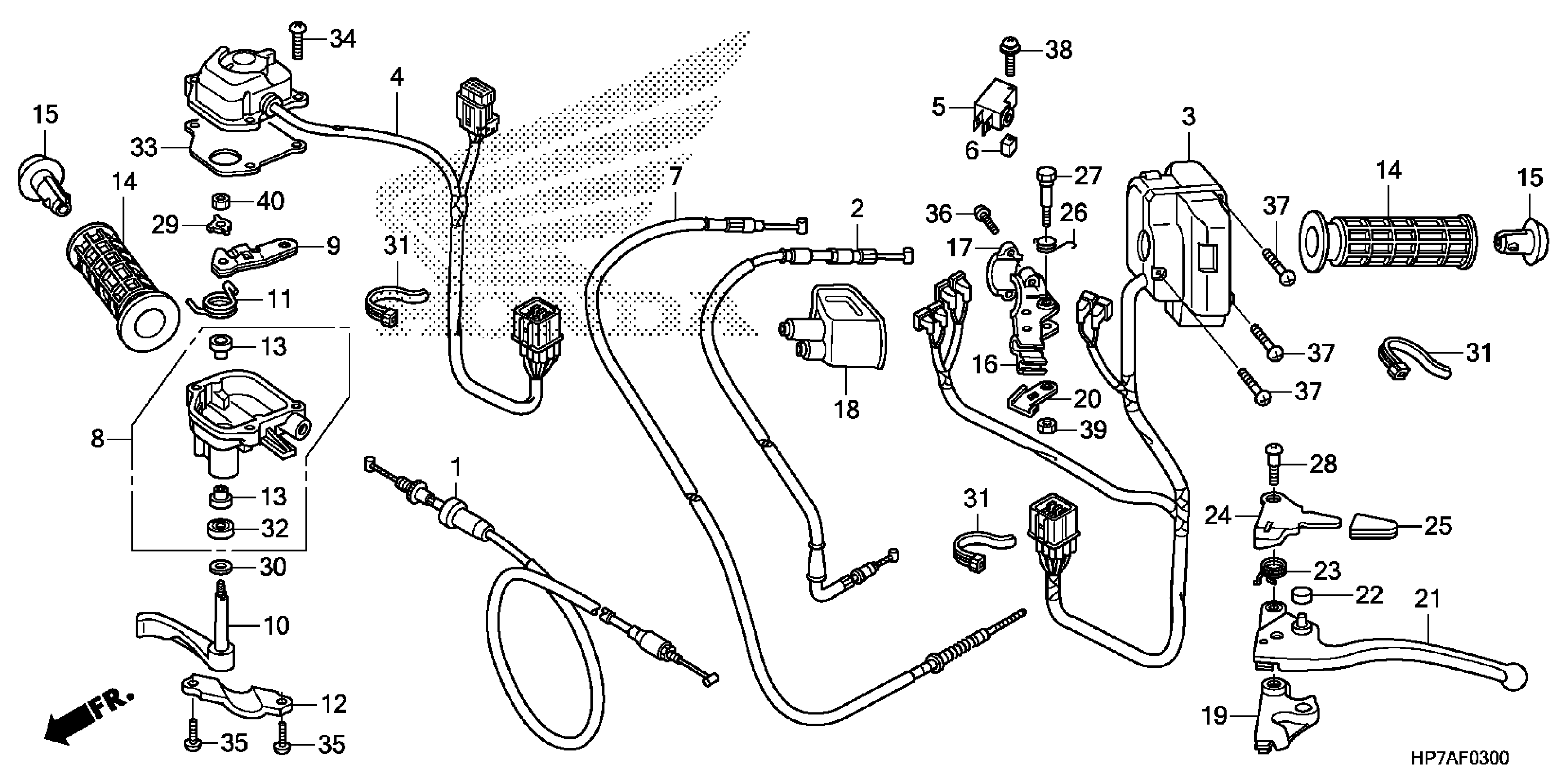

Honda TRX420FPAA (12) RANCHER AT, USA, VIN# 1HFTE372-C4300001 TO 1HFTE372-C4399999 HANDLE LEVER@SWITCH@CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HP7-A30

$34.26

2

CABLE, REVERSE ASSIST

22880-HR0-F01

$12.86

3

SW, ELECTRIC SHIFT This part replaces 35140-HP7-A01.

35140-HP7-A03

$73.87

3

SW, ELECTRIC SHIFT This part replaces 35140-HP7-A02.

35140-HP7-A03

$73.87

4

SWITCH ASSY., MODE SELECT

35300-HP7-A01

$140.87

5

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$18.57

5

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

6

COLLAR, STOP SWITCH

35345-HF1-830

$6.01

7

CABLE, HAND BRAKE

43460-HP7-A01

$17.09

8

CASE ASSY., THROTTLE LEVER

53143-HP5-L00

$111.39

9

ARM, THROTTLE

53144-HA0-010

$7.72

10

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$24.05

11

SPRING, THROTTLE RETURN

53146-HM8-000

$3.10

12

HOLDER, THROTTLE CASE

53147-HM5-850

$3.71

13

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

14

GRIP, HANDLE

53165-HP5-600

$3.83

15

GUARD, HANDLE END

53167-HP5-600

$2.33

16

BRACKET, BRAKE LEVER

53172-HN5-M50

$18.11

17

HOLDER, LEVER BRACKET

53173-376-000

$10.95

18

COVER, L. HANDLE

53177-HN5-M40

$6.45

19

ARM, REVERSE ASSISTANT

53179-HA6-000

$15.17

20

HOLDER, STOP SWITCH SUB CORD

53179-HN5-M40

$2.02

21

LEVER, RR. BRAKE

53180-HA8-770

$29.38

22

CAP, REVERSE PIN

53187-VM6-000

$3.89

23

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

24

LEVER, PARKING BRAKE LOCK

53192-HN0-A00

$12.96

25

CAP, PARKING LEVER

53193-HA0-770

$6.16

26

SPRING, PARKING LEVER RETURN

53193-HN5-C20

$3.10

27

BOLT, HANDLE LEVER PIVOT

90114-HM8-000

$9.20

28

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$4.08

29

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

30

WASHER (9X20)

90504-HA0-000

$2.28

31

BAND, WIRE HARNESS

90651-MA6-720

$3.73

32

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

32

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

33

GASKET, THROTTLE CASE

91532-HN8-000

$3.15

34

SCREW, PAN (4X16)

93500-04016-0G

$1.49

35

SCREW, PAN (5X14)

93500-05014-0G

$3.67

36

SCREW, PAN (5X18)

93500-05018-0G

$1.49

37

SCREW, PAN (5X28)

93500-05028-0G

$1.49

38

SCREW-WASHER (4X20)

93893-04020-07

$1.49

39

NUT, HEX. (6MM)

94001-06070-0S

$1.49

40

NUT, HEX. (6MM)

94002-06000-0S

$1.49
