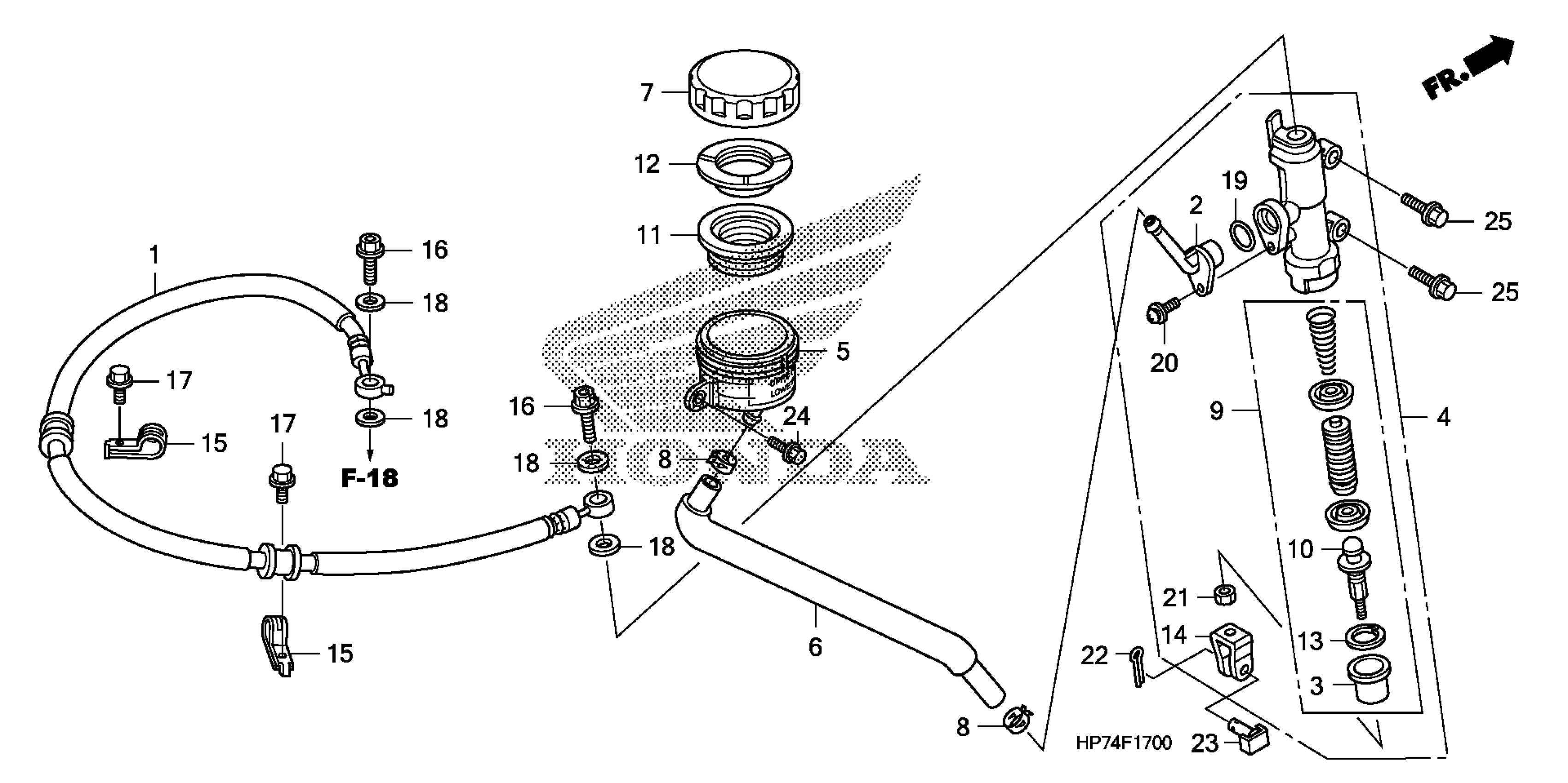

Honda TRX420FPAA (11) FOURTRAX RANCHER AT, USA, VIN# 1HFTE372-B4200001 TO 1HFTE372-B4299999 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-HP7-A01

Unavailable

2

CONNECTOR, MASTER CYLINDER (NISSIN)

43503-MN5-006

$13.19

3

BOOT

43504-MB2-006

$9.01

4

MASTER CYLINDER SUB-ASSY., RR. BRAKE

43510-HP7-A01

$45.51

5

CUP, OIL (NISSIN)

43511-MR7-016

$29.55

6

HOSE, RR. BRAKE MASTER CYLINDER

43512-HP7-A01

$5.06

7

CAP, OIL CUP

43513-MY1-006

$26.39

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

9

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MG9-315

$54.74

10

ROD, PUSH

43530-KZ4-J21

Unavailable

11

DIAPHRAGM

45520-300-000

$8.13

12

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

13

CIRCLIP

46182-MEL-D21

$1.77

14

JOINT, BRAKE ROD

46504-MT8-006

$8.25

15

CLAMP A, FR. BRAKE HOSE

51207-HN2-000

$1.32

16

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

17

BOLT, FLANGE (6X12)

90181-KV3-700

$1.41

18

WASHER, OIL BOLT

90545-300-000

$3.72

19

O-RING (14.8X2.4)

91212-422-006

Unavailable

20

SCREW-WASHER (4X12)

93893-04012-07

$1.22

20

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

21

NUT, HEX. (8MM)

94002-08000-0S

$1.19

22

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$0.94

22

PIN, COTTER (2.0X22) PIN, COTTER (2.0X25)

94201-20220

$0.94

22

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$0.94

22

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$0.94

22

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$0.94

22

PIN, COTTER (2.0X35) PIN, COTTER (2.0X22)

94201-20350

$0.94

22

PIN, COTTER (2.0X22)

94201-29220

$0.94

23

PIN D, JOINT

95015-54000

$3.95

24

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

25

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.61
